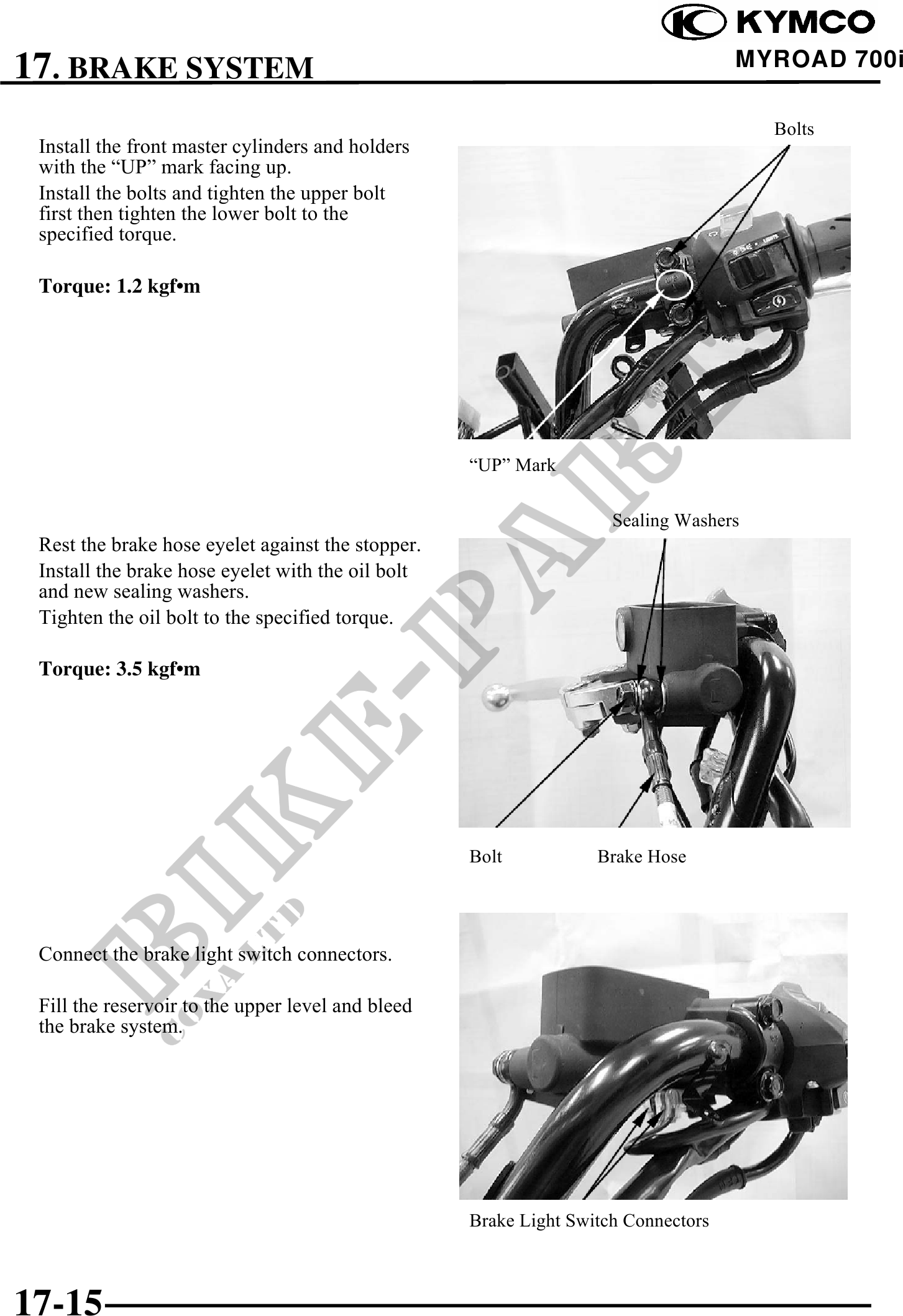

17. BRAKE SYSTEM MYROAD 700i
Bolts
Install the front master cylinders and holders
with the "UP" mark facing up.
Install the bolts and tighten the upper bolt
first then tighten the lower bolt to the
specified torque.
Torque: 1.2 kgf·m
"UP" Mark
Sealing Washers
Rest the brake hose eyelet against the stopper.
Install the brake hose eyelet with the oil bolt
and new sealing washers.
Tighten the oil bolt to the specified torque.
Torque: 3.5 kgf·m
Bolt Brake Hose
Connect the brake light switch connectors.
Fill the reservoir to the upper level and bleed
the brake system.
Brake Light Switch Connectors
17-15
