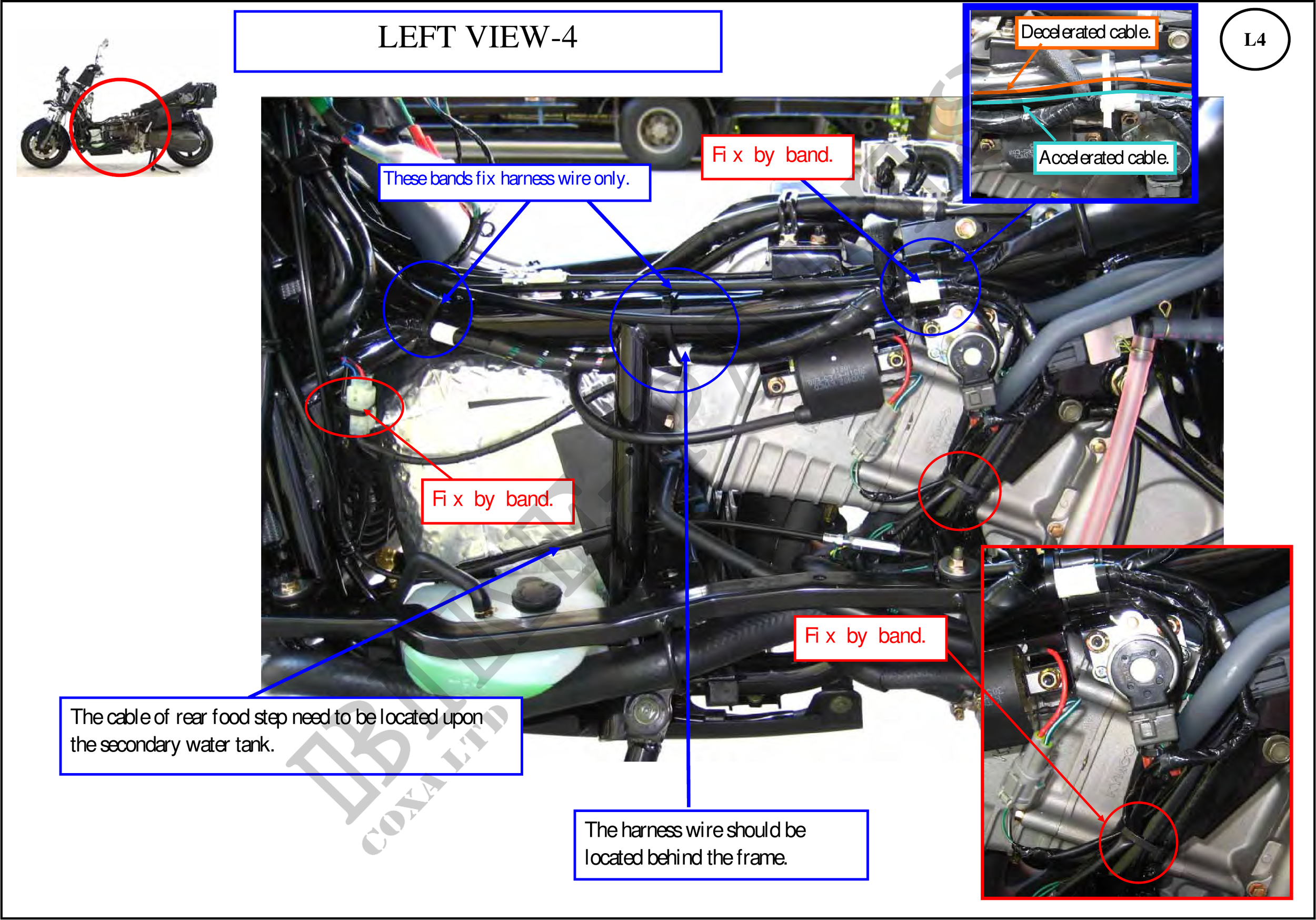

                                                LEFT VIEW-4                                                            Decelerated cable.     L4




                                                                                Fix by band.                   Accelerated cable.
                                      These bands fix harness wire only.




                                            Fix by band.




                                                                                              Fix by band.


The cable of rear food step need to be located upon
the secondary water tank.



                                                                 The harness wire should be
                                                                 located behind the frame.
