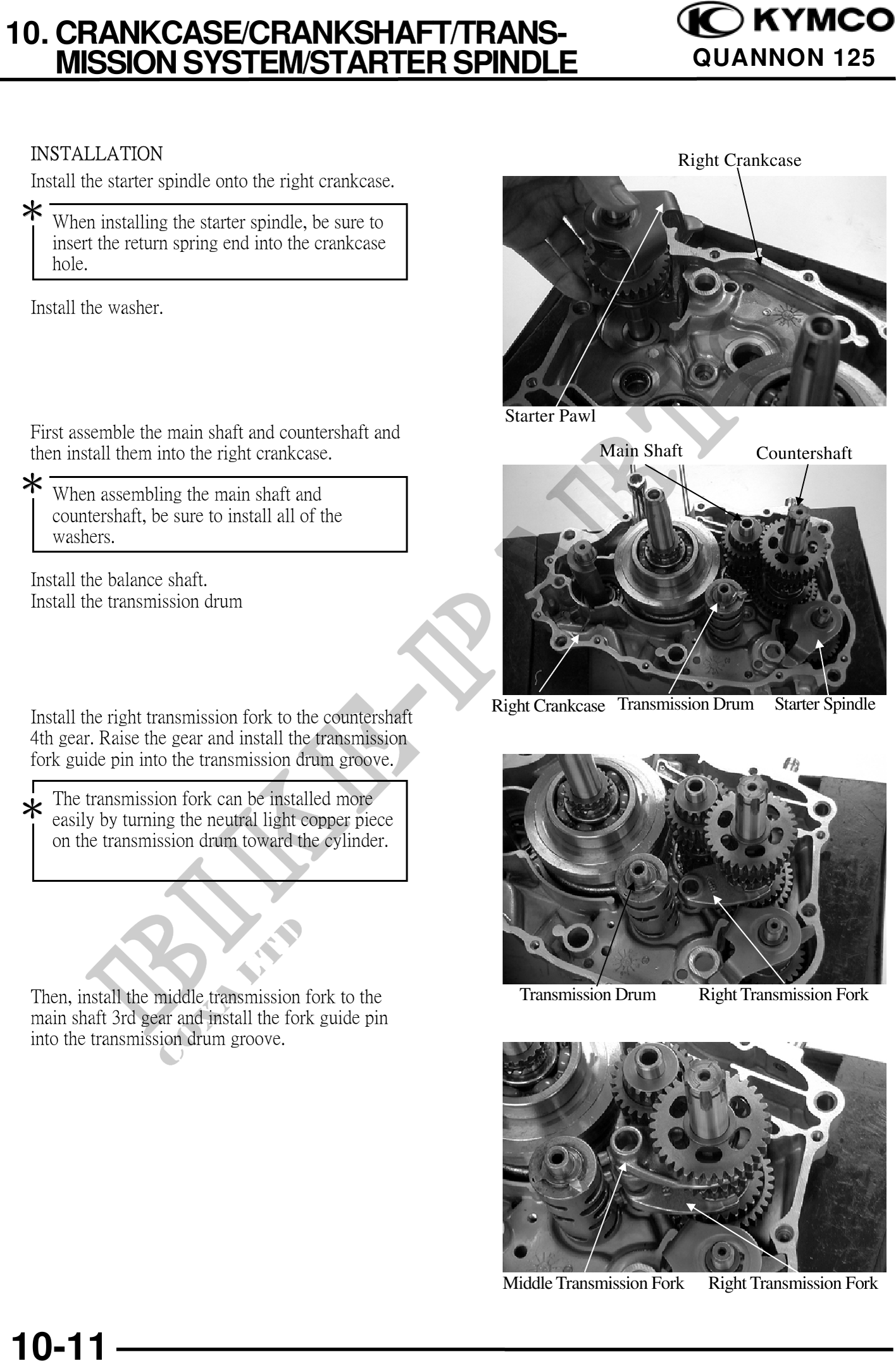

10. CRANKCASE/CRANKSHAFT/TRANS-
MISSION SYSTEM/STARTER SPINDLE QUANNON 125
INSTALLATION Right Crankcase
Install the starter spindle onto the right crankcase.
When installing the starter spindle, be sure to
insert the return spring end into the crankcase
hole.
Install the washer.
Starter Pawl
First assemble the main shaft and countershaft and
then install them into the right crankcase. Main Shaft Countershaft
When assembling the main shaft and
countershaft, be sure to install all of the
washers.
Install the balance shaft.
Install the transmission drum
Right Crankcase Transmission Drum Starter Spindle
Install the right transmission fork to the countershaft
4th gear. Raise the gear and install the transmission
fork guide pin into the transmission drum groove.
The transmission the neutral light copper piece
easily by turning
fork can be installed more
on the transmission drum toward the cylinder.
Then, install the middle transmission fork to the Transmission Drum Right Transmission Fork
main shaft 3rd gear and install the fork guide pin
into the transmission drum groove.
Middle Transmission Fork Right Transmission Fork
10-11
