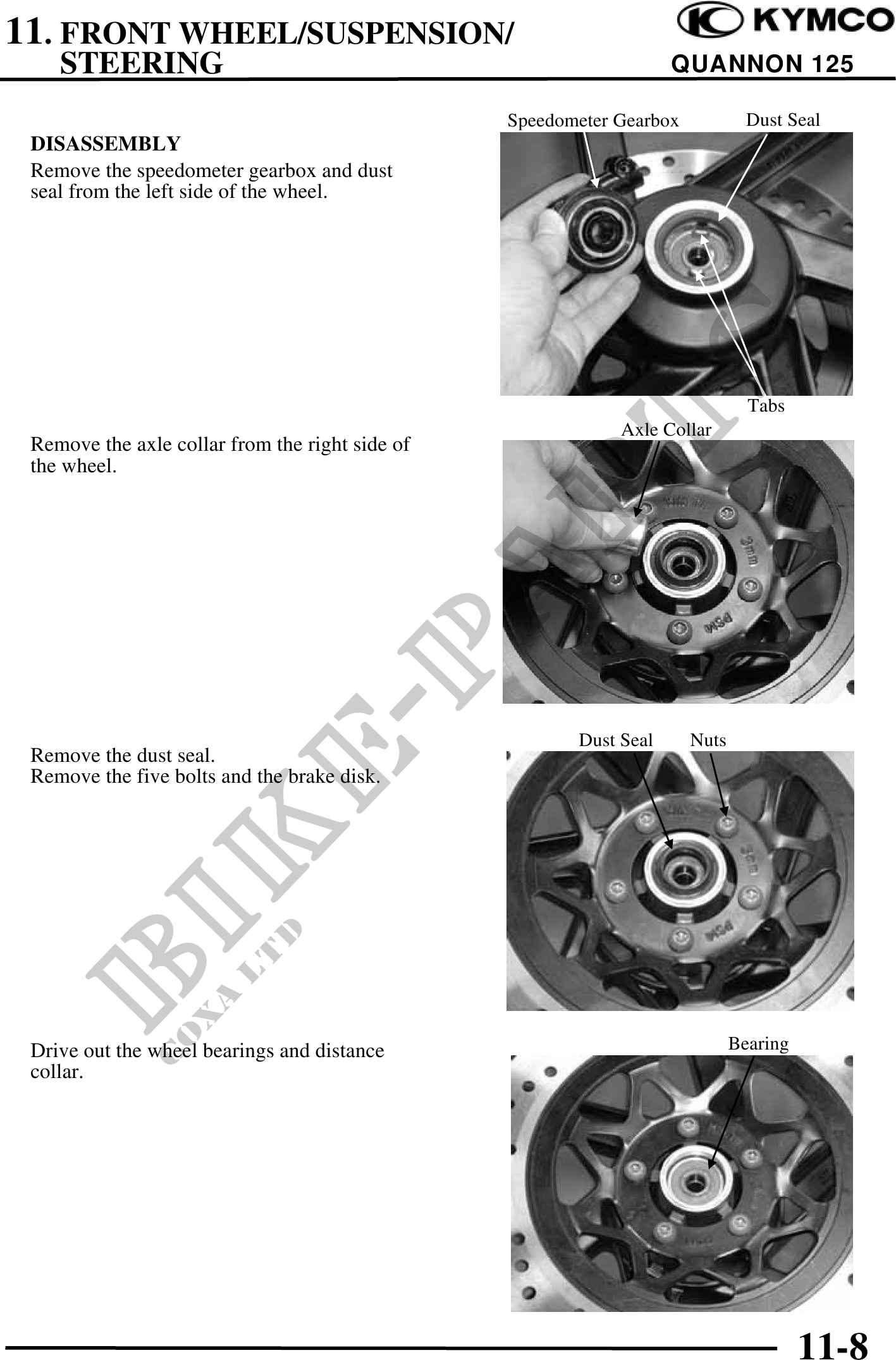

11. FRONT WHEEL/SUSPENSION/
STEERING QUANNON 125
Speedometer Gearbox Dust Seal
DISASSEMBLY
Remove the speedometer gearbox and dust
seal from the left side of the wheel.
Tabs
Axle Collar
Remove the axle collar from the right side of
the wheel.
Dust Seal Nuts
Remove the dust seal.
Remove the five bolts and the brake disk.
Drive out the wheel bearings and distance Bearing
collar.
11-8
