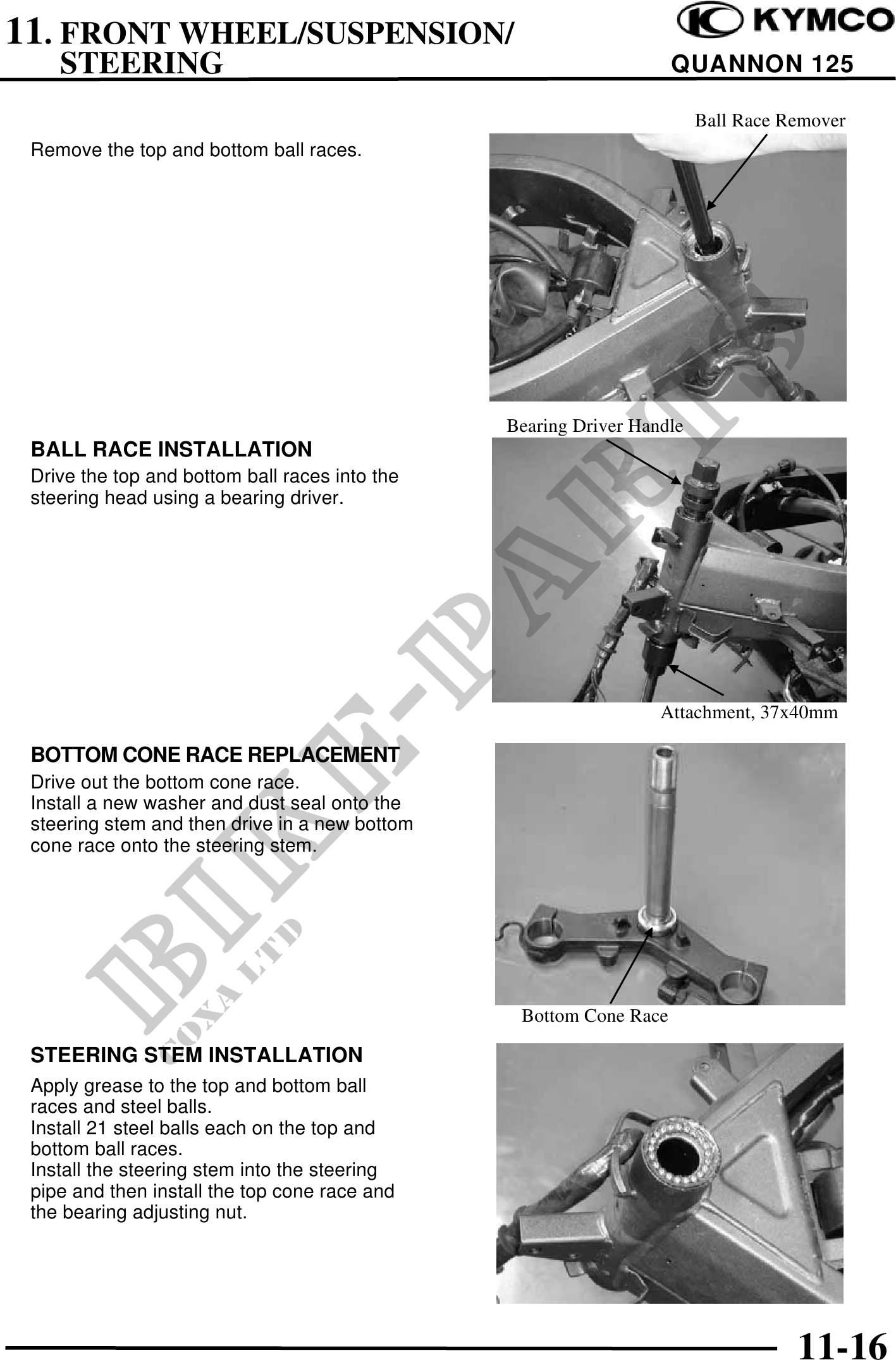

11. FRONT WHEEL/SUSPENSION/
STEERING QUANNON 125
Ball Race Remover
Remove the top and bottom ball races.
Bearing Driver Handle
BALL RACE INSTALLATION
Drive the top and bottom ball races into the
steering head using a bearing driver.
Attachment, 37x40mm
BOTTOM CONE RACE REPLACEMENT
Drive out the bottom cone race.
Install a new washer and dust seal onto the
steering stem and then drive in a new bottom
cone race onto the steering stem.
Bottom Cone Race
STEERING STEM INSTALLATION
Apply grease to the top and bottom ball
races and steel balls.
Install 21 steel balls each on the top and
bottom ball races.
Install the steering stem into the steering
pipe and then install the top cone race and
the bearing adjusting nut.
11-16
