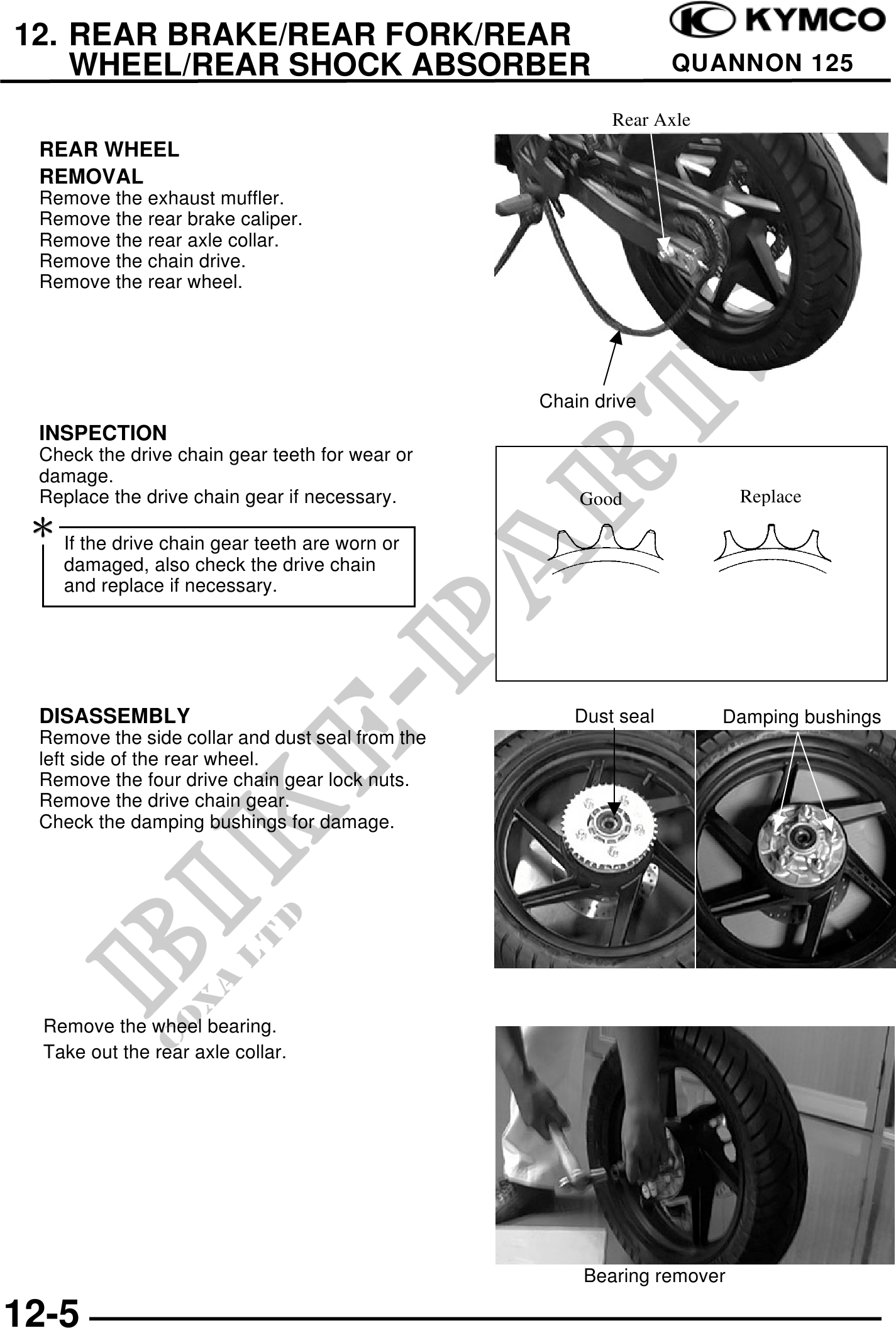

          12. REAR BRAKE/REAR FORK/REAR
    WHEEL/REAR SHOCK ABSORBER                                    QUANNON 125

                                                          Rear Axle
  REAR WHEEL
  REMOVAL
  Remove the exhaust muffler.
  Remove the rear brake caliper.
  Remove the rear axle collar.
  Remove the chain drive.
  Remove the rear wheel.




                                                  Chain drive
  INSPECTION
  Check the drive chain gear teeth for wear or
  damage.
  Replace the drive chain gear if necessary.          Good               Replace
  If the drive chain gear teeth are worn or
     damaged, also check the drive chain
     and replace if necessary.




  DISASSEMBLY                                        Dust seal        Damping bushings
  Remove the side collar and dust seal from the
  left side of the rear wheel.
  Remove the four drive chain gear lock nuts.
  Remove the drive chain gear.
  Check the damping bushings for damage.




  Remove the wheel bearing.
  Take out the rear axle collar.




                                                       Bearing remover

12-5
