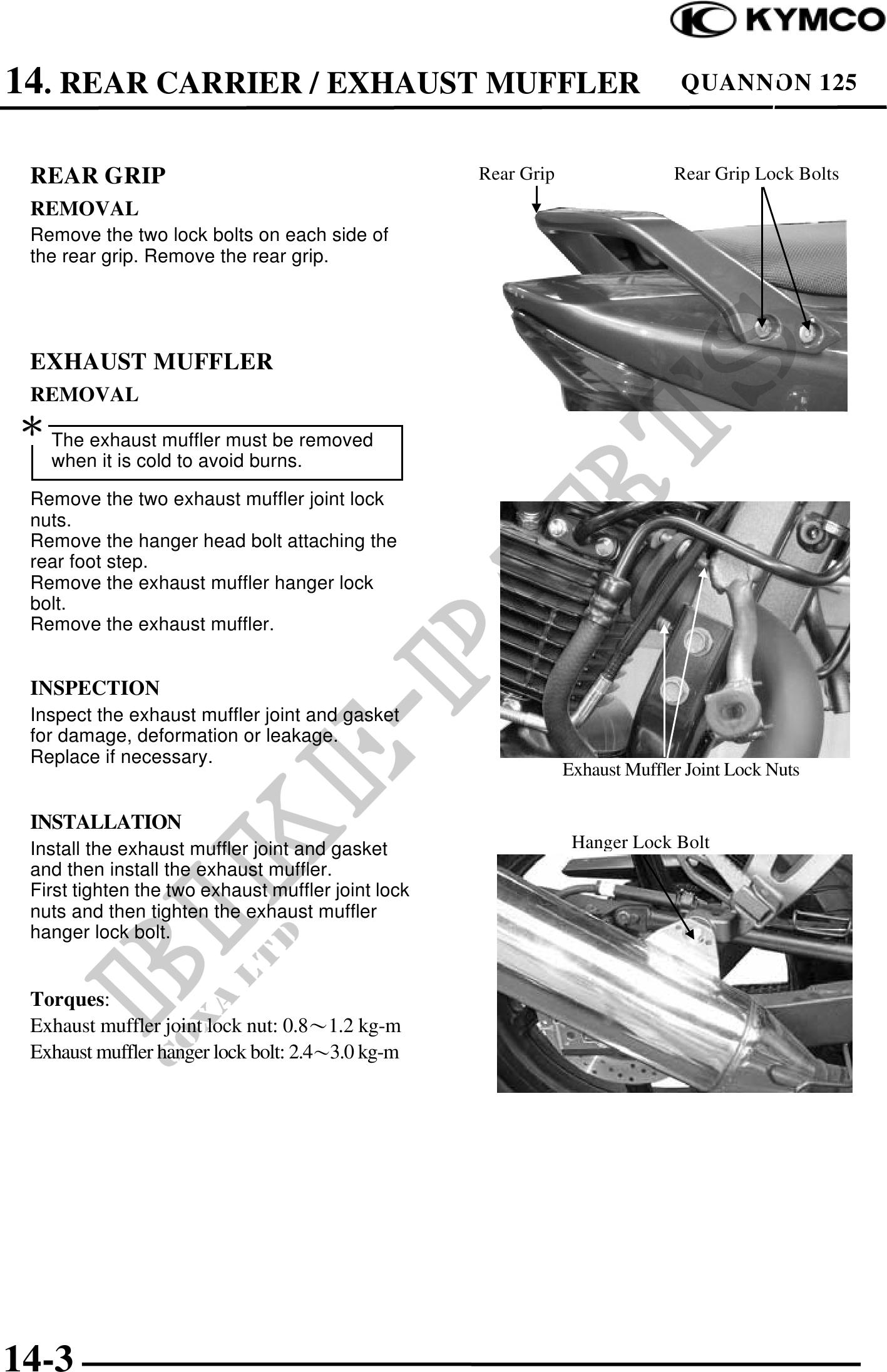

          14. REAR CARRIER / EXHAUST MUFFLER                                             QUANNON 125


 REAR GRIP                                          Rear Grip                 Rear Grip Lock Bolts
 REMOVAL
 Remove the two lock bolts on each side of
 the rear grip. Remove the rear grip.




 EXHAUST MUFFLER
 REMOVAL
 The exhaust muffler must be removed
   when it is cold to avoid burns.
 Remove the two exhaust muffler joint lock
 nuts.
 Remove the hanger head bolt attaching the
 rear foot step.
 Remove the exhaust muffler hanger lock
 bolt.
 Remove the exhaust muffler.


 INSPECTION
 Inspect the exhaust muffler joint and gasket
 for damage, deformation or leakage.
 Replace if necessary.
                                                                Exhaust Muffler Joint Lock Nuts

 INSTALLATION
 Install the exhaust muffler joint and gasket                    Hanger Lock Bolt
 and then install the exhaust muffler.
 First tighten the two exhaust muffler joint lock
 nuts and then tighten the exhaust muffler
 hanger lock bolt.


 Torques:
 Exhaust muffler joint lock nut: 0.81.2 kg-m
 Exhaust muffler hanger lock bolt: 2.43.0 kg-m




14-3
