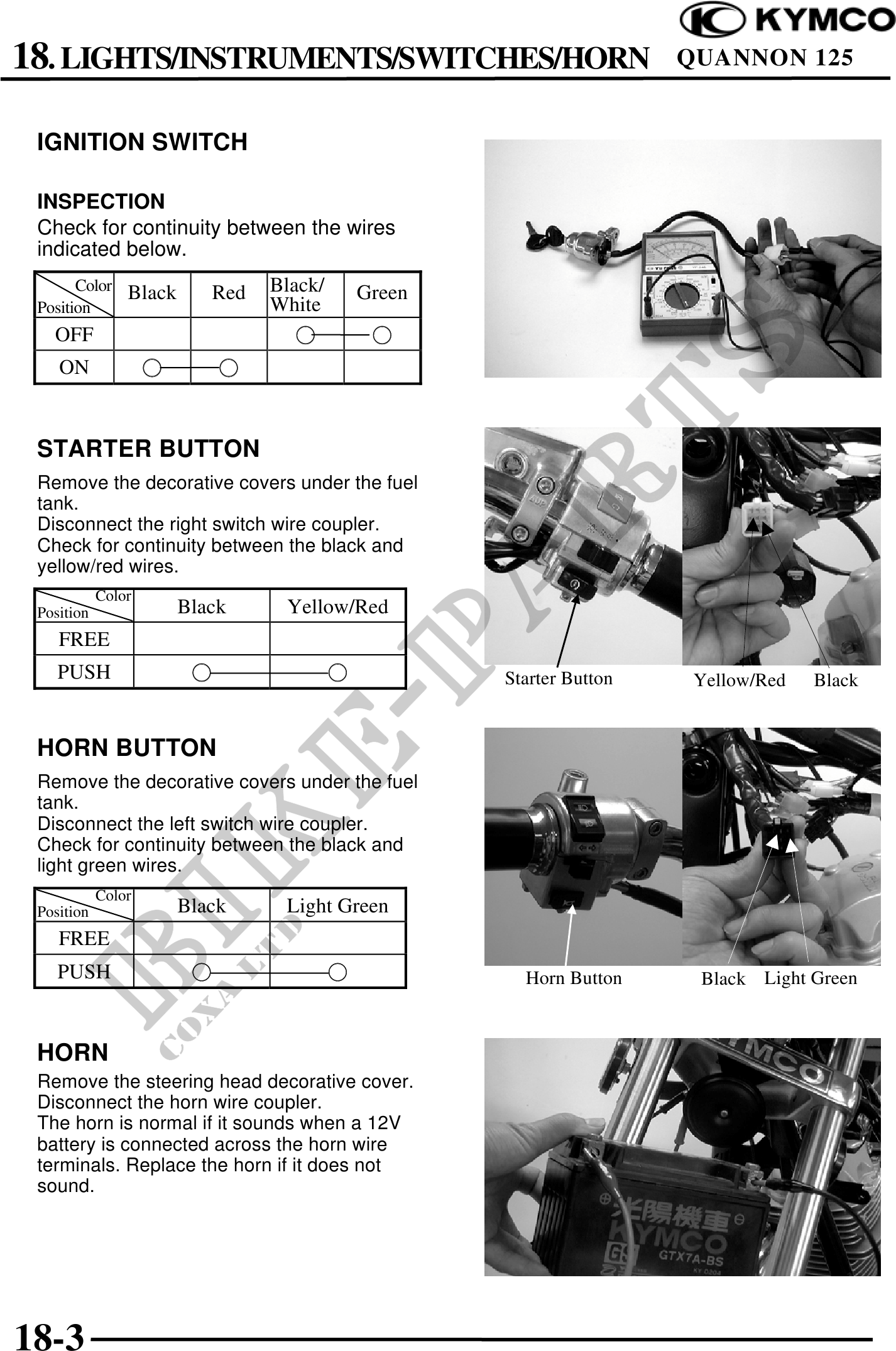

          18. LIGHTS/INSTRUMENTS/SWITCHES/HORN                                 QUANNON 125


 IGNITION SWITCH

 INSPECTION
 Check for continuity between the wires
 indicated below.
       Color Black        Red   Black/      Green
 Position                       White
   OFF
    ON


 STARTER BUTTON
                                                                                   AC 110V
 Remove the decorative covers under the fuel
 tank.
 Disconnect the right switch wire coupler.
 Check for continuity between the black and
 yellow/red wires.
            Color
 Position              Black     Yellow/Red
    FREE
    PUSH                                            Starter Button    Yellow/Red     Black


 HORN BUTTON
 Remove the decorative covers under the fuel
 tank.
 Disconnect the left switch wire coupler.
 Check for continuity between the black and
 light green wires.
            Color
 Position              Black     Light Green
    FREE
    PUSH                                              Horn Button     Black Light Green


 HORN
 Remove the steering head decorative cover.
 Disconnect the horn wire coupler.
 The horn is normal if it sounds when a 12V
 battery is connected across the horn wire
 terminals. Replace the horn if it does not
 sound.




18-3
