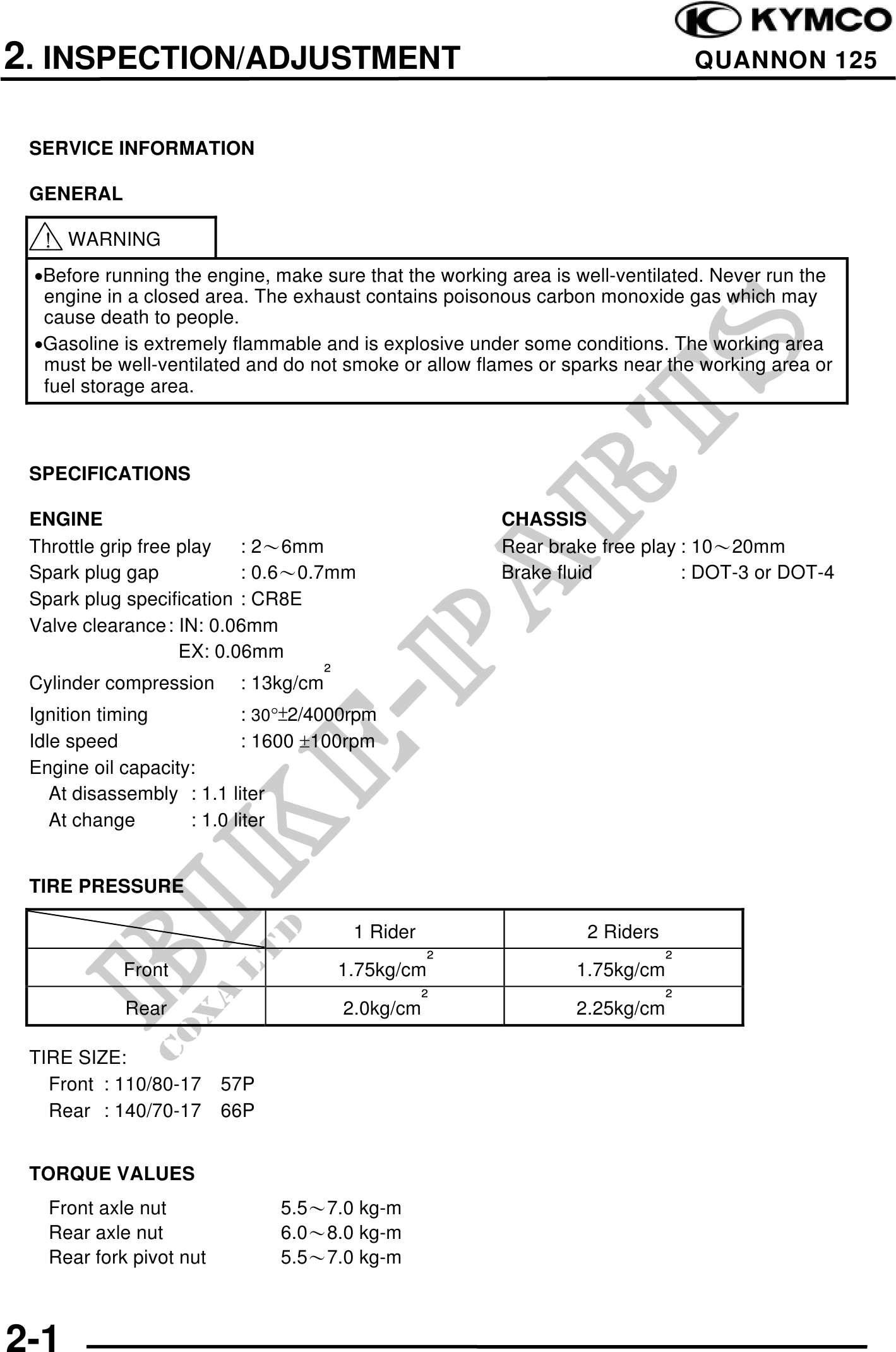

          2. INSPECTION/ADJUSTMENT                                                     QUANNON 125


 SERVICE INFORMATION

 GENERAL

   WARNING
 ·Before running the engine, make sure that the working area is well-ventilated. Never run the
  engine in a closed area. The exhaust contains poisonous carbon monoxide gas which may
  cause death to people.
 ·Gasoline is extremely flammable and is explosive under some conditions. The working area
  must be well-ventilated and do not smoke or allow flames or sparks near the working area or
  fuel storage area.



 SPECIFICATIONS

 ENGINE                                                CHASSIS
 Throttle grip free play   : 26mm                      Rear brake free play : 1020mm
 Spark plug gap            : 0.60.7mm                  Brake fluid          : DOT-3 or DOT-4
 Spark plug specification : CR8E
 Valve clearance: IN: 0.06mm
                    EX: 0.06mm

 Cylinder compression : 13kg/cm
 Ignition timing            : 30°2/4000rpm
 Idle speed                 : 1600 100rpm
 Engine oil capacity:
    At disassembly : 1.1 liter
    At change       : 1.0 liter


 TIRE PRESSURE

                                       1 Rider                   2 Riders

            Front                    1.75kg/cm                  1.75kg/cm

            Rear                      2.0kg/cm                  2.25kg/cm

 TIRE SIZE:
   Front : 110/80-17     57P
   Rear : 140/70-17      66P


 TORQUE VALUES
   Front axle nut              5.57.0 kg-m
   Rear axle nut               6.08.0 kg-m
   Rear fork pivot nut         5.57.0 kg-m



2-1
