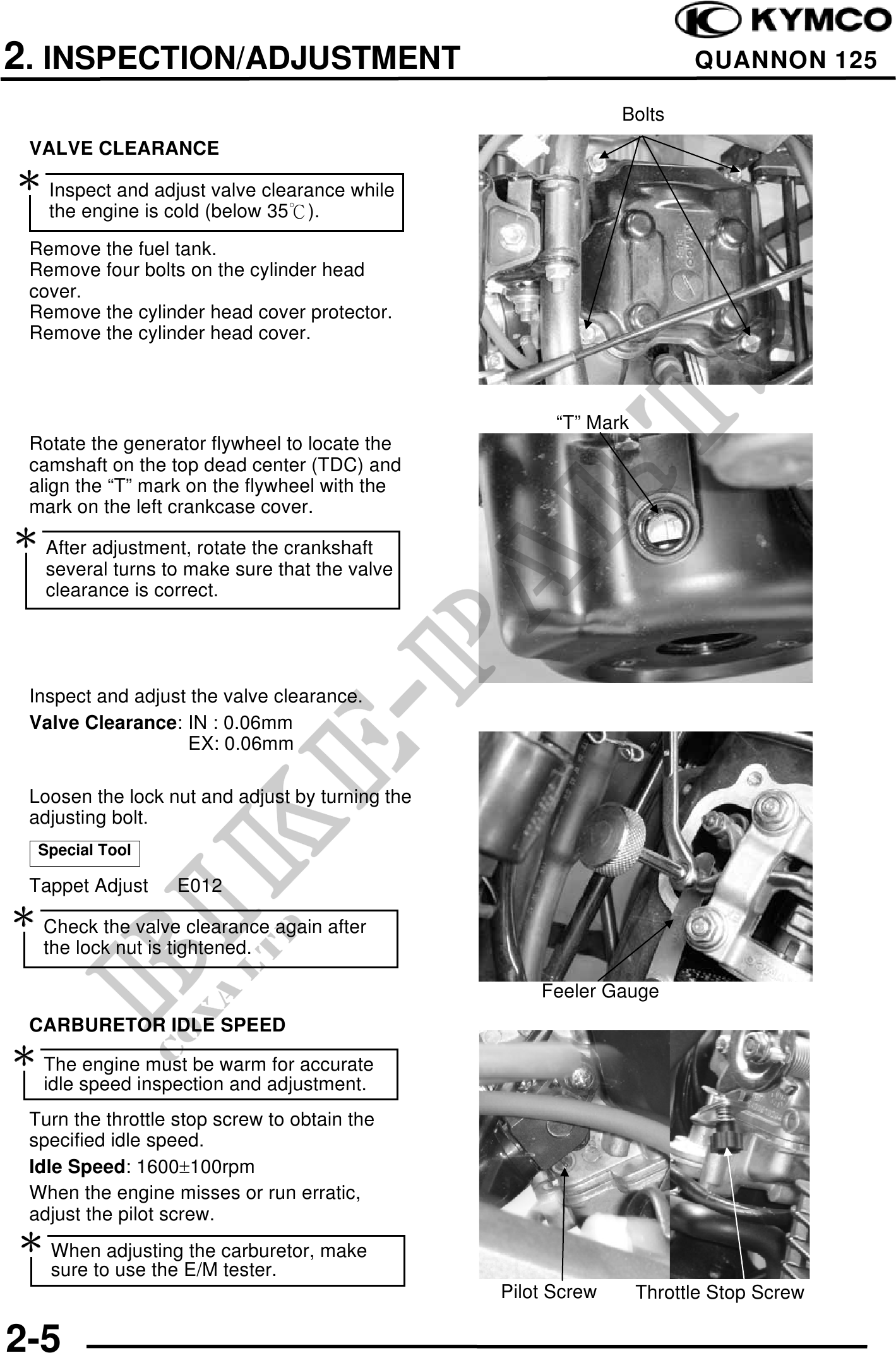

          2. INSPECTION/ADJUSTMENT                                                 QUANNON 125

                                                                Bolts
  VALVE CLEARANCE
 Inspect and adjust valve clearance while
    the engine is cold (below 35).
  Remove the fuel tank.
  Remove four bolts on the cylinder head
  cover.
  Remove the cylinder head cover protector.
  Remove the cylinder head cover.



                                                        "T" Mark
  Rotate the generator flywheel to locate the
  camshaft on the top dead center (TDC) and
  align the "T" mark on the flywheel with the
  mark on the left crankcase cover.
 After adjustment, rotate the crankshaft
    several turns to make sure that the valve
    clearance is correct.




  Inspect and adjust the valve clearance.
  Valve Clearance: IN : 0.06mm
                    EX: 0.06mm

  Loosen the lock nut and adjust by turning the
  adjusting bolt.
   Special Tool

  Tappet Adjust     E012
 Check the valve clearance again after
   the lock nut is tightened.

                                                      Feeler Gauge
  CARBURETOR IDLE SPEED
 The engine must be warm for accurate
   idle speed inspection and adjustment.
  Turn the throttle stop screw to obtain the
  specified idle speed.
  Idle Speed: 1600100rpm
  When the engine misses or run erratic,
  adjust the pilot screw.
 When adjusting the carburetor, make
    sure to use the E/M tester.
                                                  Pilot Screw      Throttle Stop Screw

2-5
