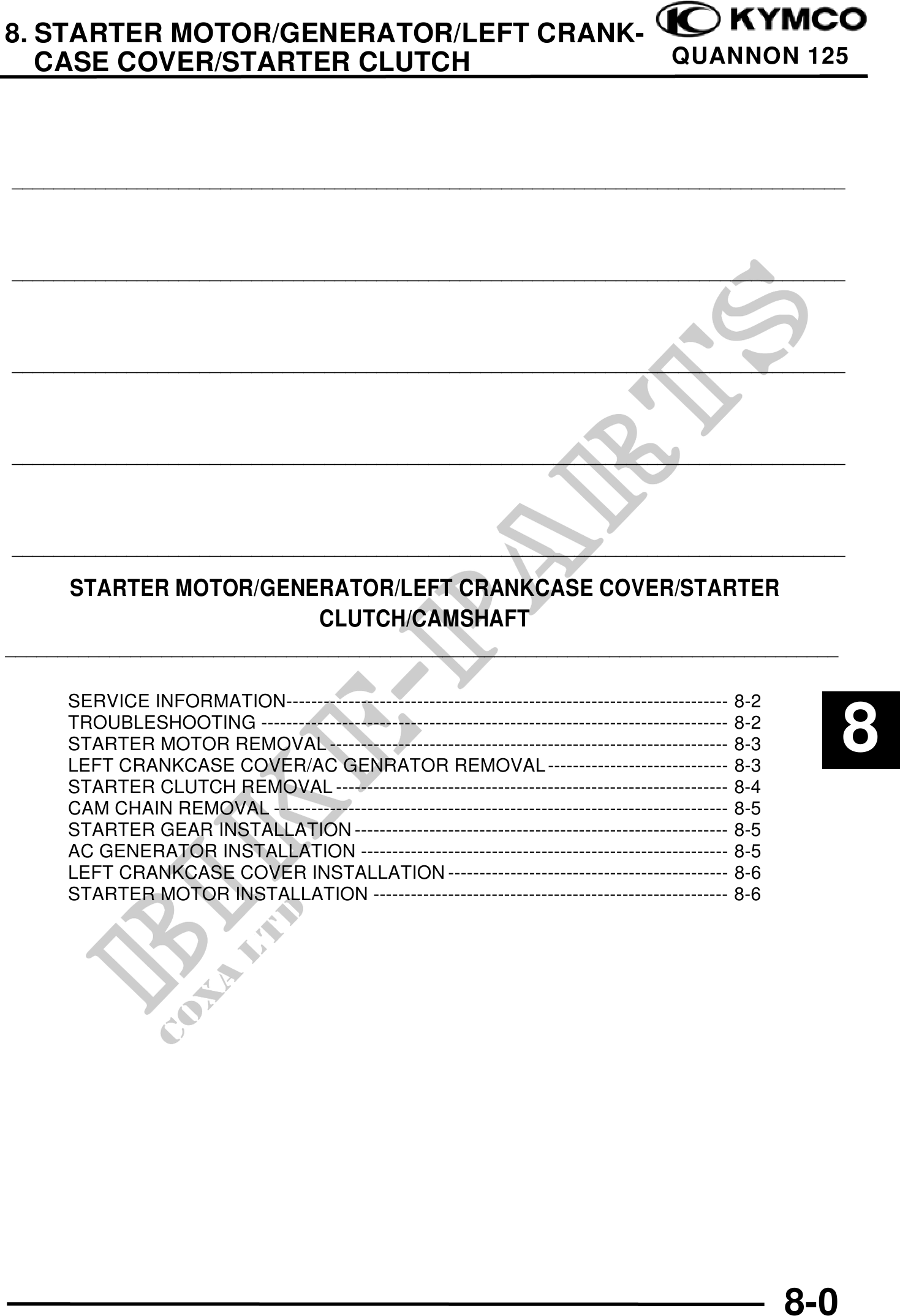

8. STARTER MOTOR/GENERATOR/LEFT CRANK-
CASE COVER/STARTER CLUTCH QUANNON 125
8
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
STARTER MOTOR/GENERATOR/LEFT CRANKCASE COVER/STARTER
CLUTCH/CAMSHAFT
________________________________________________________________________________
SERVICE INFORMATION----------------------------------------------------------------------- 8-2
TROUBLESHOOTING ---------------------------------------------------------------------------
STARTER MOTOR REMOVAL ----------------------------------------------------------------
LEFT CRANKCASE COVER/AC GENRATOR REMOVAL -----------------------------
8-2
8-3
8-3
8
STARTER CLUTCH REMOVAL --------------------------------------------------------------- 8-4
CAM CHAIN REMOVAL ------------------------------------------------------------------------- 8-5
STARTER GEAR INSTALLATION ------------------------------------------------------------ 8-5
AC GENERATOR INSTALLATION ----------------------------------------------------------- 8-5
LEFT CRANKCASE COVER INSTALLATION --------------------------------------------- 8-6
STARTER MOTOR INSTALLATION --------------------------------------------------------- 8-6
8-0
