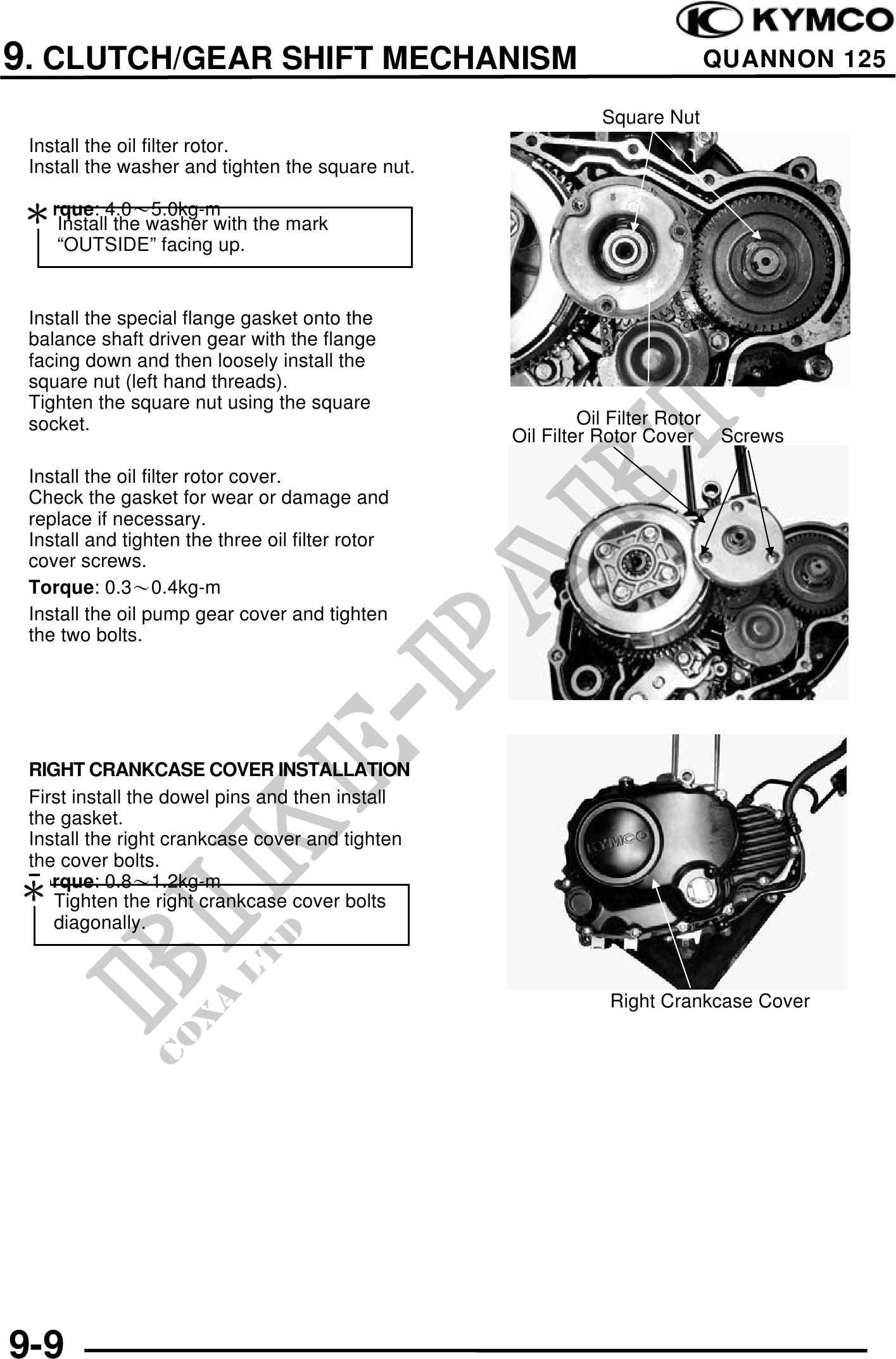

          9. CLUTCH/GEAR SHIFT MECHANISM                                                QUANNON 125

                                                             Square Nut
 Install the oil filter rotor.
 Install the washer and tighten the square nut.

 Install4.05.0kg-m the mark
Torque:
         the washer with
    "OUTSIDE" facing up.


 Install the special flange gasket onto the
 balance shaft driven gear with the flange
 facing down and then loosely install the
 square nut (left hand threads).
 Tighten the square nut using the square
 socket.                                                   Oil Filter Rotor
                                                  Oil Filter Rotor Cover       Screws

 Install the oil filter rotor cover.
 Check the gasket for wear or damage and
 replace if necessary.
 Install and tighten the three oil filter rotor
 cover screws.
 Torque: 0.30.4kg-m
 Install the oil pump gear cover and tighten
 the two bolts.




 RIGHT CRANKCASE COVER INSTALLATION
 First install the dowel pins and then install
 the gasket.
 Install the right crankcase cover and tighten
 the cover bolts.
 Torque: 0.81.2kg-m
    Tighten the right crankcase cover bolts
    diagonally.



                                                              Right Crankcase Cover




9-9
