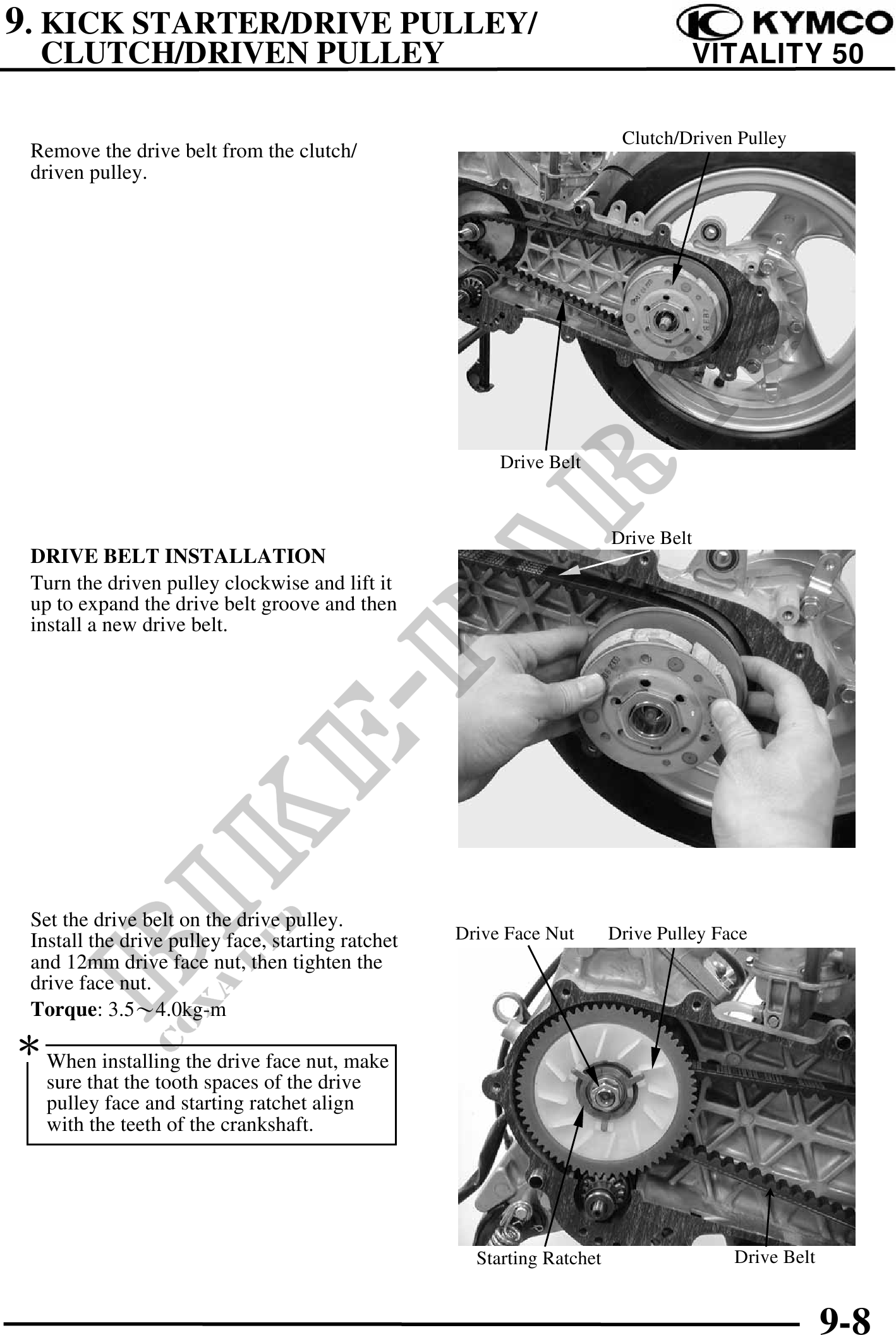

9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY VITALITY 50
Clutch/Driven Pulley
Remove the drive belt from the clutch/
driven pulley.
Drive Belt
Drive Belt
DRIVE BELT INSTALLATION
Turn the driven pulley clockwise and lift it
up to expand the drive belt groove and then
install a new drive belt.
Set the drive belt on the drive pulley.
Install the drive pulley face, starting ratchet Drive Face Nut Drive Pulley Face
and 12mm drive face nut, then tighten the
drive face nut.
Torque: 3.54.0kg-m
When installing the drive face nut, make
sure that the tooth spaces of the drive
pulley face and starting ratchet align
with the teeth of the crankshaft.
Starting Ratchet Drive Belt
9-8
