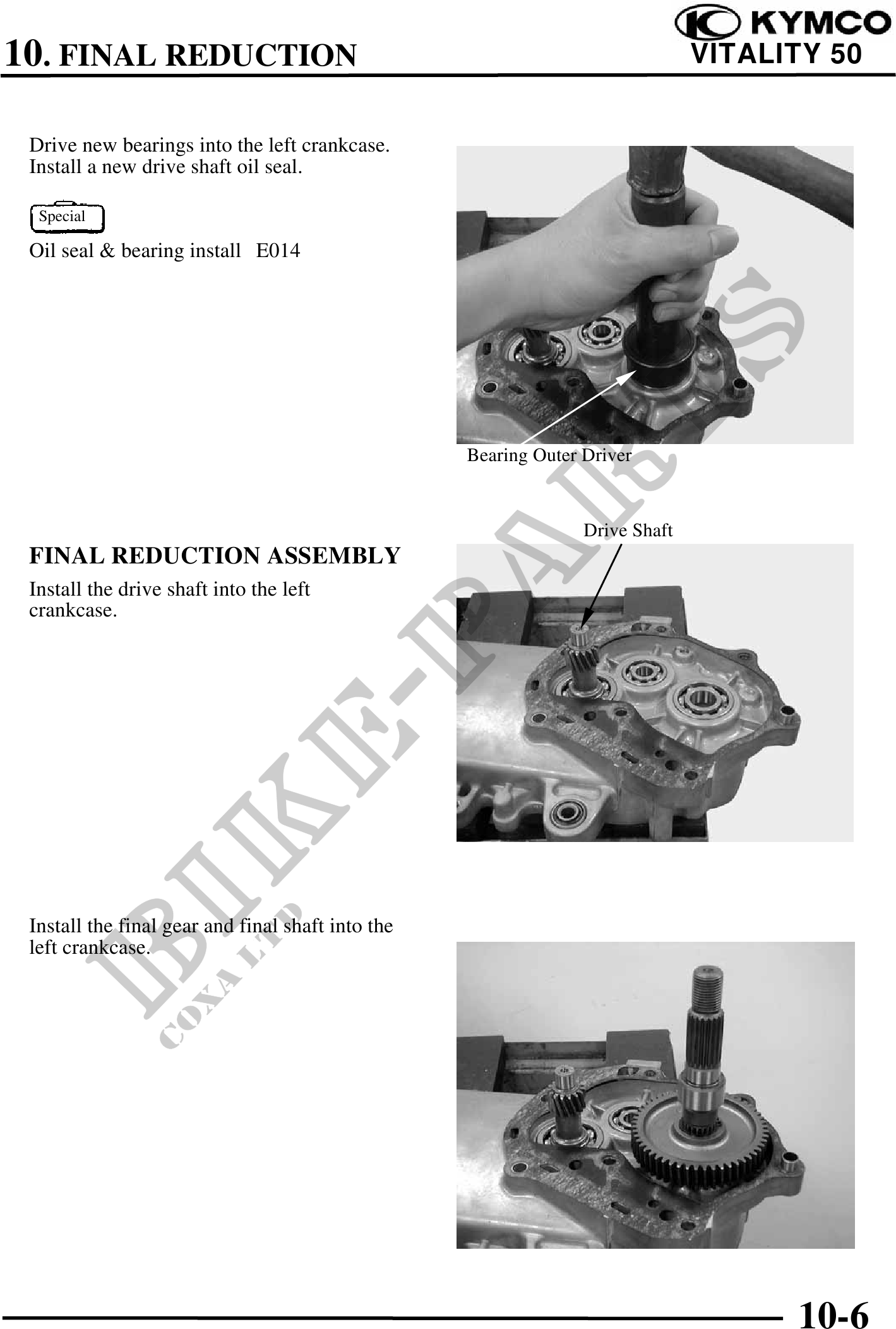

          10. FINAL REDUCTION                                                            VITALITY 50


 Drive new bearings into the left crankcase.
 Install a new drive shaft oil seal.

  Special

 Oil seal & bearing install E014




                                                   Bearing Outer Driver


                                                                 Drive Shaft
 FINAL REDUCTION ASSEMBLY
 Install the drive shaft into the left
 crankcase.




 Install the final gear and final shaft into the
 left crankcase.




                                                                                     10-6
