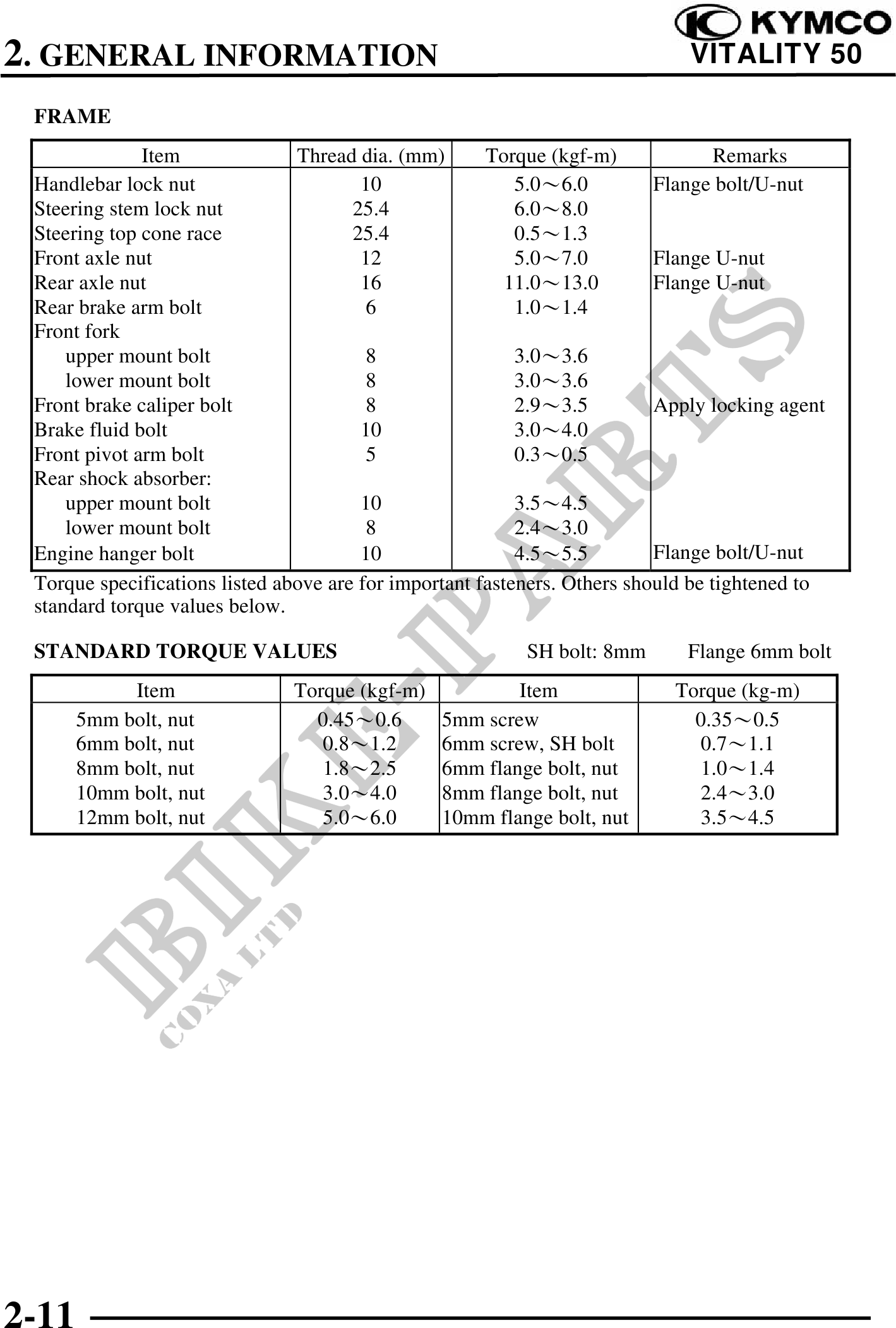

          2. GENERAL INFORMATION                                                        VITALITY 50

 FRAME
              Item              Thread dia. (mm)       Torque (kgf-m)              Remarks
 Handlebar lock nut                     10                 5.06.0          Flange bolt/U-nut
 Steering stem lock nut                25.4                6.08.0
 Steering top cone race                25.4                0.51.3
 Front axle nut                         12                 5.07.0          Flange U-nut
 Rear axle nut                          16                11.013.0         Flange U-nut
 Rear brake arm bolt                     6                 1.01.4
 Front fork
     upper mount bolt                    8                 3.03.6
     lower mount bolt                    8                 3.03.6
 Front brake caliper bolt                8                 2.93.5          Apply locking agent
 Brake fluid bolt                       10                 3.04.0
 Front pivot arm bolt                    5                 0.30.5
 Rear shock absorber:
     upper mount bolt                   10                 3.54.5
     lower mount bolt                    8                 2.43.0
 Engine hanger bolt                     10                 4.55.5          Flange bolt/U-nut
 Torque specifications listed above are for important fasteners. Others should be tightened to
 standard torque values below.

 STANDARD TORQUE VALUES                                   SH bolt: 8mm       Flange 6mm bolt
            Item               Torque (kgf-m)           Item                Torque (kg-m)
       5mm bolt, nut             0.450.6        5mm screw                     0.350.5
       6mm bolt, nut              0.81.2        6mm screw, SH bolt             0.71.1
       8mm bolt, nut              1.82.5        6mm flange bolt, nut           1.01.4
       10mm bolt, nut             3.04.0        8mm flange bolt, nut           2.43.0
       12mm bolt, nut             5.06.0        10mm flange bolt, nut          3.54.5




2-11
