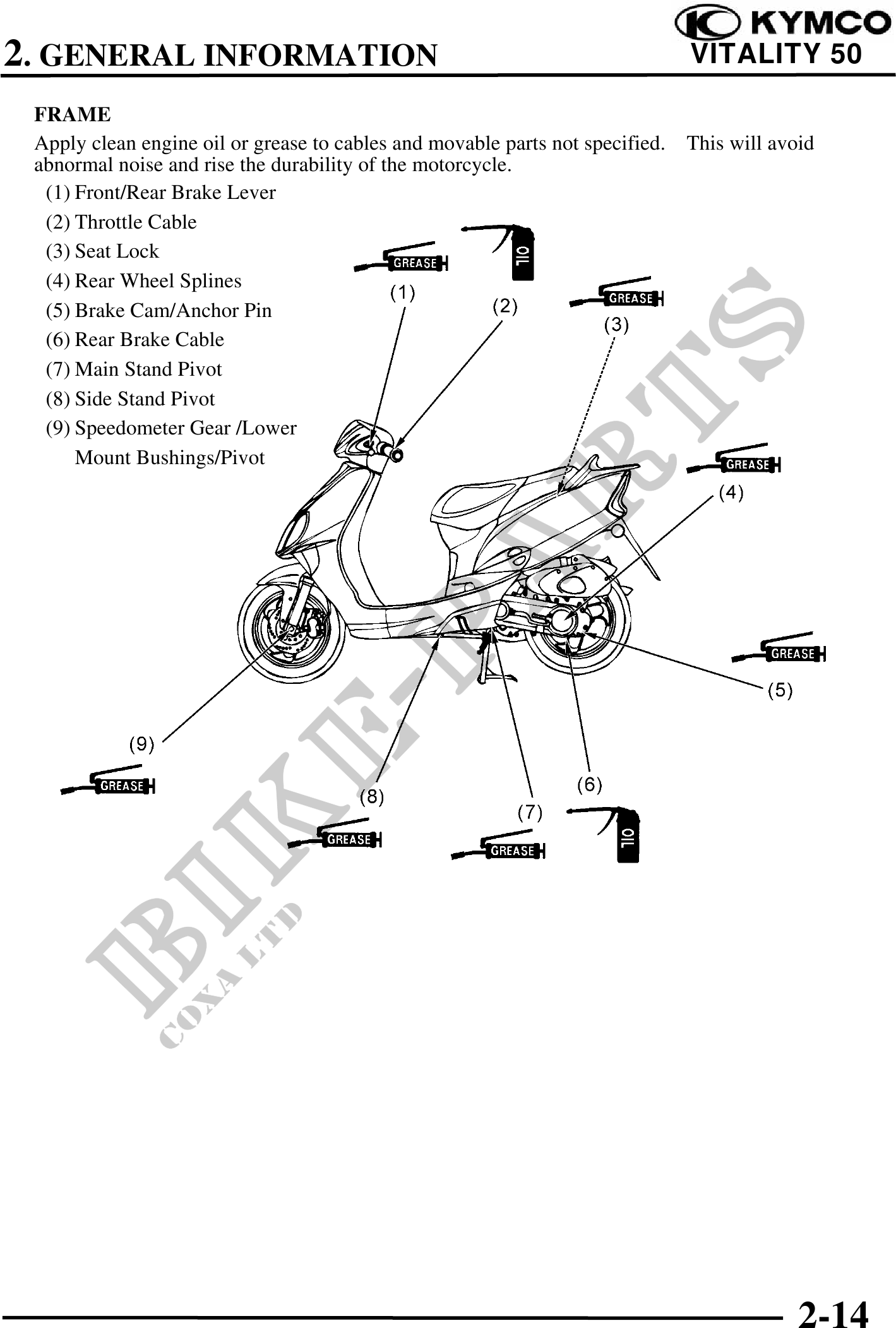

          2. GENERAL INFORMATION                                                         VITALITY 50

 FRAME
 Apply clean engine oil or grease to cables and movable parts not specified.   This will avoid
 abnormal noise and rise the durability of the motorcycle.
  (1) Front/Rear Brake Lever
  (2) Throttle Cable
  (3) Seat Lock
  (4) Rear Wheel Splines
  (5) Brake Cam/Anchor Pin
  (6) Rear Brake Cable
  (7) Main Stand Pivot
  (8) Side Stand Pivot
  (9) Speedometer Gear /Lower
      Mount Bushings/Pivot




                                                                                            2-14
