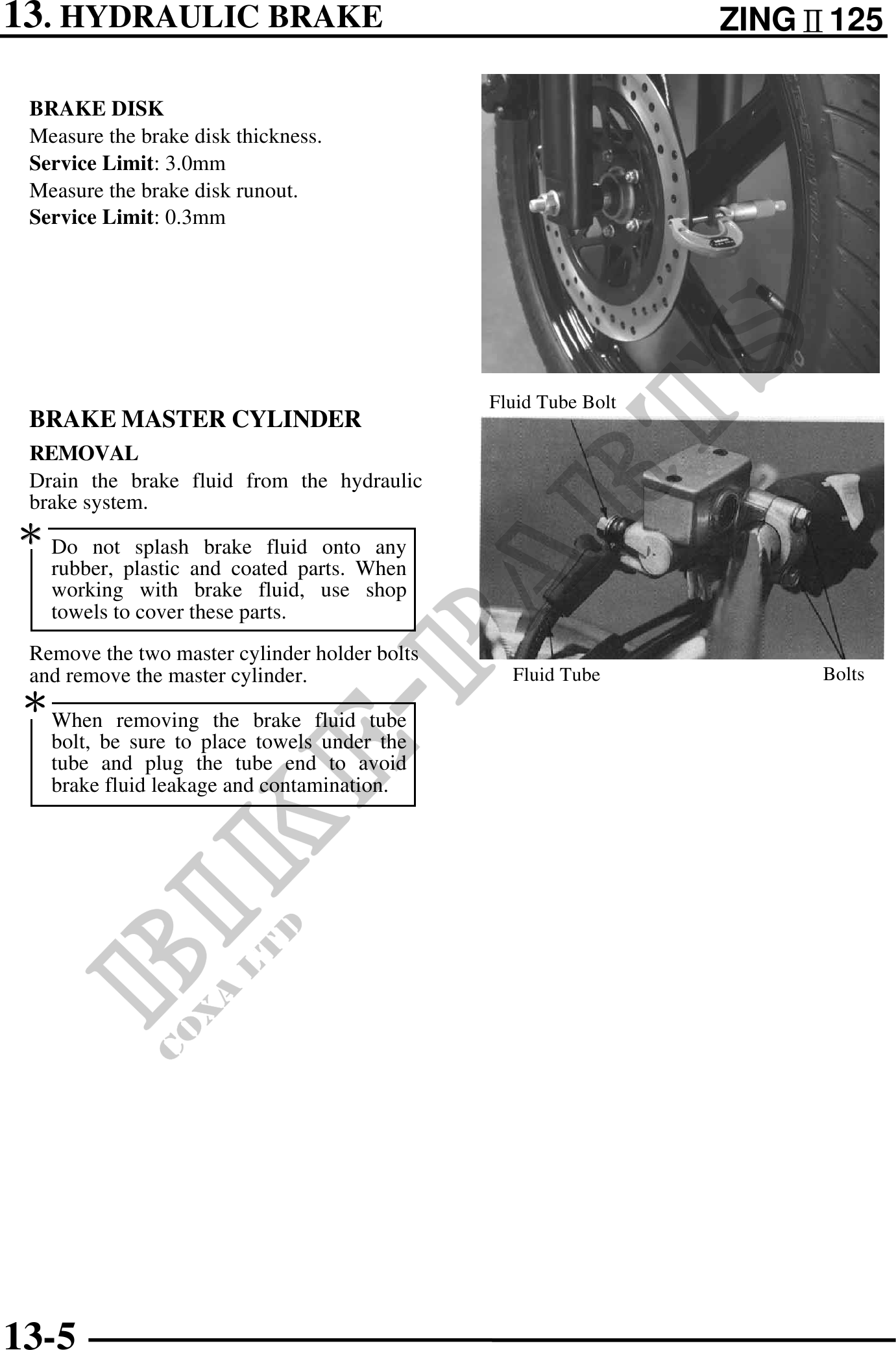

13. HYDRAULIC BRAKE ZING125
BRAKE DISK
Measure the brake disk thickness.
Service Limit: 3.0mm
Measure the brake disk runout.
Service Limit: 0.3mm
Fluid Tube Bolt
BRAKE MASTER CYLINDER
REMOVAL
Drain the brake fluid from the hydraulic
brake system.
Do not splash brake fluid onto any
rubber, plastic and coated parts. When
working with brake fluid, use shop
towels to cover these parts.
Remove the two master cylinder holder bolts
and remove the master cylinder. Fluid Tube Bolts
When removing the brake fluid tube
bolt, be sure to place towels under the
tube and plug the tube end to avoid
brake fluid leakage and contamination.
13-5
