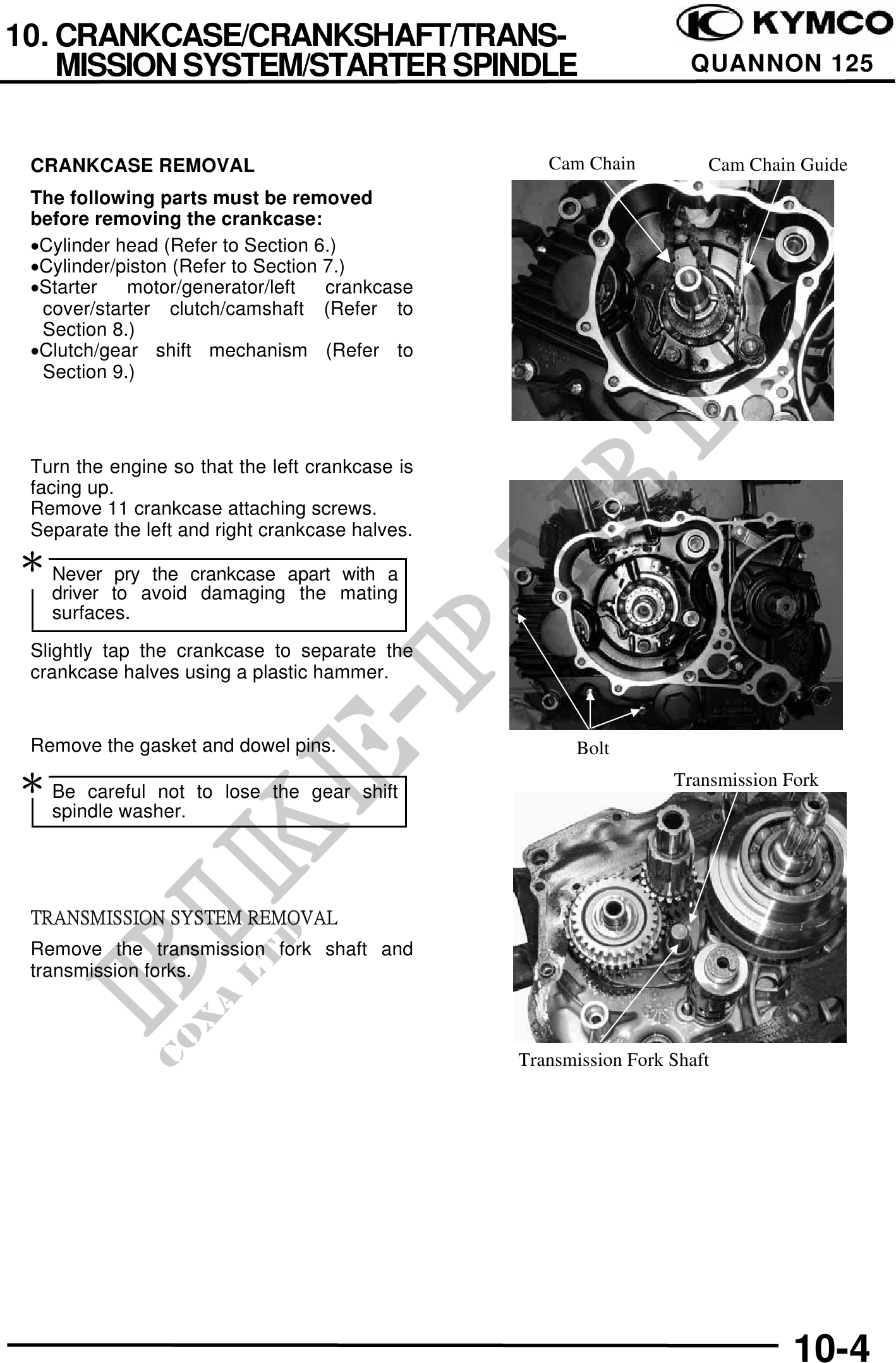

          10. CRANKCASE/CRANKSHAFT/TRANS-
    MISSION SYSTEM/STARTER SPINDLE                                   QUANNON 125



 CRANKCASE REMOVAL                                  Cam Chain          Cam Chain Guide
 The following parts must be removed
 before removing the crankcase:
 ·Cylinder head (Refer to Section 6.)
 ·Cylinder/piston (Refer to Section 7.)
 ·Starter   motor/generator/left    crankcase
  cover/starter clutch/camshaft (Refer to
  Section 8.)
 ·Clutch/gear shift mechanism (Refer to
  Section 9.)



 Turn the engine so that the left crankcase is
 facing up.
 Remove 11 crankcase attaching screws.
 Separate the left and right crankcase halves.
 Never    pry the crankcase apart with a
   driver to avoid damaging the mating
   surfaces.
 Slightly tap the crankcase to separate the
 crankcase halves using a plastic hammer.


 Remove the gasket and dowel pins.                     Bolt
 Be    careful not to lose the gear shift
                                                                   Transmission Fork
   spindle washer.




 TRANSMISSION SYSTEM REMOVAL
 Remove the transmission fork shaft and
 transmission forks.



                                                 Transmission Fork Shaft
