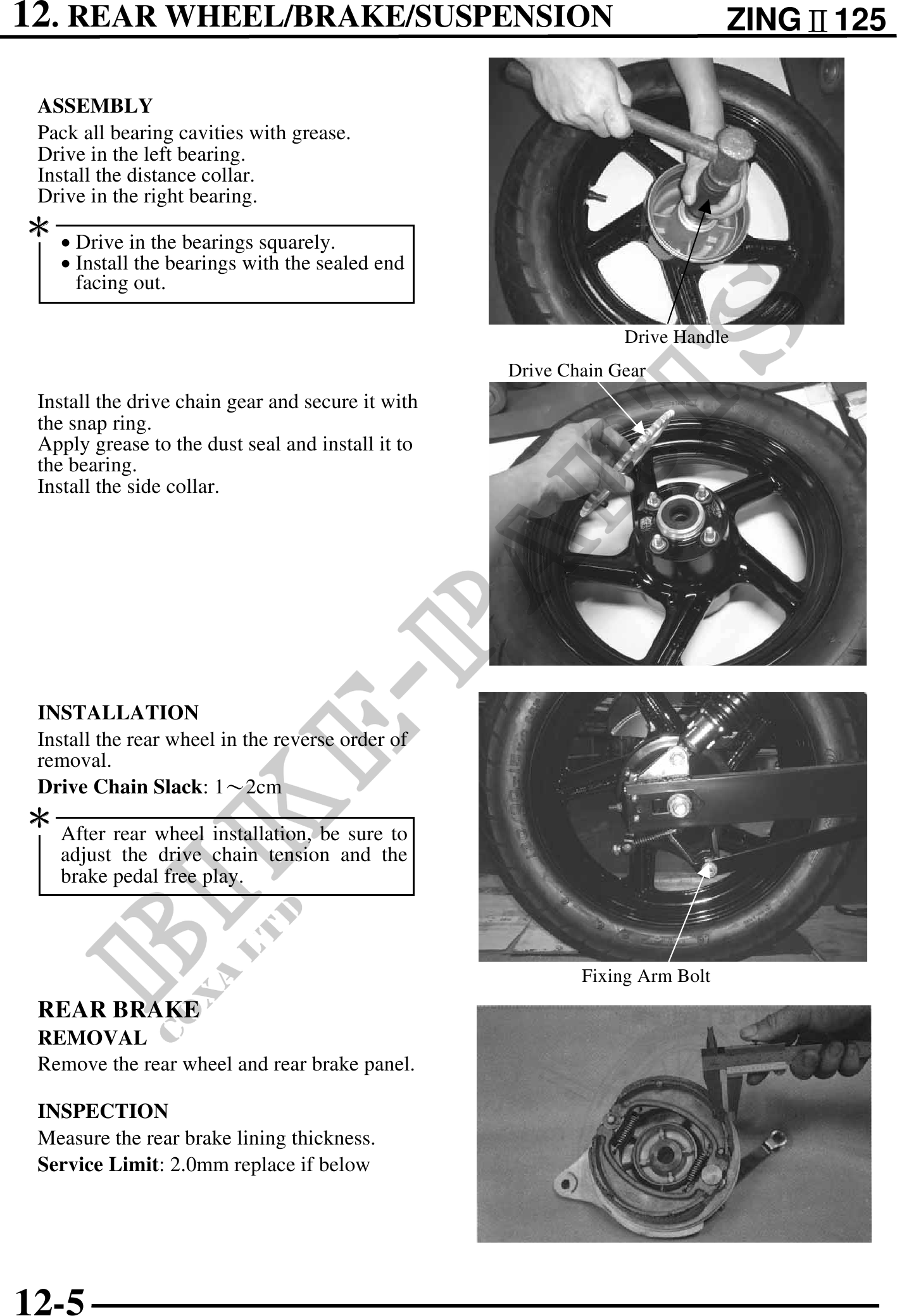

          12. REAR WHEEL/BRAKE/SUSPENSION                                              ZING125

 ASSEMBLY
 Pack all bearing cavities with grease.
 Drive in the left bearing.
 Install the distance collar.
 Drive in the right bearing.
 · Drive in the bearings squarely.
    · Install the bearings with the sealed end
      facing out.

                                                                Drive Handle
                                                   Drive Chain Gear
 Install the drive chain gear and secure it with
 the snap ring.
 Apply grease to the dust seal and install it to
 the bearing.
 Install the side collar.




 INSTALLATION
 Install the rear wheel in the reverse order of
 removal.
 Drive Chain Slack: 12cm
 After rear wheel installation, be sure to
    adjust the drive chain tension and the
    brake pedal free play.



                                                           Fixing Arm Bolt
 REAR BRAKE
 REMOVAL
 Remove the rear wheel and rear brake panel.

 INSPECTION
 Measure the rear brake lining thickness.
 Service Limit: 2.0mm replace if below




12-5
