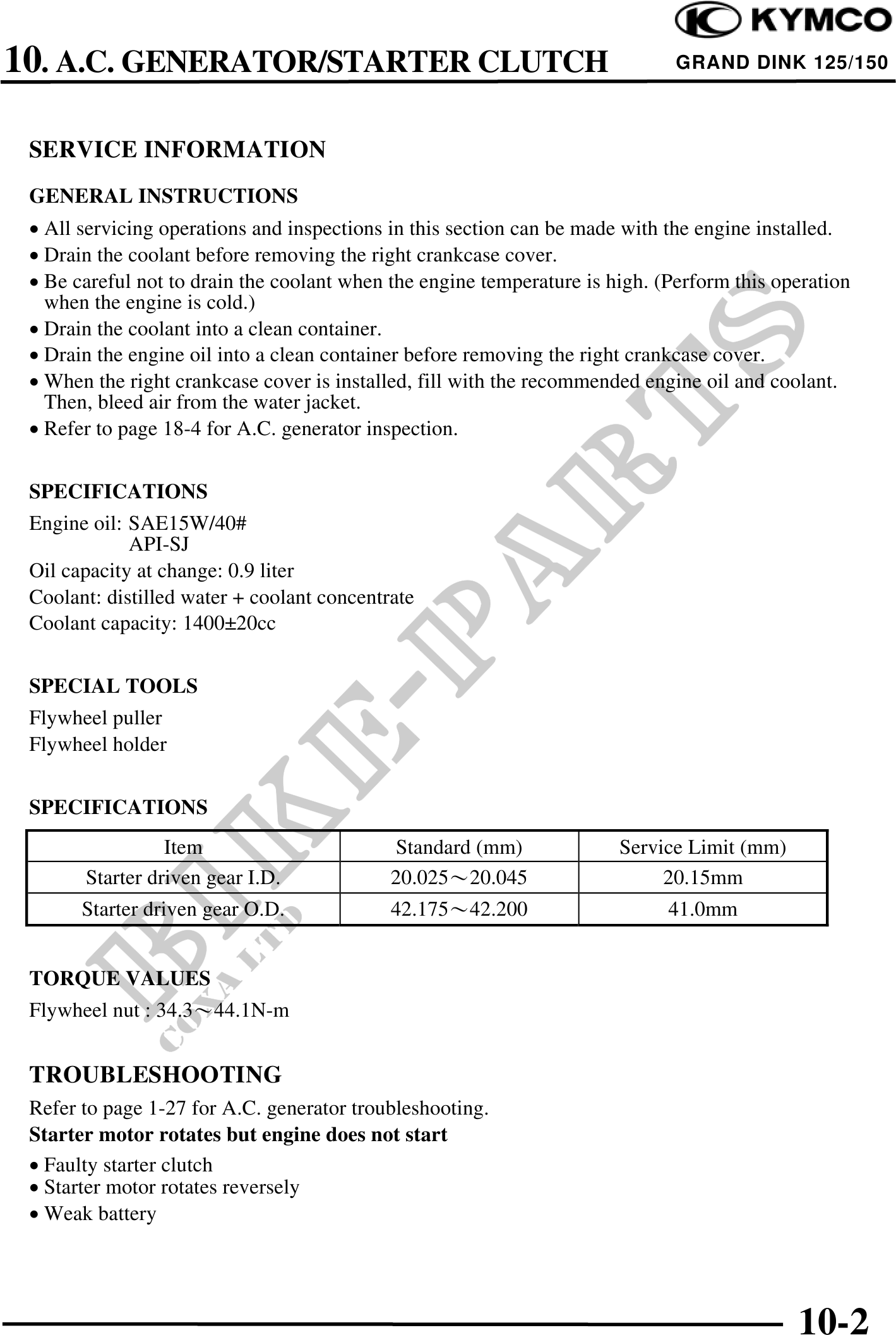

          10. A.C. GENERATOR/STARTER CLUTCH                                             GRAND DINK 125/150



 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · All servicing operations and inspections in this section can be made with the engine installed.
 · Drain the coolant before removing the right crankcase cover.
 · Be careful not to drain the coolant when the engine temperature is high. (Perform this operation
   when the engine is cold.)
 · Drain the coolant into a clean container.
 · Drain the engine oil into a clean container before removing the right crankcase cover.
 · When the right crankcase cover is installed, fill with the recommended engine oil and coolant.
   Then, bleed air from the water jacket.
 · Refer to page 18-4 for A.C. generator inspection.


 SPECIFICATIONS
 Engine oil: SAE15W/40#
             API-SJ
 Oil capacity at change: 0.9 liter
 Coolant: distilled water + coolant concentrate
 Coolant capacity: 140020cc


 SPECIAL TOOLS
 Flywheel puller
 Flywheel holder


 SPECIFICATIONS
                  Item                      Standard (mm)              Service Limit (mm)
       Starter driven gear I.D.             20.02520.045                    20.15mm
       Starter driven gear O.D.             42.17542.200                     41.0mm


 TORQUE VALUES
 Flywheel nut : 34.344.1N-m


 TROUBLESHOOTING
 Refer to page 1-27 for A.C. generator troubleshooting.
 Starter motor rotates but engine does not start
 · Faulty starter clutch
 · Starter motor rotates reversely
 · Weak battery




                                                                                            10-2
