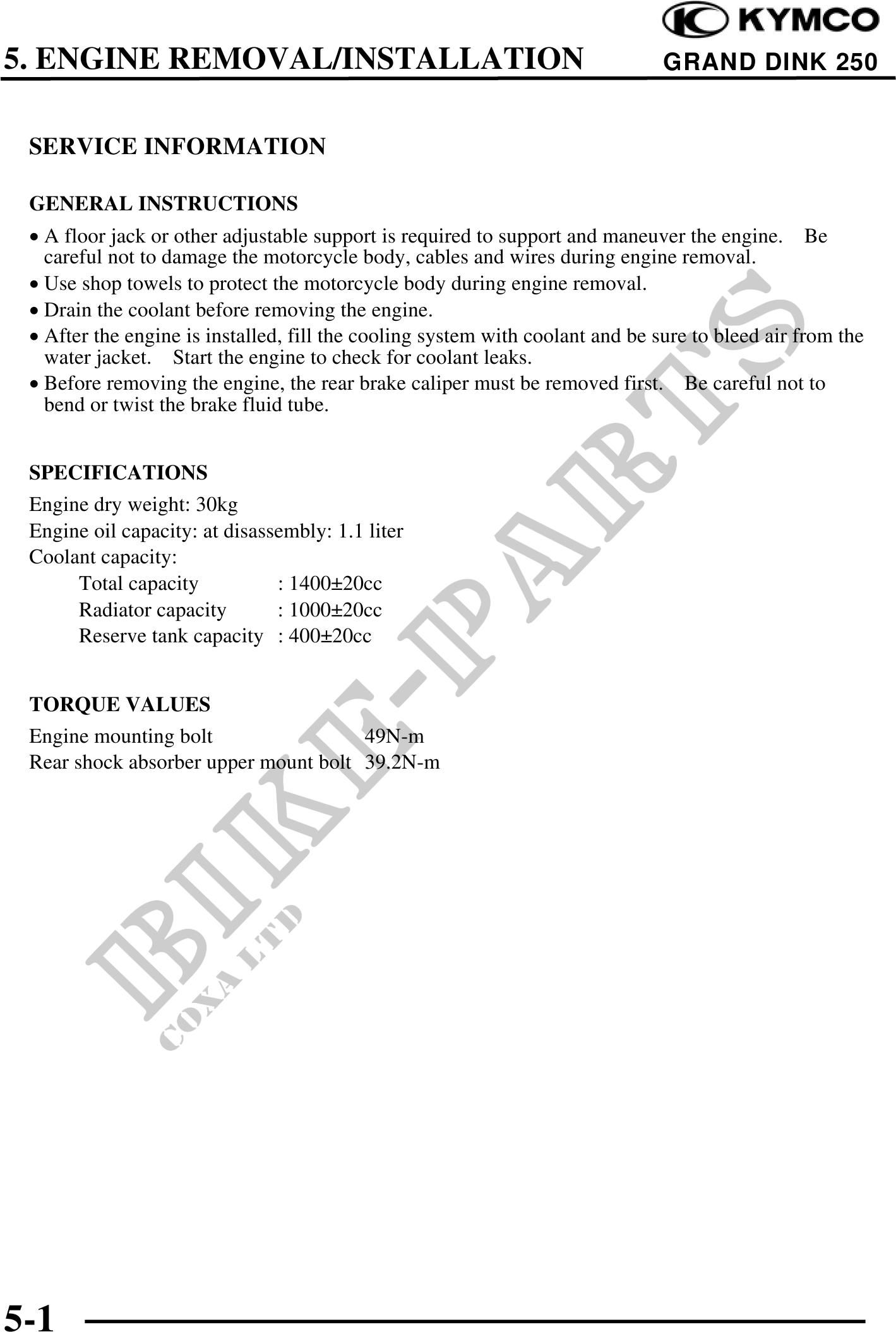

5. ENGINE REMOVAL/INSTALLATION GRAND DINK 250
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· A floor jack or other adjustable support is required to support and maneuver the engine. Be
careful not to damage the motorcycle body, cables and wires during engine removal.
· Use shop towels to protect the motorcycle body during engine removal.
· Drain the coolant before removing the engine.
· After the engine is installed, fill the cooling system with coolant and be sure to bleed air from the
water jacket. Start the engine to check for coolant leaks.
· Before removing the engine, the rear brake caliper must be removed first. Be careful not to
bend or twist the brake fluid tube.
SPECIFICATIONS
Engine dry weight: 30kg
Engine oil capacity: at disassembly: 1.1 liter
Coolant capacity:
Total capacity : 140020cc
Radiator capacity : 100020cc
Reserve tank capacity : 40020cc
TORQUE VALUES
Engine mounting bolt 49N-m
Rear shock absorber upper mount bolt 39.2N-m
5-1
