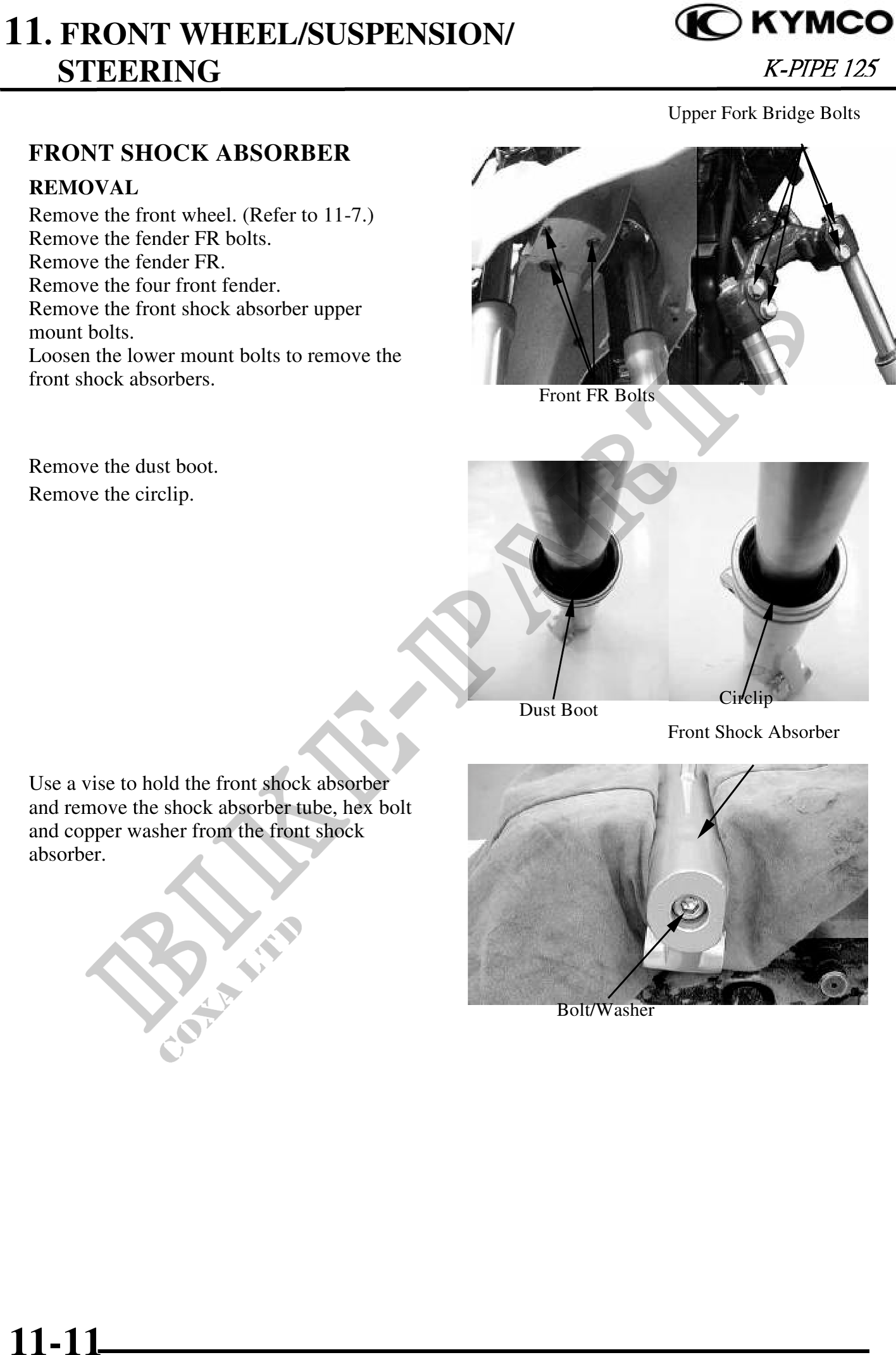

11. FRONT WHEEL/SUSPENSION/
STEERING K-PIPE 125
Upper Fork Bridge Bolts
FRONT SHOCK ABSORBER
REMOVAL
Remove the front wheel. (Refer to 11-7.)
Remove the fender FR bolts.
Remove the fender FR.
Remove the four front fender.
Remove the front shock absorber upper
mount bolts.
Loosen the lower mount bolts to remove the
front shock absorbers.
Front FR Bolts
Remove the dust boot.
Remove the circlip.
Circlip
Dust Boot
Front Shock Absorber
Use a vise to hold the front shock absorber
and remove the shock absorber tube, hex bolt
and copper washer from the front shock
absorber.
Bolt/Washer
11-11
