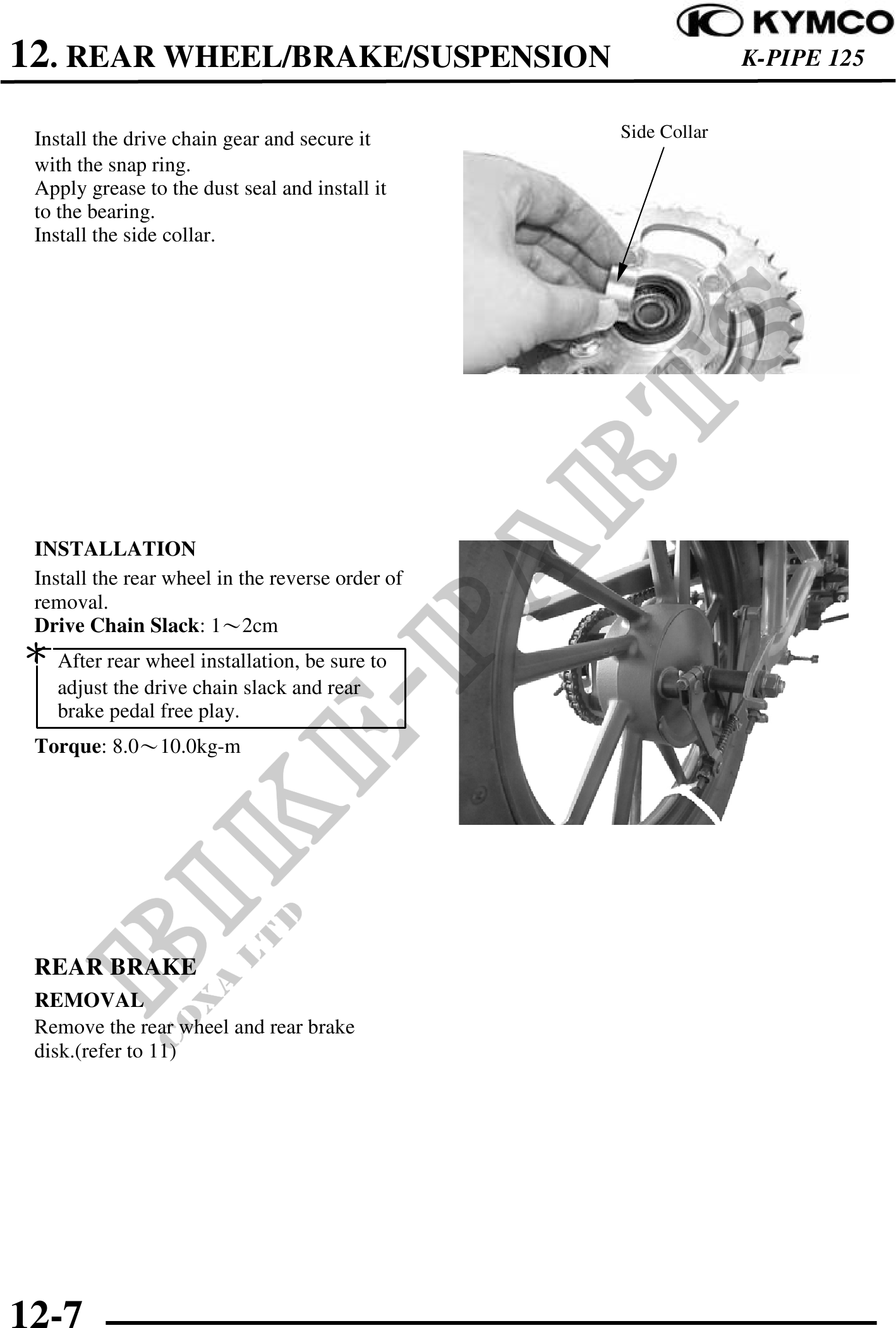

12. REAR WHEEL/BRAKE/SUSPENSION K-PIPE 125
Install the drive chain gear and secure it Side Collar
with the snap ring.
Apply grease to the dust seal and install it
to the bearing.
Install the side collar.
INSTALLATION
Install the rear wheel in the reverse order of
removal.
Drive Chain Slack: 12cm
After rear wheel installation, be sure to
adjust the drive chain slack and rear
brake pedal free play.
Torque: 8.010.0kg-m
REAR BRAKE
REMOVAL
Remove the rear wheel and rear brake
disk.(refer to 11)
12-7
