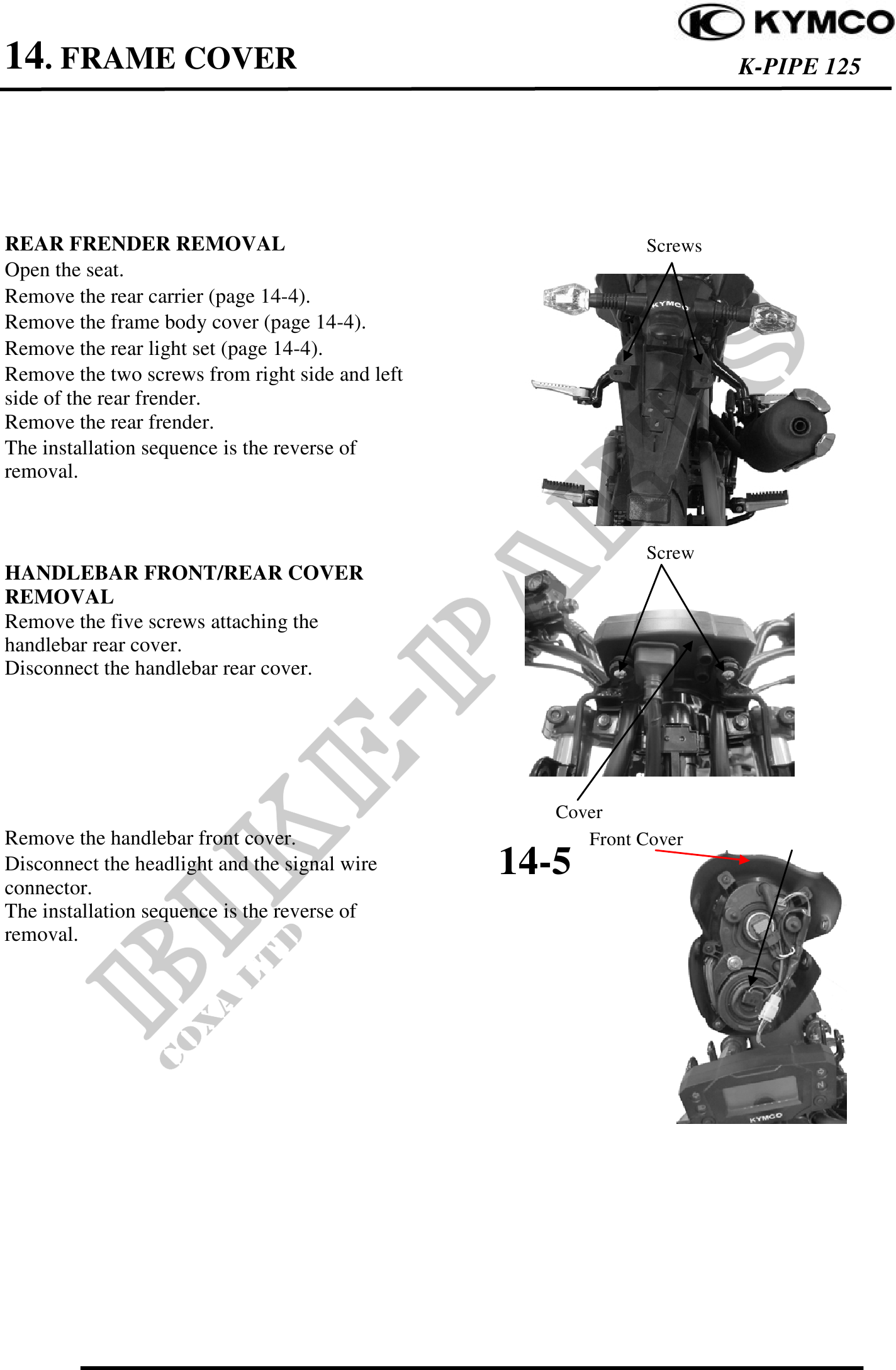

14. FRAME COVER K-PIPE 125
REAR FRENDER REMOVAL Screws
Open the seat.
Remove the rear carrier (page 14-4).
Remove the frame body cover (page 14-4).
Remove the rear light set (page 14-4).
Remove the two screws from right side and left
side of the rear frender.
Remove the rear frender.
The installation sequence is the reverse of
removal.
Screw
HANDLEBAR FRONT/REAR COVER
REMOVAL
Remove the five screws attaching the
handlebar rear cover.
Disconnect the handlebar rear cover.
Cover
Remove the handlebar front cover. Front Cover
Disconnect the headlight and the signal wire
connector.
14-5
The installation sequence is the reverse of
removal.
