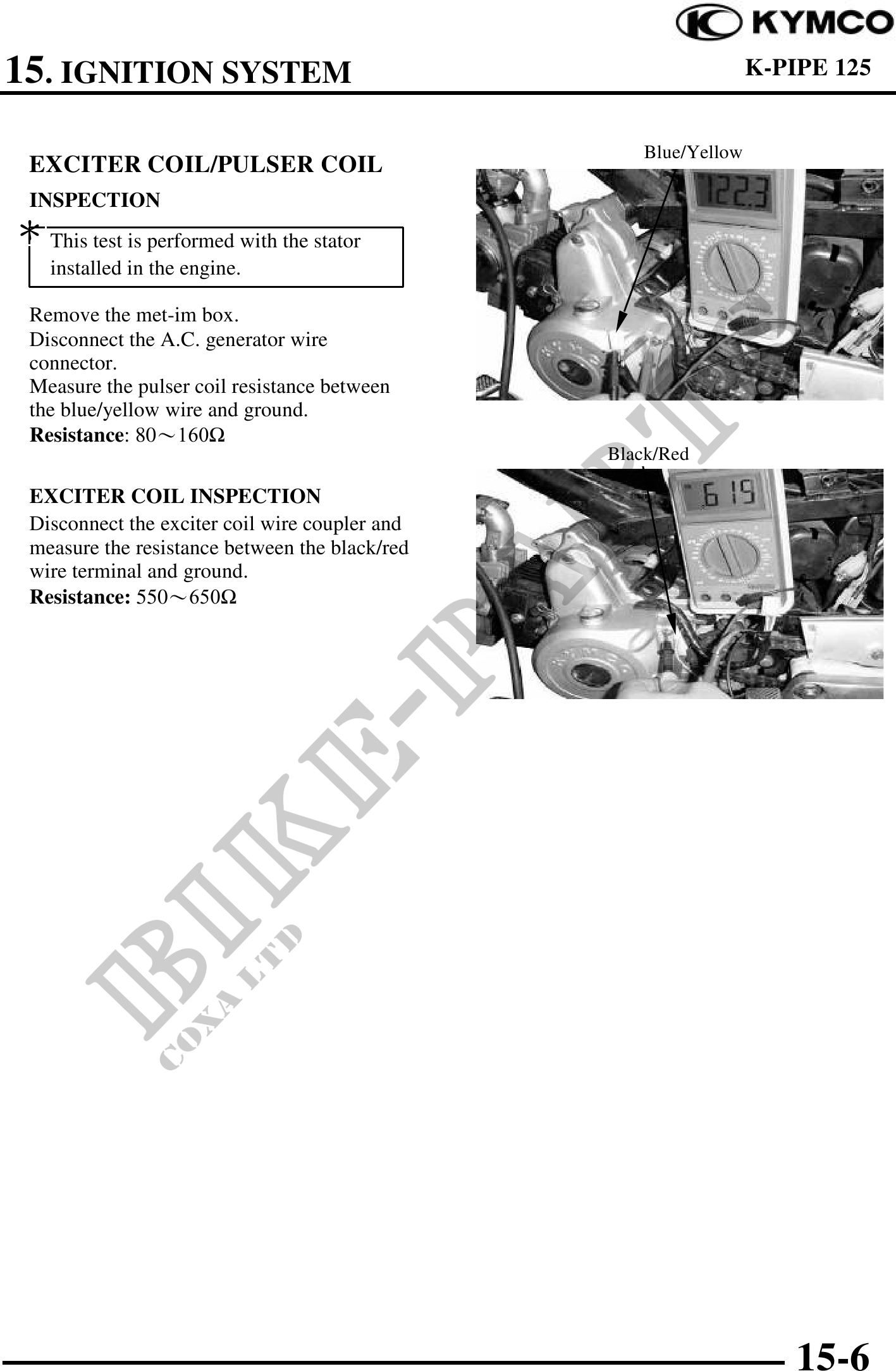

15. IGNITION SYSTEM K-PIPE 125
Blue/Yellow
EXCITER COIL/PULSER COIL
INSPECTION
This test is performed with the stator
installed in the engine.
Remove the met-im box.
Disconnect the A.C. generator wire
connector.
Measure the pulser coil resistance between
the blue/yellow wire and ground.
Resistance: 80160
Black/Red
EXCITER COIL INSPECTION
Disconnect the exciter coil wire coupler and
measure the resistance between the black/red
wire terminal and ground.
Resistance: 550650
15-6
