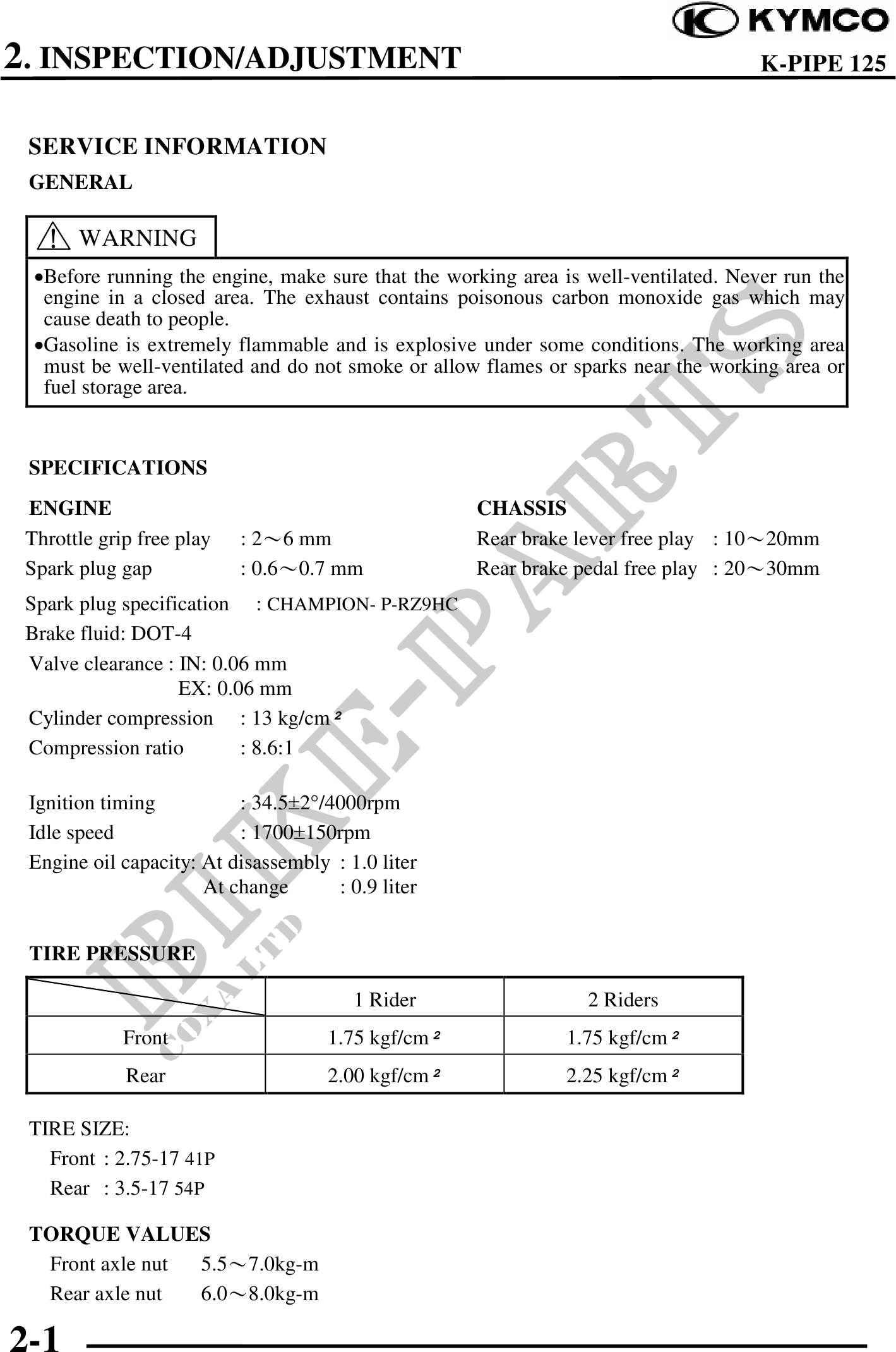

2. INSPECTION/ADJUSTMENT K-PIPE 125
SERVICE INFORMATION
GENERAL
WARNING
·Before running the engine, make sure that the working area is well-ventilated. Never run the
engine in a closed area. The exhaust contains poisonous carbon monoxide gas which may
cause death to people.
·Gasoline is extremely flammable and is explosive under some conditions. The working area
must be well-ventilated and do not smoke or allow flames or sparks near the working area or
fuel storage area.
SPECIFICATIONS
ENGINE CHASSIS
Throttle grip free play : 26 mm Rear brake lever free play : 1020mm
Spark plug gap : 0.60.7 mm Rear brake pedal free play : 2030mm
Spark plug specification : CHAMPION- P-RZ9HC
Brake fluid: DOT-4
Valve clearance : IN: 0.06 mm
EX: 0.06 mm
Cylinder compression : 13 kg/cm
Compression ratio : 8.6:1
Ignition timing : 34.52°/4000rpm
Idle speed : 1700150rpm
Engine oil capacity: At disassembly : 1.0 liter
At change : 0.9 liter
TIRE PRESSURE
1 Rider 2 Riders
Front 1.75 kgf/cm 1.75 kgf/cm
Rear 2.00 kgf/cm 2.25 kgf/cm
TIRE SIZE:
Front : 2.75-17 41P
Rear : 3.5-17 54P
TORQUE VALUES
Front axle nut 5.57.0kg-m
Rear axle nut 6.08.0kg-m
2-1
