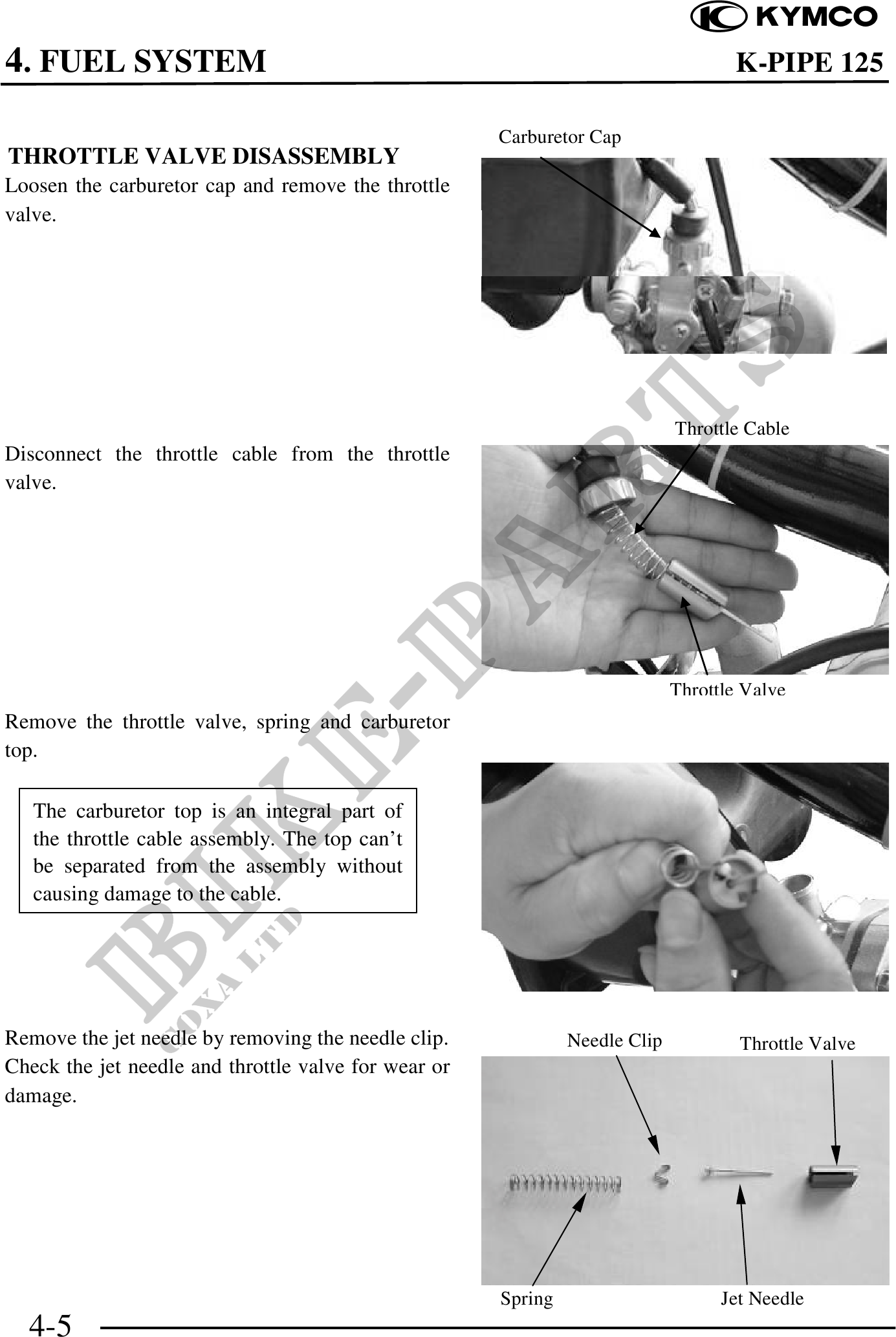

4. FUEL SYSTEM K-PIPE 125
Carburetor Cap
THROTTLE VALVE DISASSEMBLY
Loosen the carburetor cap and remove the throttle
valve.
Throttle Cable
Disconnect the throttle cable from the throttle
valve.
Throttle Valve
Remove the throttle valve, spring and carburetor
top.
The carburetor top is an integral part of
the throttle cable assembly. The top can't
be separated from the assembly without
causing damage to the cable.
Remove the jet needle by removing the needle clip. Needle Clip Throttle Valve
Check the jet needle and throttle valve for wear or
damage.
Spring Jet Needle
4-5
