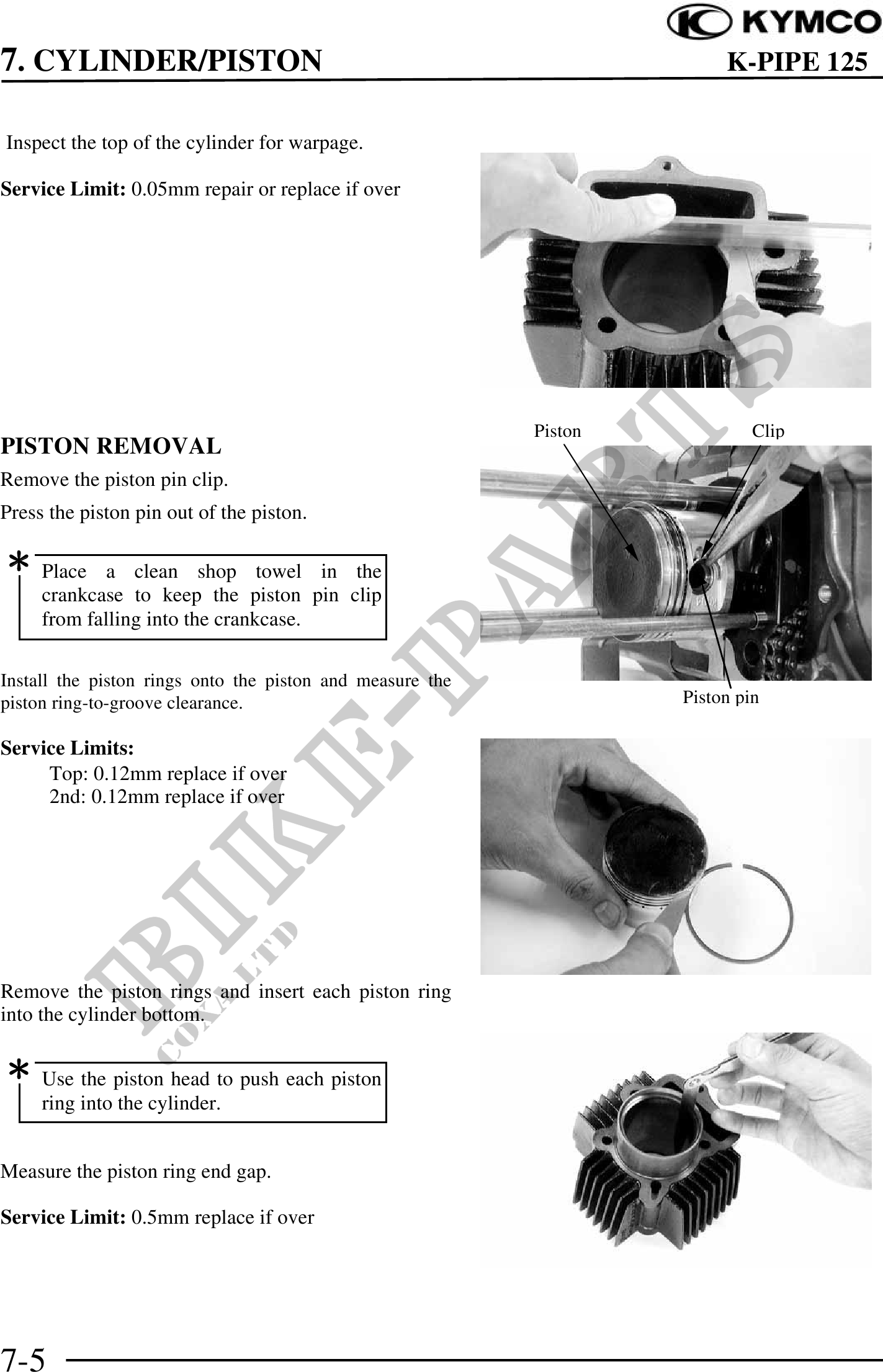

7. CYLINDER/PISTON K-PIPE 125
Inspect the top of the cylinder for warpage.
Service Limit: 0.05mm repair or replace if over
Piston Clip
PISTON REMOVAL
Remove the piston pin clip.
Press the piston pin out of the piston.
Place a clean shop towel in the
crankcase to keep the piston pin clip
from falling into the crankcase.
Install the piston rings onto the piston and measure the
piston ring-to-groove clearance. Piston pin
Service Limits:
Top: 0.12mm replace if over
2nd: 0.12mm replace if over
Remove the piston rings and insert each piston ring
into the cylinder bottom.
Use the piston head to push each piston
ring into the cylinder.
Measure the piston ring end gap.
Service Limit: 0.5mm replace if over
7-5
