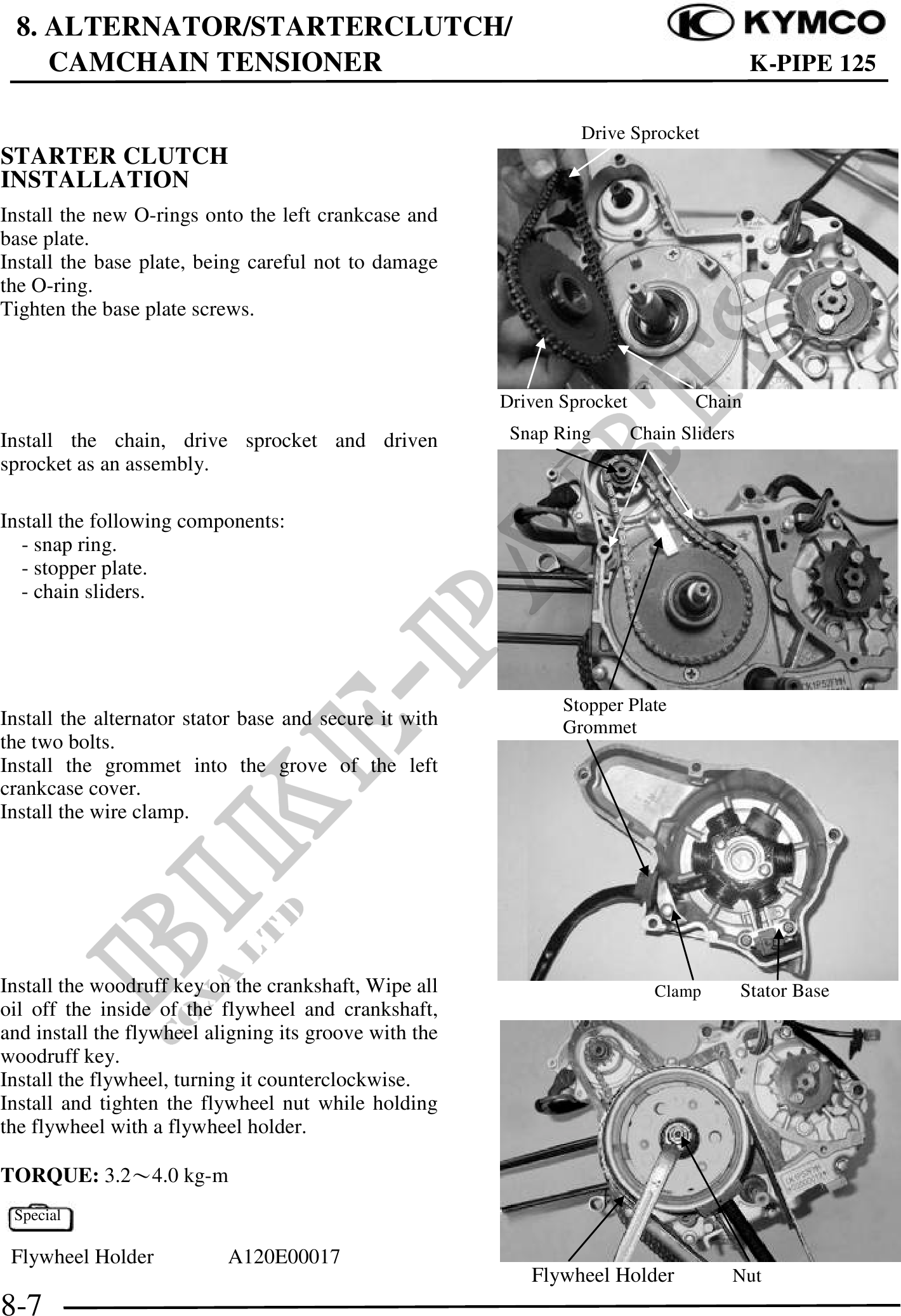

8. ALTERNATOR/STARTERCLUTCH/
CAMCHAIN TENSIONER K-PIPE 125
Drive Sprocket
STARTER CLUTCH
INSTALLATION
Install the new O-rings onto the left crankcase and
base plate.
Install the base plate, being careful not to damage
the O-ring.
Tighten the base plate screws.
Driven Sprocket Chain
Install the chain, drive sprocket and driven Snap Ring Chain Sliders
sprocket as an assembly.
Install the following components:
- snap ring.
- stopper plate.
- chain sliders.
Stopper Plate
Install the alternator stator base and secure it with Grommet
the two bolts.
Install the grommet into the grove of the left
crankcase cover.
Install the wire clamp.
Install the woodruff key on the crankshaft, Wipe all Clamp Stator Base
oil off the inside of the flywheel and crankshaft,
and install the flywheel aligning its groove with the
woodruff key.
Install the flywheel, turning it counterclockwise.
Install and tighten the flywheel nut while holding
the flywheel with a flywheel holder.
TORQUE: 3.24.0 kg-m
Special
Flywheel Holder A120E00017
Flywheel Holder Nut
