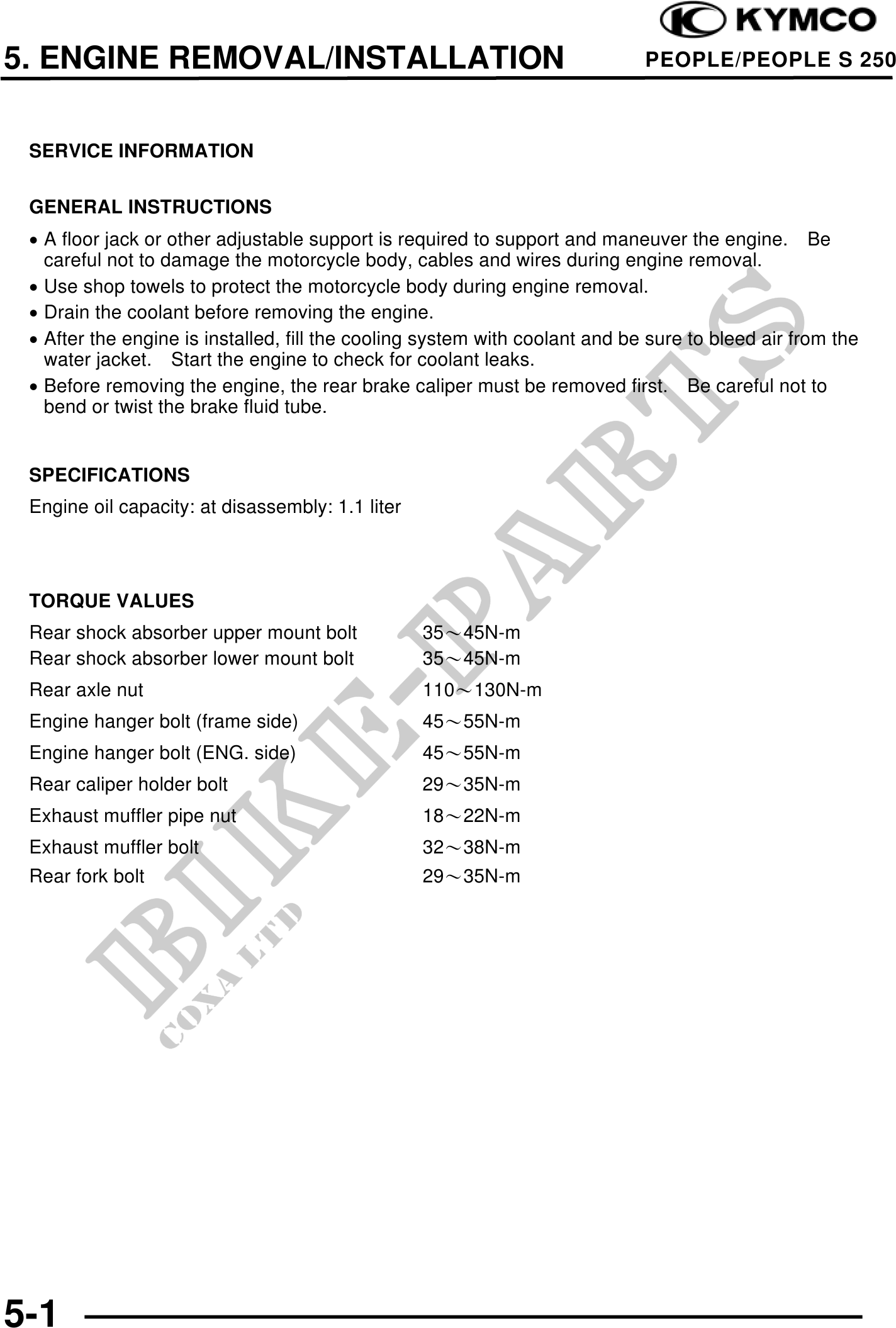

          5. ENGINE REMOVAL/INSTALLATION                                               PEOPLE/PEOPLE S 250



 SERVICE INFORMATION

 GENERAL INSTRUCTIONS
 · A floor jack or other adjustable support is required to support and maneuver the engine. Be
   careful not to damage the motorcycle body, cables and wires during engine removal.
 · Use shop towels to protect the motorcycle body during engine removal.
 · Drain the coolant before removing the engine.
 · After the engine is installed, fill the cooling system with coolant and be sure to bleed air from the
   water jacket. Start the engine to check for coolant leaks.
 · Before removing the engine, the rear brake caliper must be removed first. Be careful not to
   bend or twist the brake fluid tube.


 SPECIFICATIONS
 Engine oil capacity: at disassembly: 1.1 liter



 TORQUE VALUES
 Rear shock absorber upper mount bolt             3545N-m
 Rear shock absorber lower mount bolt             3545N-m
 Rear axle nut                                    110130N-m
 Engine hanger bolt (frame side)                  4555N-m
 Engine hanger bolt (ENG. side)                   4555N-m
 Rear caliper holder bolt                         2935N-m
 Exhaust muffler pipe nut                         1822N-m
 Exhaust muffler bolt                             3238N-m
 Rear fork bolt                                   2935N-m




5-1
