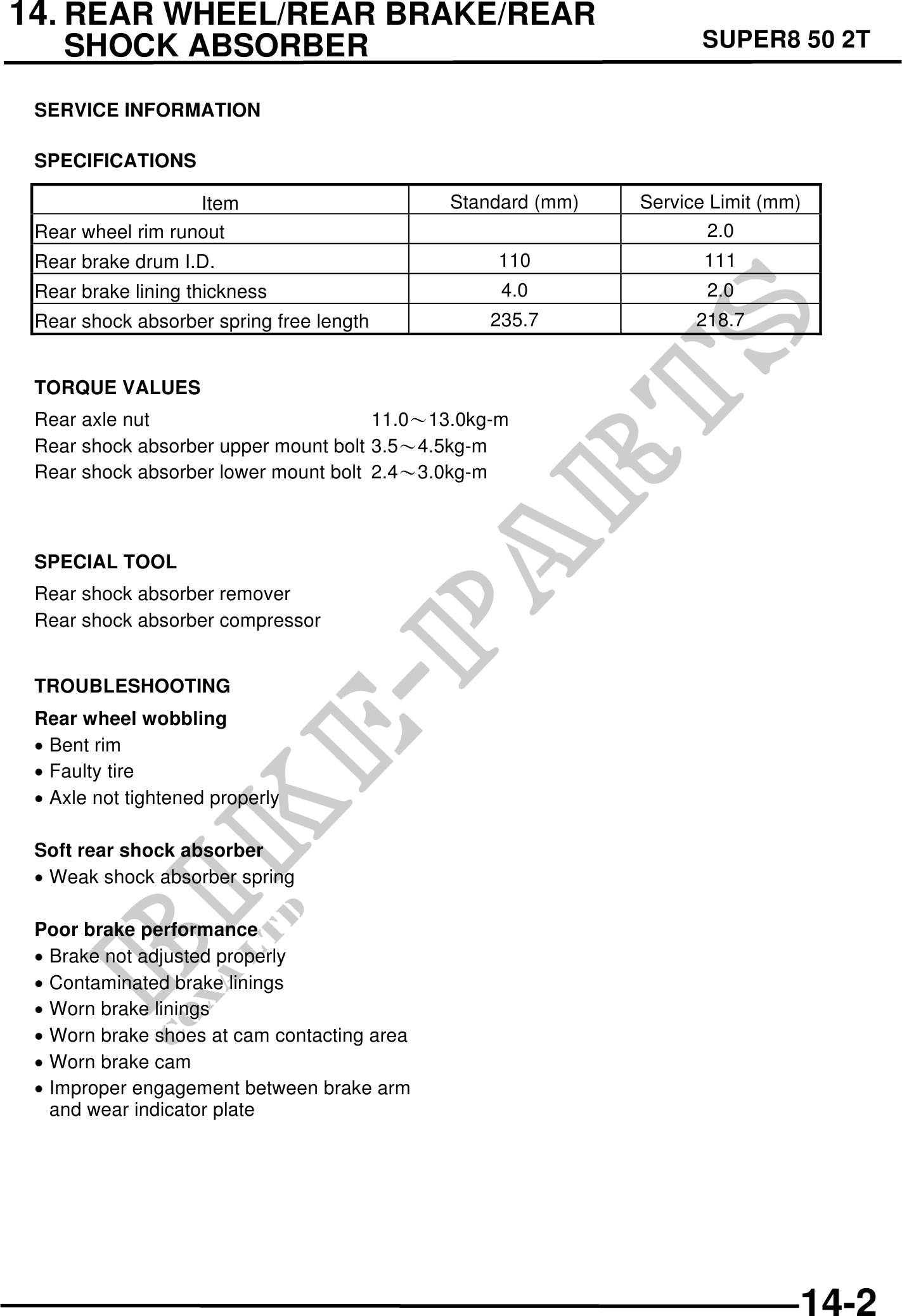

          14. REAR WHEEL/REAR BRAKE/REAR
    SHOCK ABSORBER                                                 SUPER8 50 2T

 SERVICE INFORMATION

 SPECIFICATIONS

                   Item                      Standard (mm)   Service Limit (mm)
 Rear wheel rim runout                                               2.0
 Rear brake drum I.D.                            110                111
 Rear brake lining thickness                      4.0               2.0
 Rear shock absorber spring free length          235.7             218.7


 TORQUE VALUES
 Rear axle nut                        11.013.0kg-m
 Rear shock absorber upper mount bolt 3.54.5kg-m
 Rear shock absorber lower mount bolt 2.43.0kg-m



 SPECIAL TOOL
 Rear shock absorber remover
 Rear shock absorber compressor


 TROUBLESHOOTING
 Rear wheel wobbling
 · Bent rim
 · Faulty tire
 · Axle not tightened properly

 Soft rear shock absorber
 · Weak shock absorber spring

 Poor brake performance
 · Brake not adjusted properly
 · Contaminated brake linings
 · Worn brake linings
 · Worn brake shoes at cam contacting area
 · Worn brake cam
 · Improper engagement between brake arm
   and wear indicator plate
