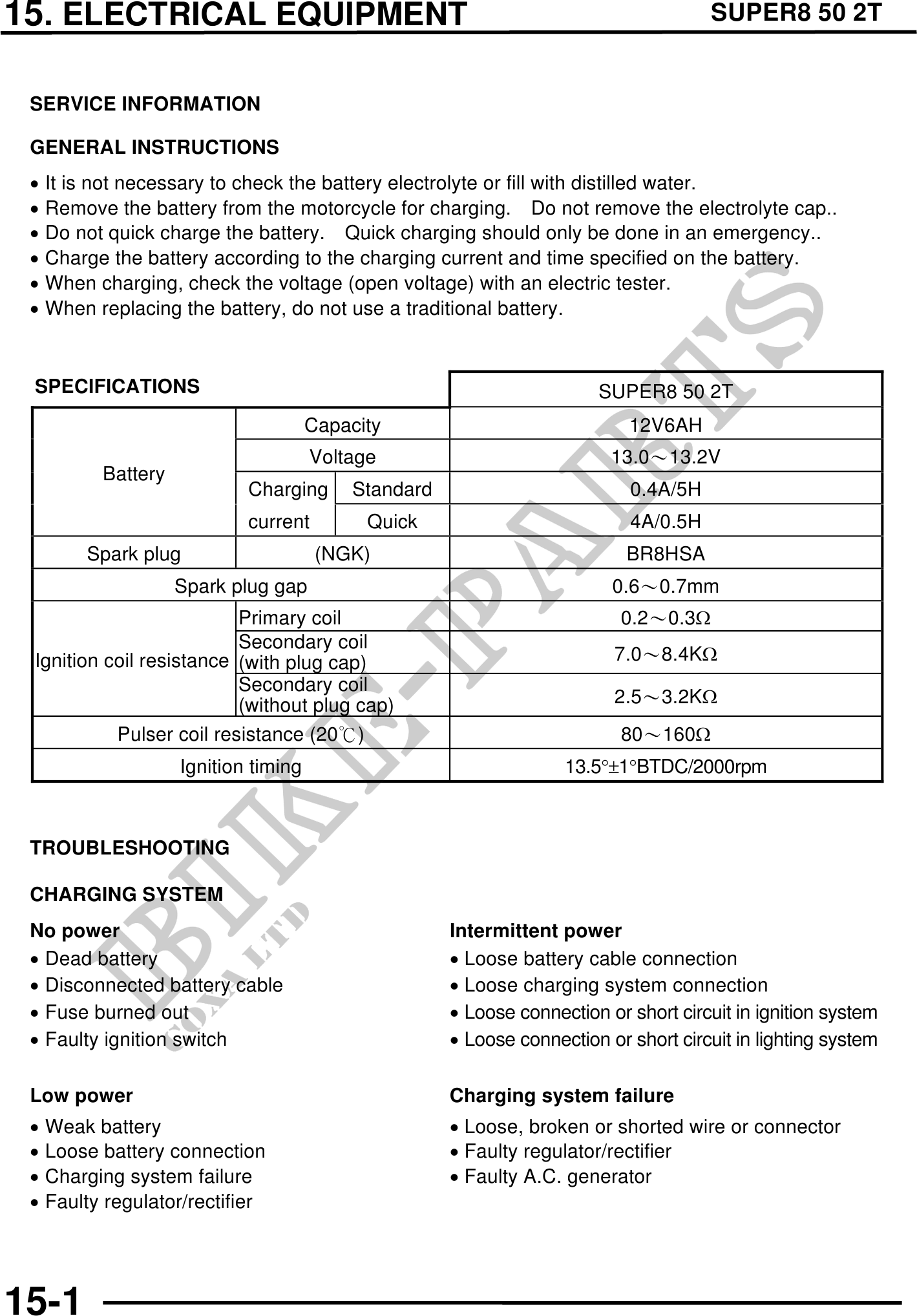

          15. ELECTRICAL EQUIPMENT                                                               SUPER8 50 2T


 SERVICE INFORMATION

 GENERAL INSTRUCTIONS
 ·   It is not necessary to check the battery electrolyte or fill with distilled water.
 ·   Remove the battery from the motorcycle for charging. Do not remove the electrolyte cap..
 ·   Do not quick charge the battery. Quick charging should only be done in an emergency..
 ·   Charge the battery according to the charging current and time specified on the battery.
 ·   When charging, check the voltage (open voltage) with an electric tester.
 ·   When replacing the battery, do not use a traditional battery.


 SPECIFICATIONS                                                          SUPER8 50 2T
                                       Capacity                              12V6AH
                                       Voltage                             13.013.2V
           Battery
                             Charging       Standard                         0.4A/5H
                             current         Quick                           4A/0.5H
         Spark plug                     (NGK)                                BR8HSA
                     Spark plug gap                                        0.60.7mm
                          Primary coil                                      0.20.3
                          Secondary coil
 Ignition coil resistance (with plug cap)                                  7.08.4K
                          Secondary coil
                          (without plug cap)                               2.53.2K
           Pulser coil resistance (20)                                      80160
                     Ignition timing                                 13.5°1°BTDC/2000rpm



 TROUBLESHOOTING

 CHARGING SYSTEM
 No power                                              Intermittent power
 · Dead battery                                        · Loose battery cable connection
 · Disconnected battery cable                          · Loose charging system connection
 · Fuse burned out                                     · Loose connection or short circuit in ignition system
 · Faulty ignition switch                              · Loose connection or short circuit in lighting system

 Low power                                             Charging system failure
 ·   Weak battery                                      · Loose, broken or shorted wire or connector
 ·   Loose battery connection                          · Faulty regulator/rectifier
 ·   Charging system failure                           · Faulty A.C. generator
 ·   Faulty regulator/rectifier




15-1
