          15. ELECTRICAL EQUIPMENT                                              SUPER8 50 2T

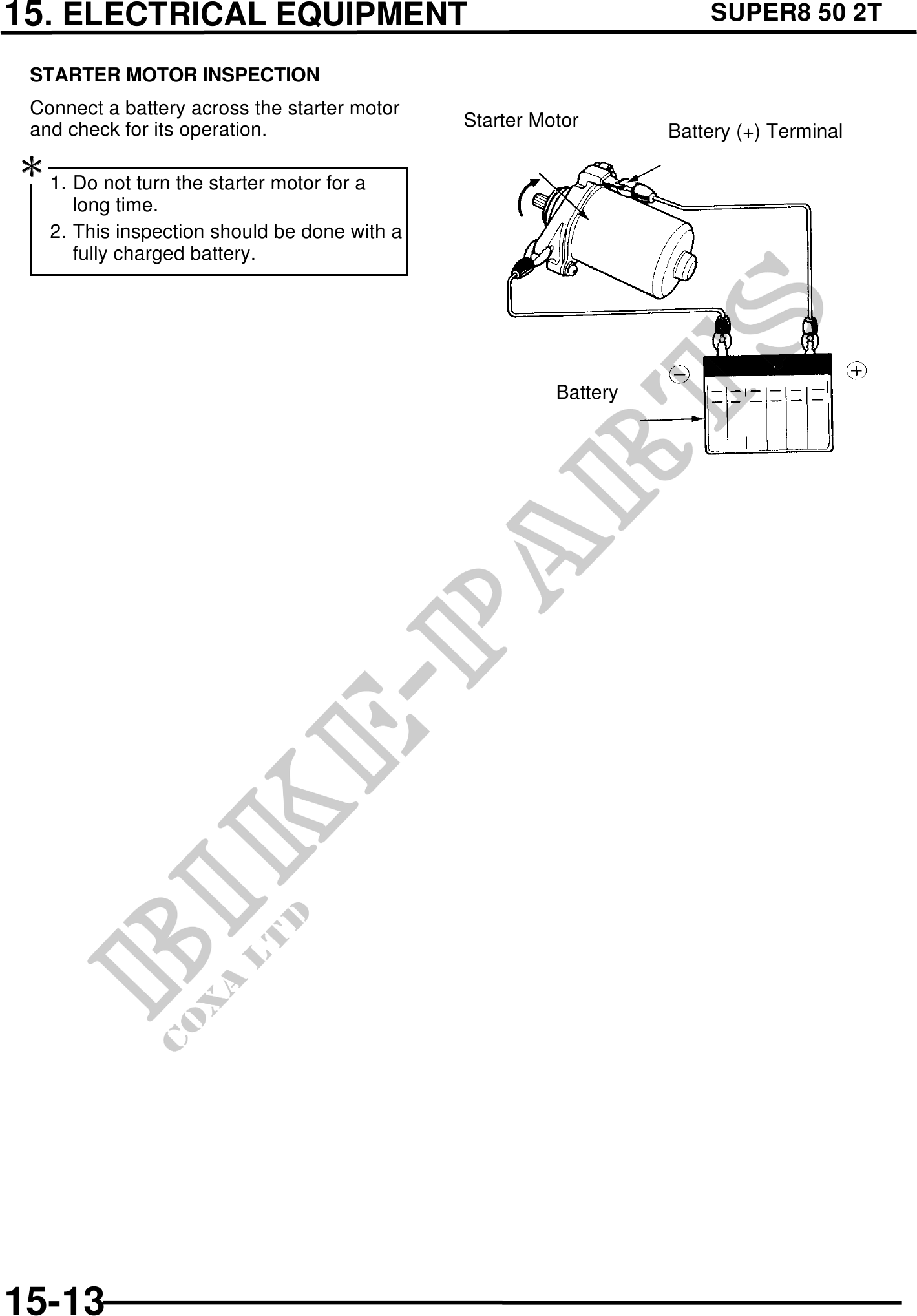

 STARTER MOTOR INSPECTION
 Connect a battery across the starter motor
 and check for its operation.                 Starter Motor
                                                                  Battery (+) Terminal
 1. Do not turn the starter motor for a
      long time.
   2. This inspection should be done with a
      fully charged battery.




                                                        Battery




15-13
