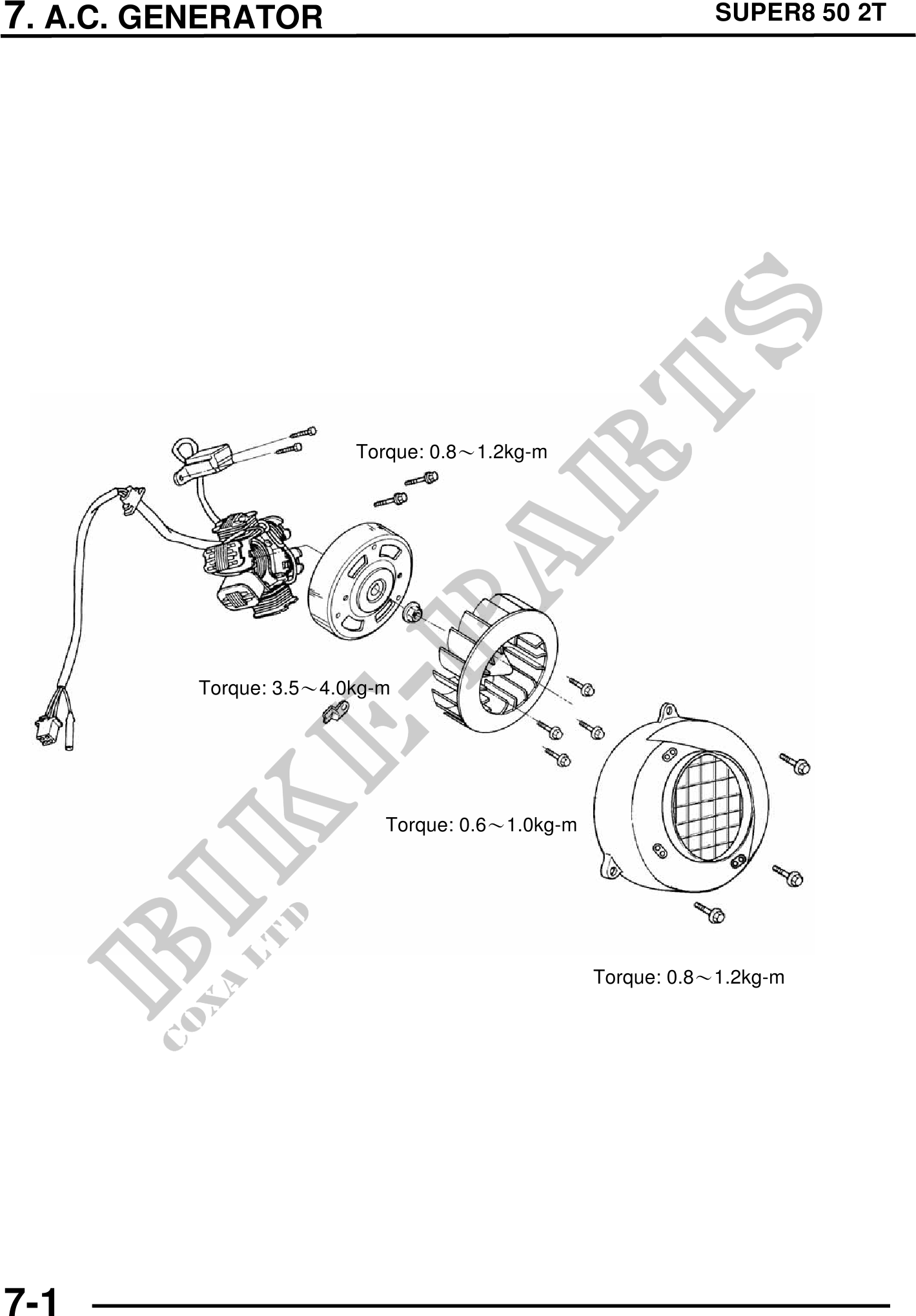

          7. A.C. GENERATOR                                          SUPER8 50 2T




                        Torque: 0.81.2kg-m




          Torque: 3.54.0kg-m




                           Torque: 0.61.0kg-m




                                                Torque: 0.81.2kg-m




7-1
