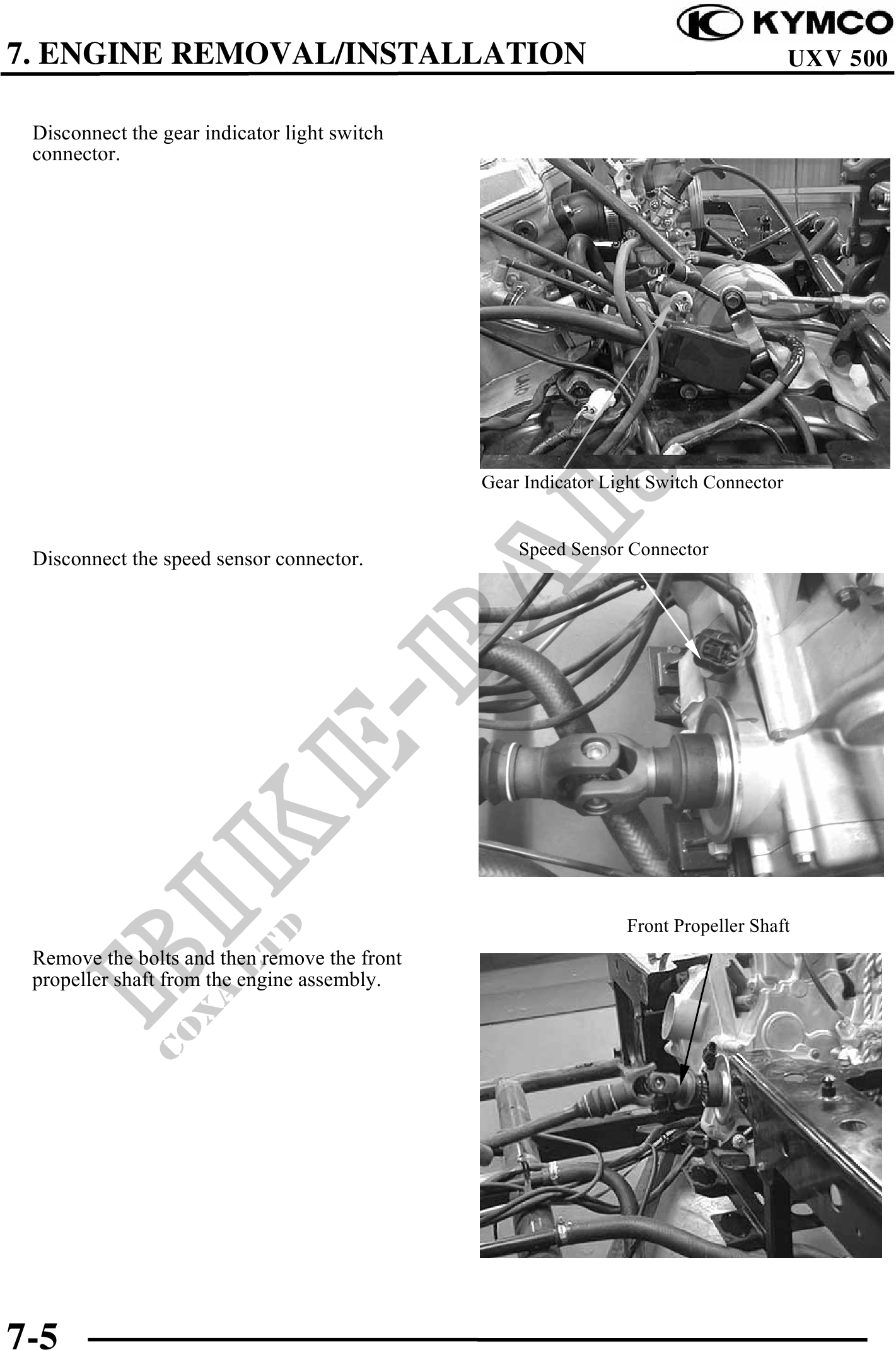

          7. ENGINE REMOVAL/INSTALLATION                                                        UXV 500

 Disconnect the gear indicator light switch
 connector.




                                              Gear Indicator Light Switch Connector


                                                  Speed Sensor Connector
 Disconnect the speed sensor connector.




                                                               Front Propeller Shaft
 Remove the bolts and then remove the front
 propeller shaft from the engine assembly.
