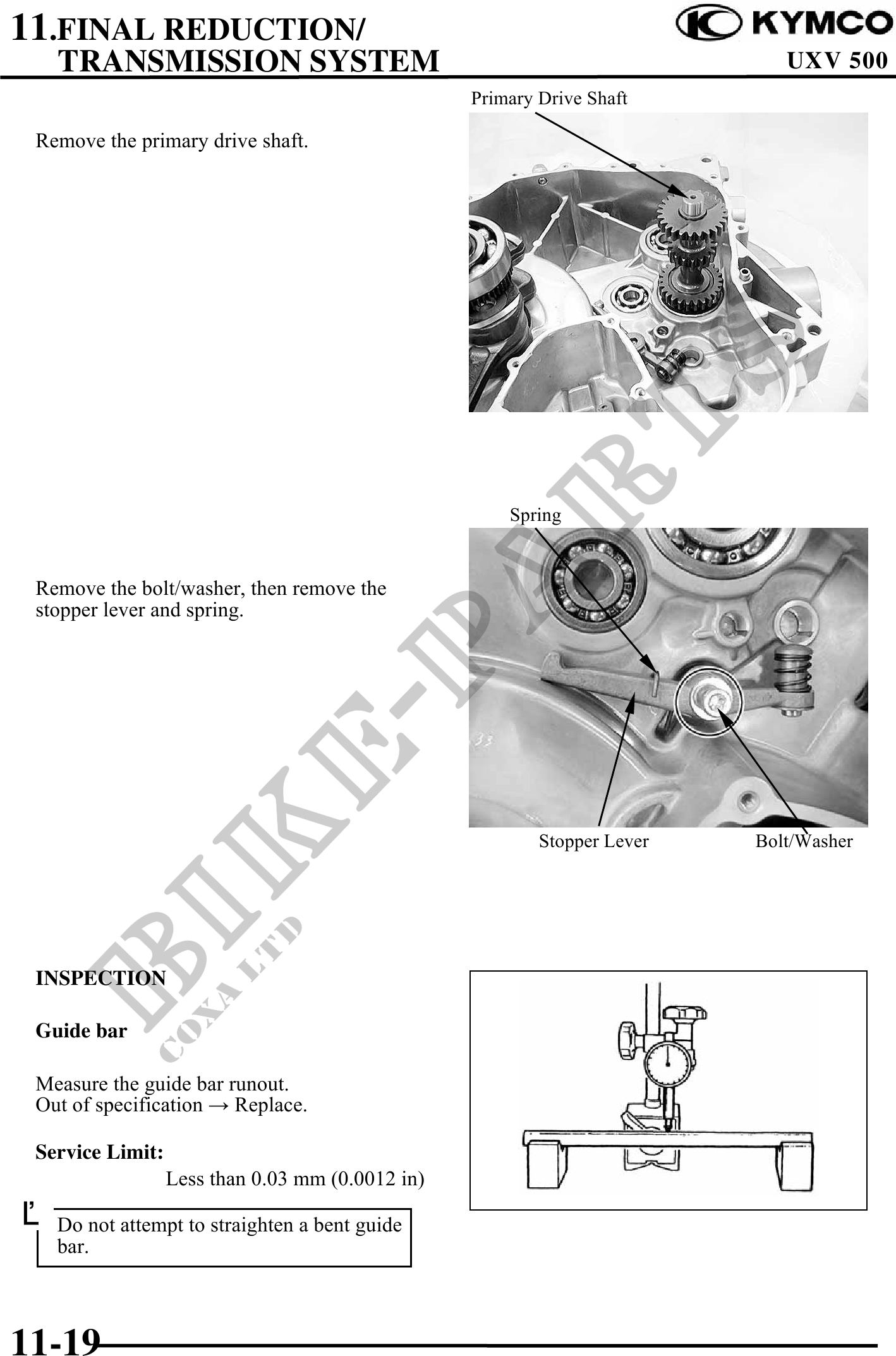

11.FINAL REDUCTION/
TRANSMISSION SYSTEM UXV 500
Primary Drive Shaft
Remove the primary drive shaft.
Spring
Remove the bolt/washer, then remove the
stopper lever and spring.
Stopper Lever Bolt/Washer
INSPECTION
Guide bar
Measure the guide bar runout.
Out of specification Replace.
Service Limit:
Less than 0.03 mm (0.0012 in)
Do not attempt to straighten a bent guide
bar.
11-19
