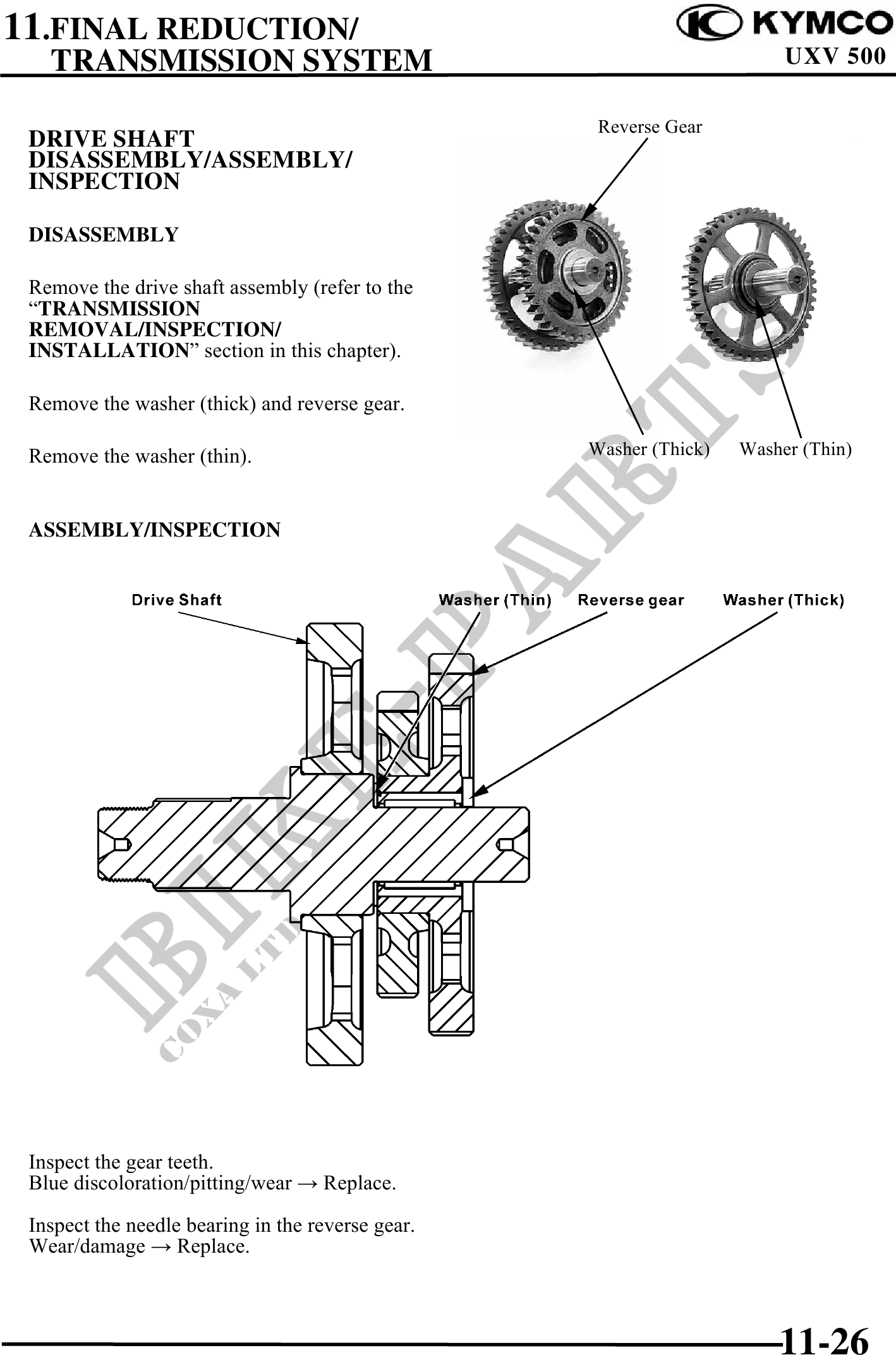

11.FINAL REDUCTION/
TRANSMISSION SYSTEM UXV 500
Reverse Gear
DRIVE SHAFT
DISASSEMBLY/ASSEMBLY/
INSPECTION
DISASSEMBLY
Remove the drive shaft assembly (refer to the
"TRANSMISSION
REMOVAL/INSPECTION/
INSTALLATION" section in this chapter).
Remove the washer (thick) and reverse gear.
Remove the washer (thin). Washer (Thick) Washer (Thin)
ASSEMBLY/INSPECTION
Inspect the gear teeth.
Blue discoloration/pitting/wear Replace.
Inspect the needle bearing in the reverse gear.
Wear/damage Replace.
11-26
