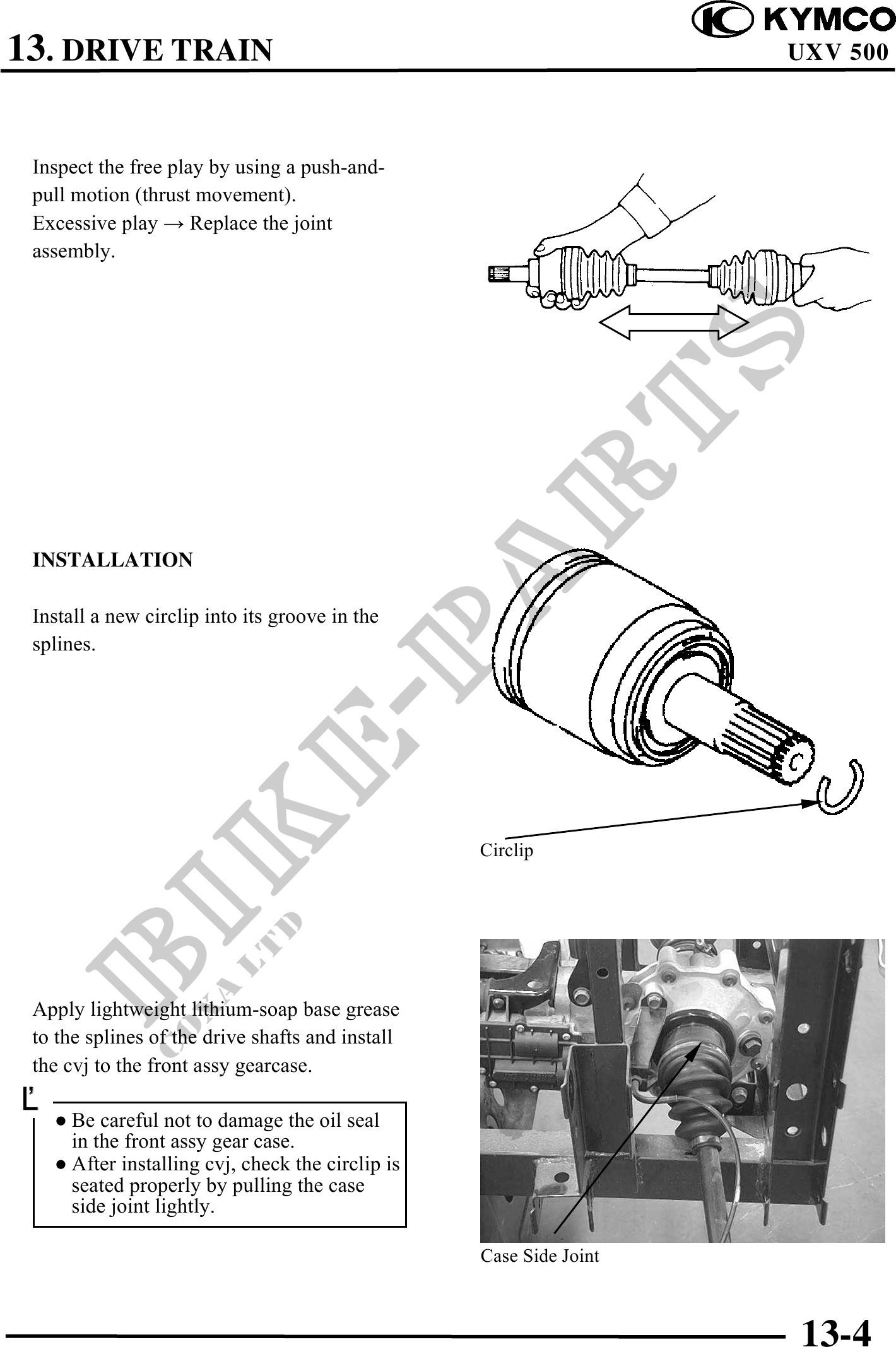

13. DRIVE TRAIN UXV 500
Inspect the free play by using a push-and-
pull motion (thrust movement).
Excessive play Replace the joint
assembly.
INSTALLATION
Install a new circlip into its groove in the
splines.
Circlip
Apply lightweight lithium-soap base grease
to the splines of the drive shafts and install
the cvj to the front assy gearcase.
Be careful not to damage the oil seal
in the front assy gear case.
After installing cvj, check the circlip is
seated properly by pulling the case
side joint lightly.
Case Side Joint
13-4
