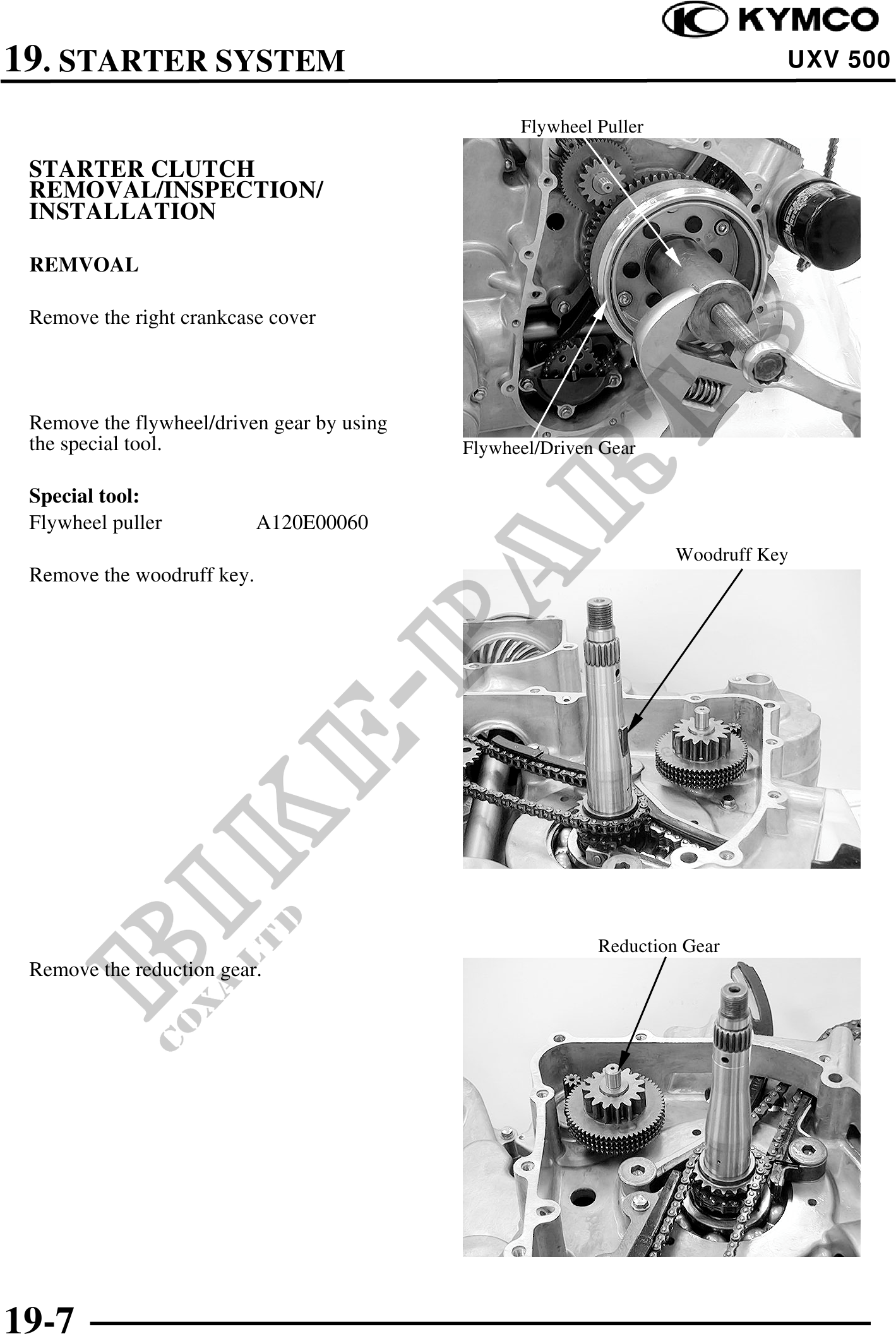

          19. STARTER SYSTEM                                                             UXV 500

                                                  Flywheel Puller

 STARTER CLUTCH
 REMOVAL/INSPECTION/
 INSTALLATION

 REMVOAL

 Remove the right crankcase cover




 Remove the flywheel/driven gear by using
 the special tool.                          Flywheel/Driven Gear

 Special tool:
 Flywheel puller            A120E00060
                                                                    Woodruff Key
 Remove the woodruff key.




                                                           Reduction Gear
 Remove the reduction gear.
