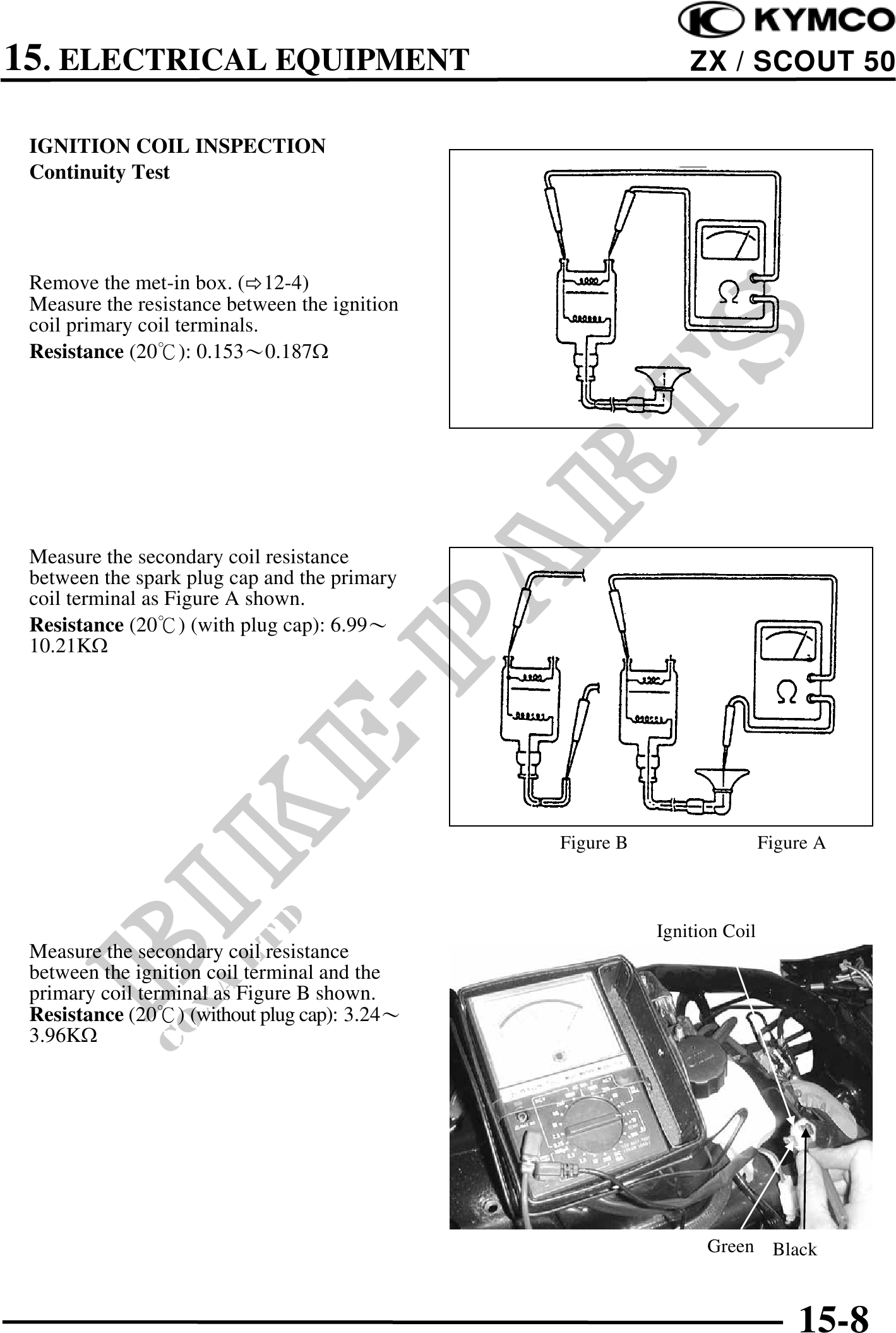

15. ELECTRICAL EQUIPMENT ZX / SCOUT 50
IGNITION COIL INSPECTION
Continuity Test
Remove the met-in box. ( 12-4)
Measure the resistance between the ignition
coil primary coil terminals.
Resistance (20): 0.1530.187
Measure the secondary coil resistance
between the spark plug cap and the primary
coil terminal as Figure A shown.
Resistance (20) (with plug cap): 6.99
10.21K
Figure B Figure A
Ignition Coil
Measure the secondary coil resistance
between the ignition coil terminal and the
primary coil terminal as Figure B shown.
Resistance (20) (without plug cap): 3.24
3.96K
Green Black
15-8
