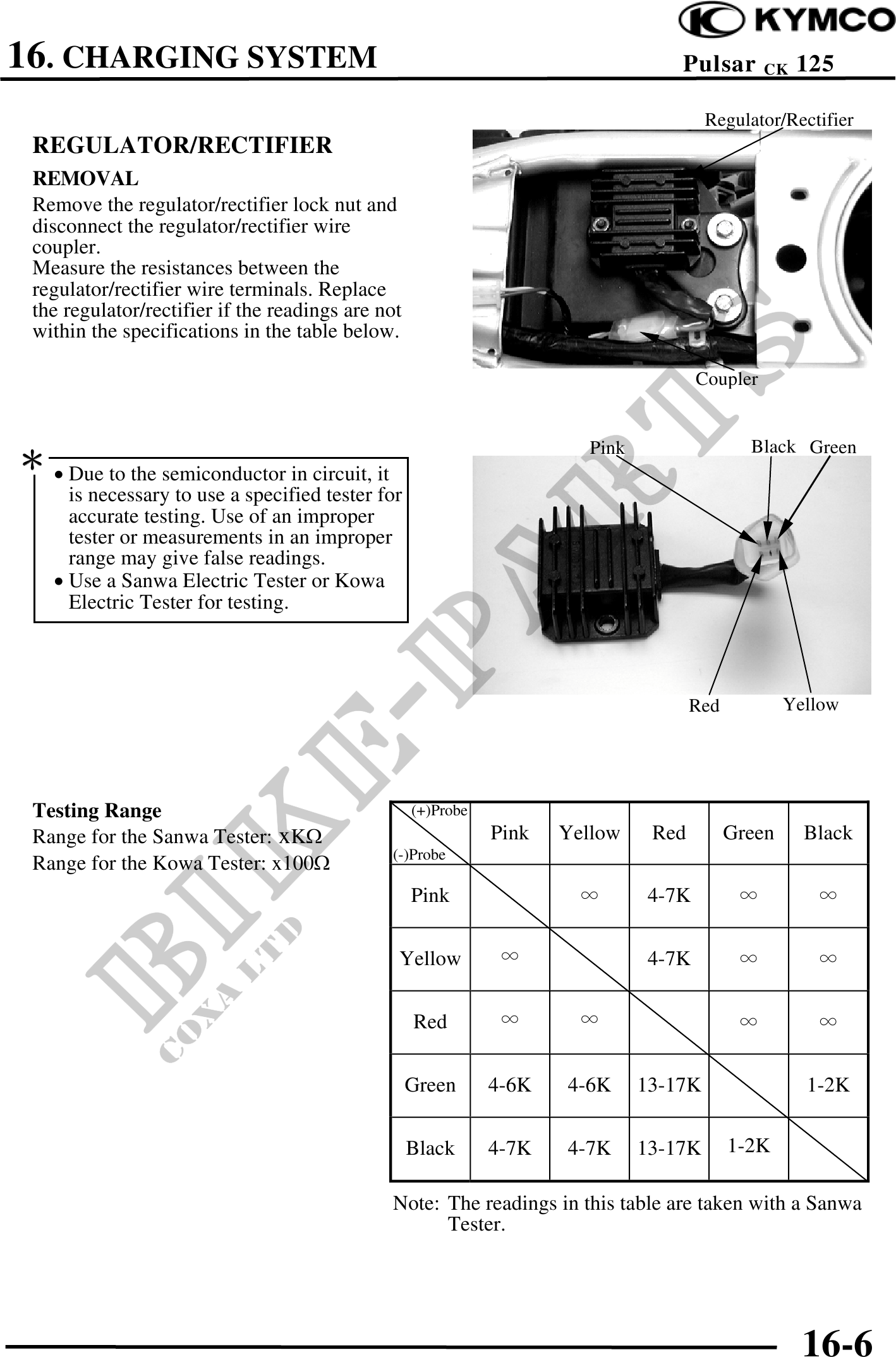

16. CHARGING SYSTEM Pulsar CK 125
Regulator/Rectifier
REGULATOR/RECTIFIER
REMOVAL
Remove the regulator/rectifier lock nut and
disconnect the regulator/rectifier wire
coupler.
Measure the resistances between the
regulator/rectifier wire terminals. Replace
the regulator/rectifier if the readings are not
within the specifications in the table below.
Coupler
Pink Black Green
· Due to the semiconductor in circuit, it
is necessary to use a specified tester for
accurate testing. Use of an improper
tester or measurements in an improper
range may give false readings.
· Use a Sanwa Electric Tester or Kowa
Electric Tester for testing.
Red Yellow
Testing Range (+)Probe
Range for the Sanwa Tester: xK Pink Yellow Red Green Black
(-)Probe
Range for the Kowa Tester: x100
Pink 4-7K
Yellow 4-7K
Red
Green 4-6K 4-6K 13-17K 1-2K
Black 4-7K 4-7K 13-17K 1-2K
Note: The readings in this table are taken with a Sanwa
Tester.
16-6
