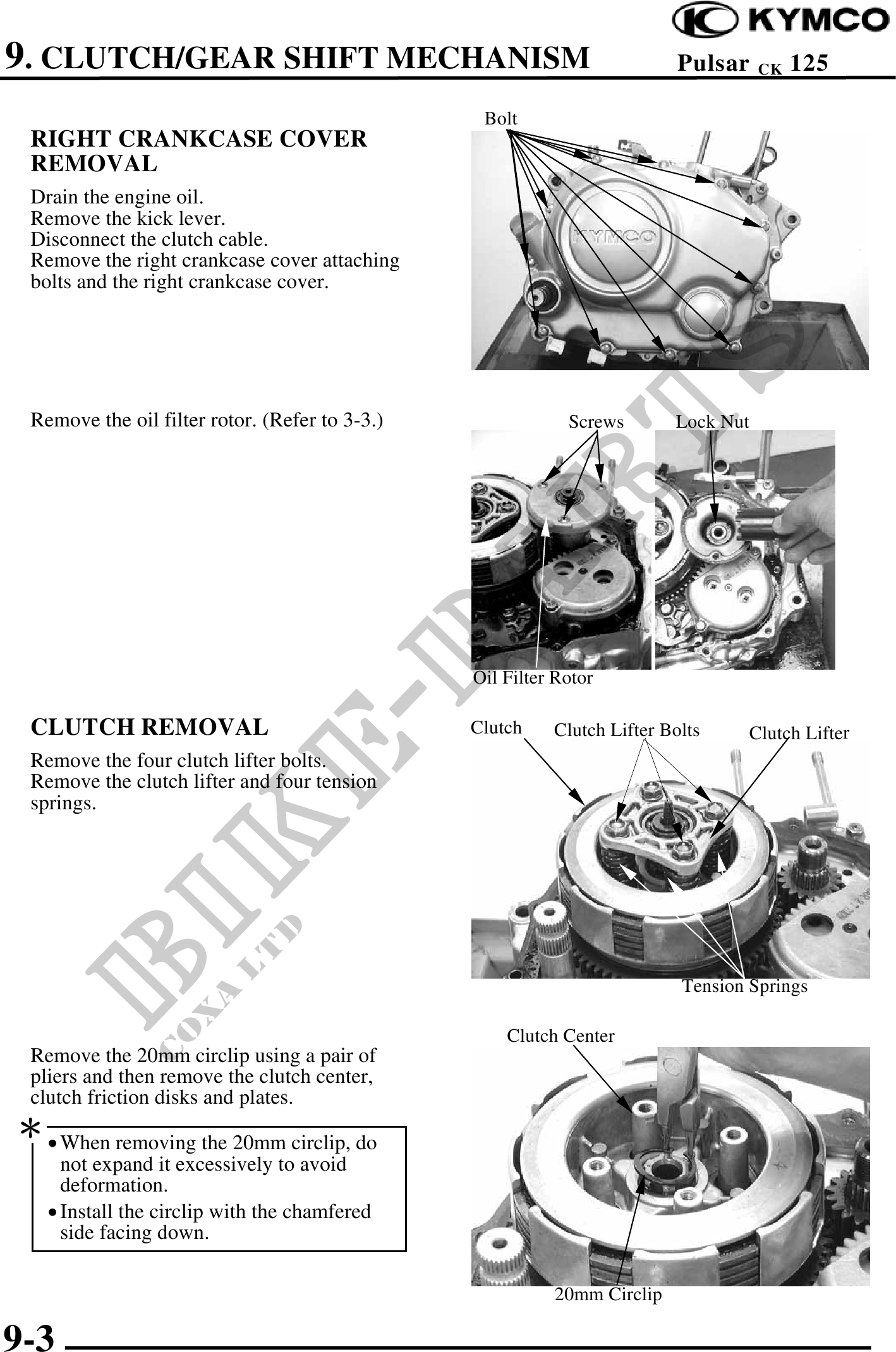

          9. CLUTCH/GEAR SHIFT MECHANISM                                            Pulsar    CK   125

                                                 Bolt
 RIGHT CRANKCASE COVER
 REMOVAL
 Drain the engine oil.
 Remove the kick lever.
 Disconnect the clutch cable.
 Remove the right crankcase cover attaching
 bolts and the right crankcase cover.




 Remove the oil filter rotor. (Refer to 3-3.)               Screws       Lock Nut




                                                Oil Filter Rotor

 CLUTCH REMOVAL                                 Clutch    Clutch Lifter Bolts     Clutch Lifter
 Remove the four clutch lifter bolts.
 Remove the clutch lifter and four tension
 springs.




                                                                          Tension Springs

                                                    Clutch Center
 Remove the 20mm circlip using a pair of
 pliers and then remove the clutch center,
 clutch friction disks and plates.
 · When removing the 20mm circlip, do
     not expand it excessively to avoid
     deformation.
   · Install the circlip with the chamfered
     side facing down.

                                                          20mm Circlip

9-3
