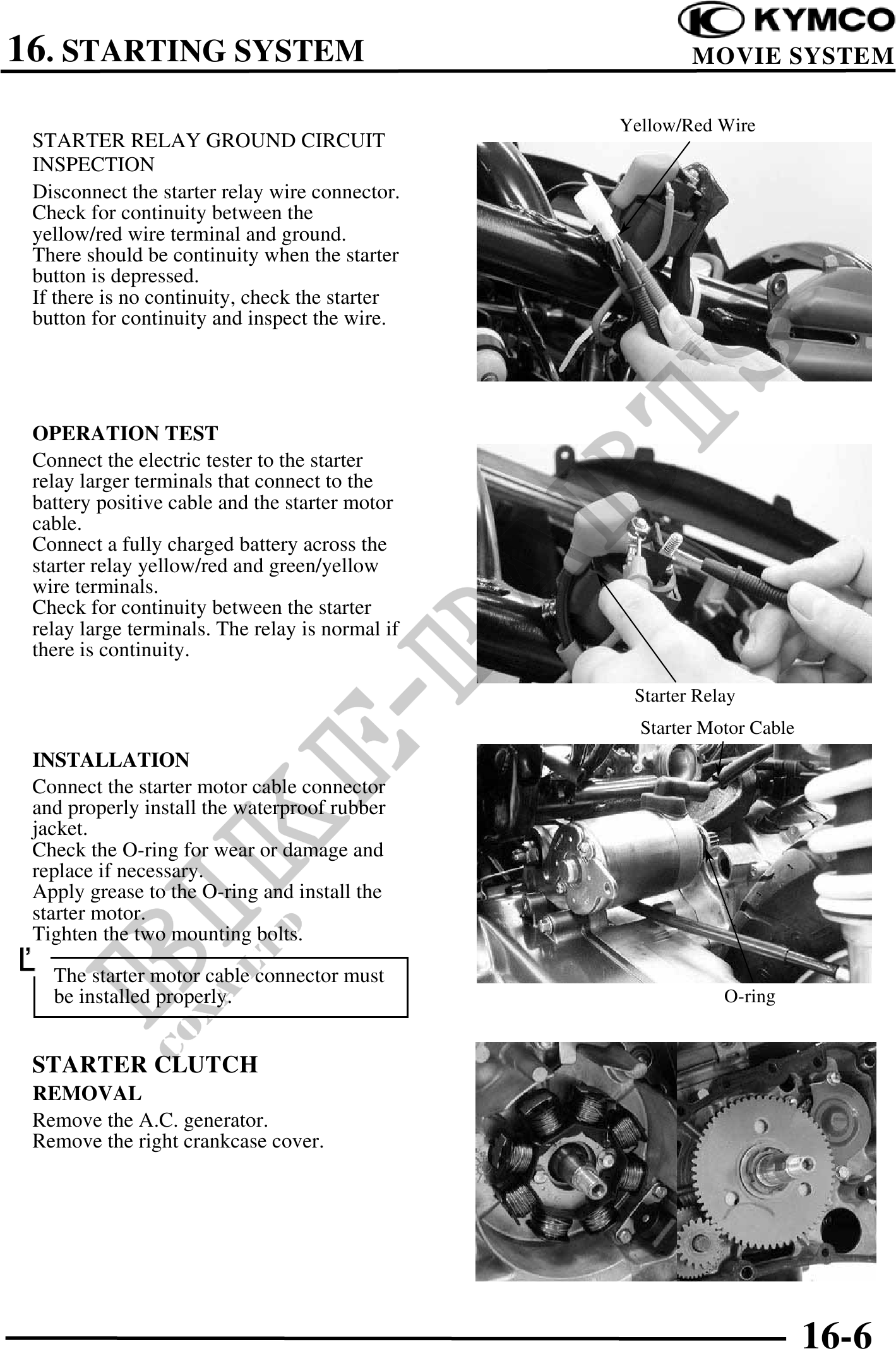

          16. STARTING SYSTEM                                      MOVIE SYSTEM

                                                 Yellow/Red Wire
 STARTER RELAY GROUND CIRCUIT
 INSPECTION
 Disconnect the starter relay wire connector.
 Check for continuity between the
 yellow/red wire terminal and ground.
 There should be continuity when the starter
 button is depressed.
 If there is no continuity, check the starter
 button for continuity and inspect the wire.




 OPERATION TEST
 Connect the electric tester to the starter
 relay larger terminals that connect to the
 battery positive cable and the starter motor
 cable.
 Connect a fully charged battery across the
 starter relay yellow/red and green/yellow
 wire terminals.
 Check for continuity between the starter
 relay large terminals. The relay is normal if
 there is continuity.

                                                  Starter Relay
                                                   Starter Motor Cable
 INSTALLATION
 Connect the starter motor cable connector
 and properly install the waterproof rubber
 jacket.
 Check the O-ring for wear or damage and
 replace if necessary.
 Apply grease to the O-ring and install the
 starter motor.
 Tighten the two mounting bolts.
 The starter motor cable connector must
   be installed properly.                                    O-ring


 STARTER CLUTCH
 REMOVAL
 Remove the A.C. generator.
 Remove the right crankcase cover.




                                                                         16-6
