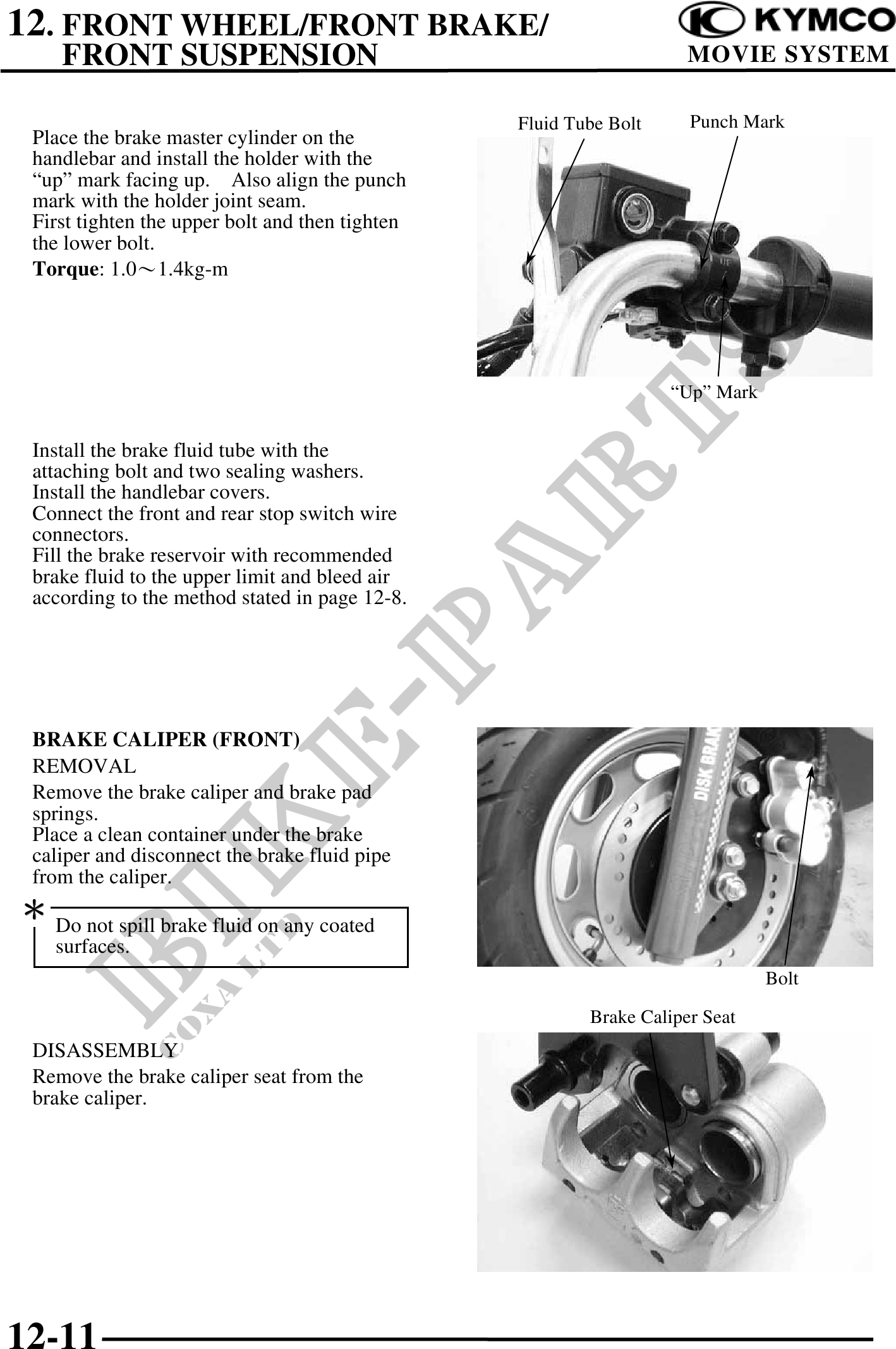

          12. FRONT WHEEL/FRONT BRAKE/
    FRONT SUSPENSION                                                 MOVIE SYSTEM

                                                 Fluid Tube Bolt     Punch Mark
 Place the brake master cylinder on the
 handlebar and install the holder with the
 "up" mark facing up. Also align the punch
 mark with the holder joint seam.
 First tighten the upper bolt and then tighten
 the lower bolt.
 Torque: 1.01.4kg-m




                                                                   "Up" Mark


 Install the brake fluid tube with the
 attaching bolt and two sealing washers.
 Install the handlebar covers.
 Connect the front and rear stop switch wire
 connectors.
 Fill the brake reservoir with recommended
 brake fluid to the upper limit and bleed air
 according to the method stated in page 12-8.




 BRAKE CALIPER (FRONT)
 REMOVAL
 Remove the brake caliper and brake pad
 springs.
 Place a clean container under the brake
 caliper and disconnect the brake fluid pipe
 from the caliper.
 Do not spill brake fluid on any coated
    surfaces.
                                                                               Bolt

                                                         Brake Caliper Seat
 DISASSEMBLY
 Remove the brake caliper seat from the
 brake caliper.




12-11
