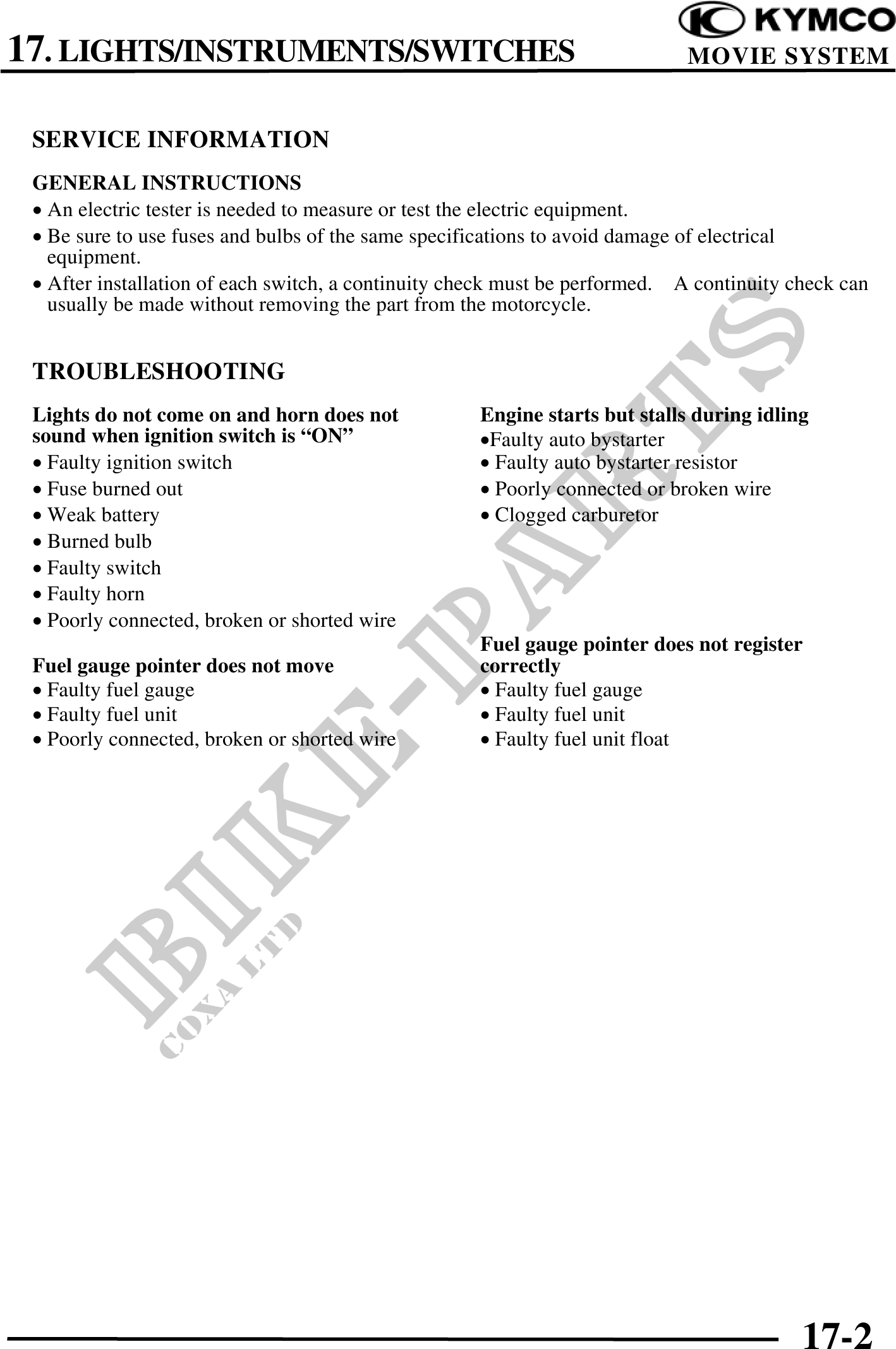

          17. LIGHTS/INSTRUMENTS/SWITCHES                                              MOVIE SYSTEM


 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · An electric tester is needed to measure or test the electric equipment.
 · Be sure to use fuses and bulbs of the same specifications to avoid damage of electrical
   equipment.
 · After installation of each switch, a continuity check must be performed. A continuity check can
   usually be made without removing the part from the motorcycle.


 TROUBLESHOOTING
 Lights do not come on and horn does not            Engine starts but stalls during idling
 sound when ignition switch is "ON"                 ·Faulty auto bystarter
 · Faulty ignition switch                           · Faulty auto bystarter resistor
 · Fuse burned out                                  · Poorly connected or broken wire
 · Weak battery                                     · Clogged carburetor
 · Burned bulb
 · Faulty switch
 · Faulty horn
 · Poorly connected, broken or shorted wire
                                                    Fuel gauge pointer does not register
 Fuel gauge pointer does not move                   correctly
 · Faulty fuel gauge                                · Faulty fuel gauge
 · Faulty fuel unit                                 · Faulty fuel unit
 · Poorly connected, broken or shorted wire         · Faulty fuel unit float




                                                                                          17-2
