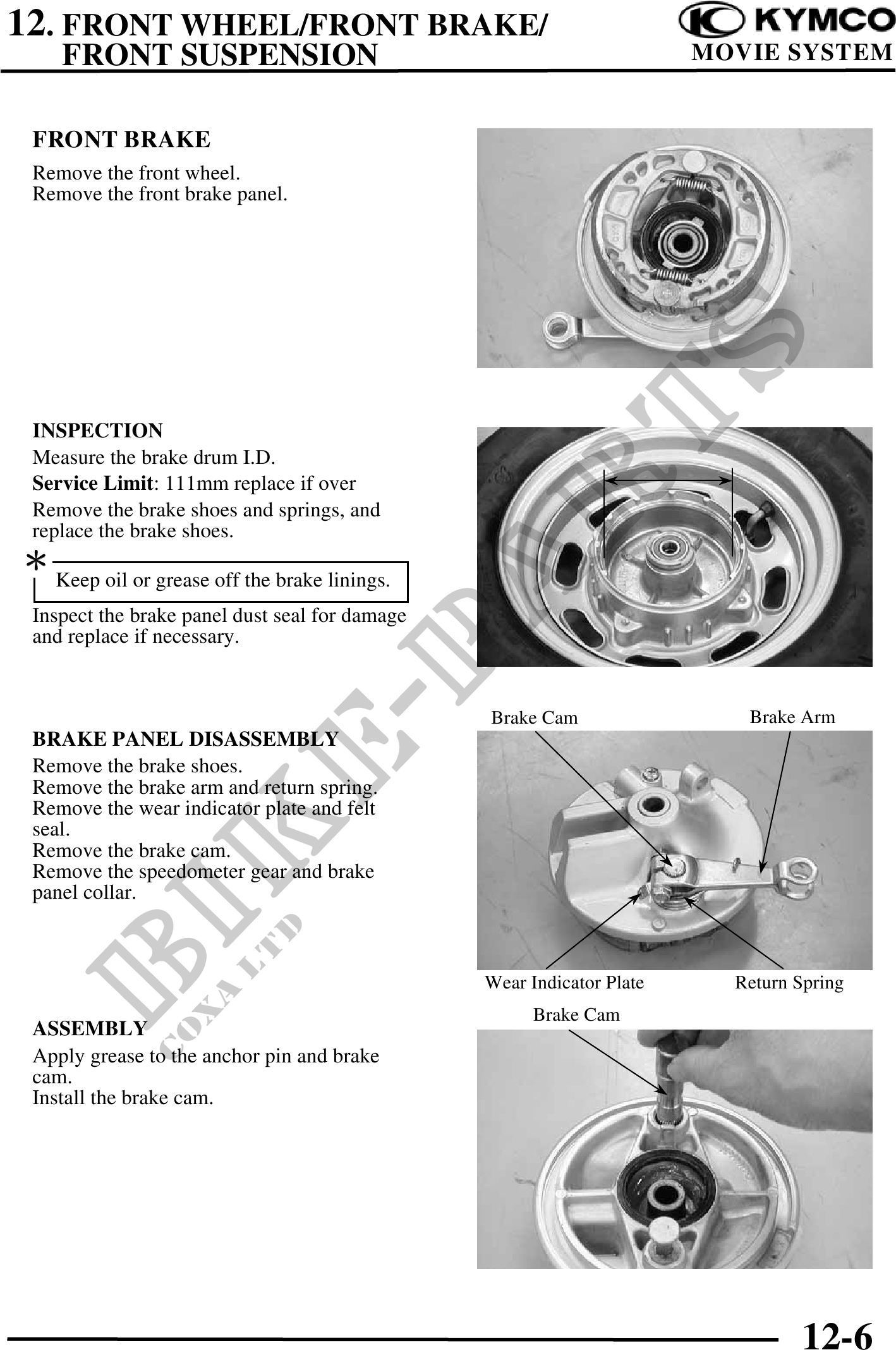

12. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION MOVIE SYSTEM
FRONT BRAKE
Remove the front wheel.
Remove the front brake panel.
INSPECTION
Measure the brake drum I.D.
Service Limit: 111mm replace if over
Remove the brake shoes and springs, and
replace the brake shoes.
Keep oil or grease off the brake linings.
Inspect the brake panel dust seal for damage
and replace if necessary.
Brake Cam Brake Arm
BRAKE PANEL DISASSEMBLY
Remove the brake shoes.
Remove the brake arm and return spring.
Remove the wear indicator plate and felt
seal.
Remove the brake cam.
Remove the speedometer gear and brake
panel collar.
Wear Indicator Plate Return Spring
Brake Cam
ASSEMBLY
Apply grease to the anchor pin and brake
cam.
Install the brake cam.
