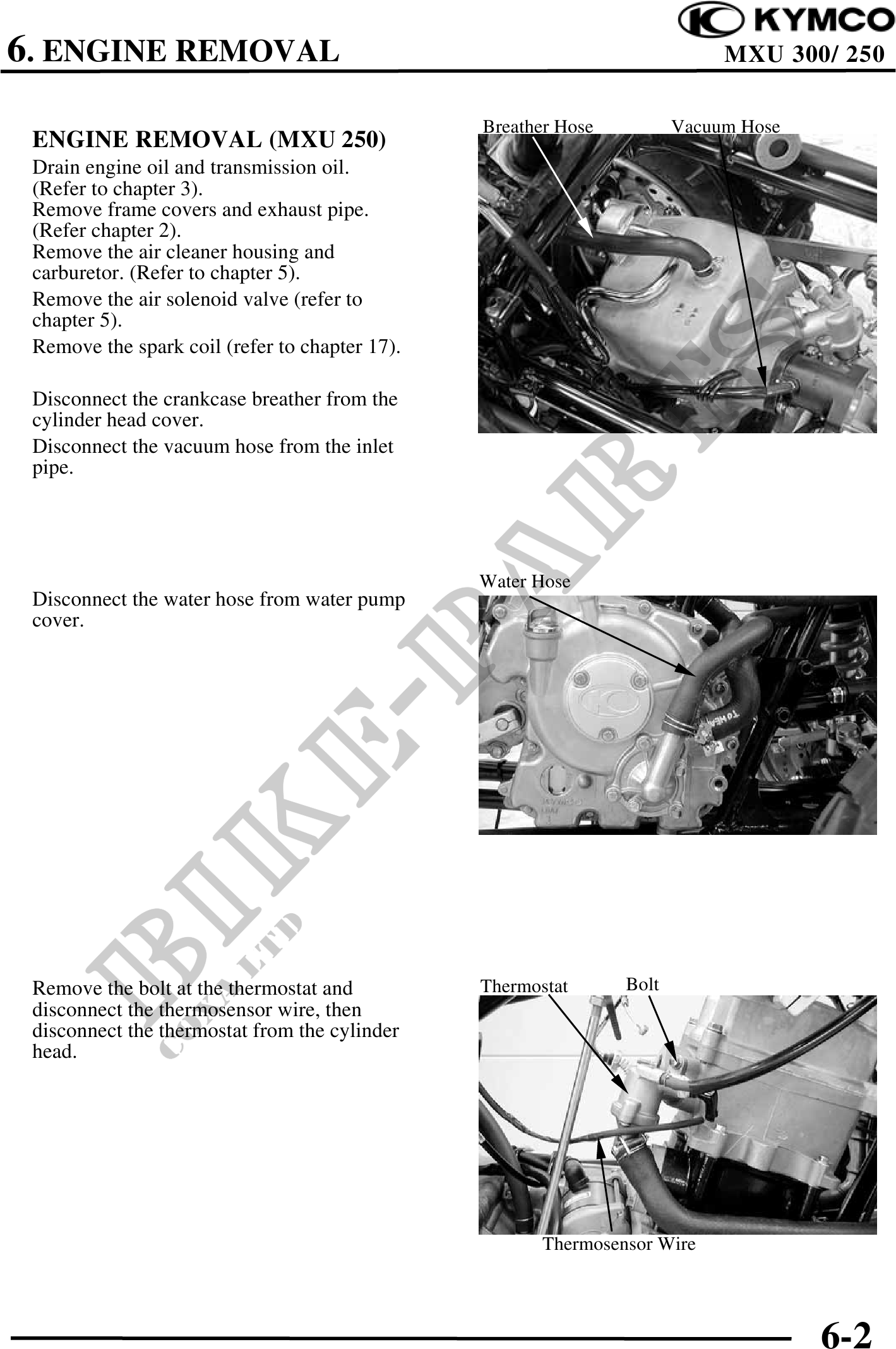

          6. ENGINE REMOVAL                                                           MXU 300/ 250

                                                Breather Hose          Vacuum Hose
 ENGINE REMOVAL (MXU 250)
 Drain engine oil and transmission oil.
 (Refer to chapter 3).
 Remove frame covers and exhaust pipe.
 (Refer chapter 2).
 Remove the air cleaner housing and
 carburetor. (Refer to chapter 5).
 Remove the air solenoid valve (refer to
 chapter 5).
 Remove the spark coil (refer to chapter 17).

 Disconnect the crankcase breather from the
 cylinder head cover.
 Disconnect the vacuum hose from the inlet
 pipe.




                                                Water Hose
 Disconnect the water hose from water pump
 cover.




 Remove the bolt at the thermostat and          Thermostat      Bolt
 disconnect the thermosensor wire, then
 disconnect the thermostat from the cylinder
 head.




                                                       Thermosensor Wire




                                                                                     6-2
