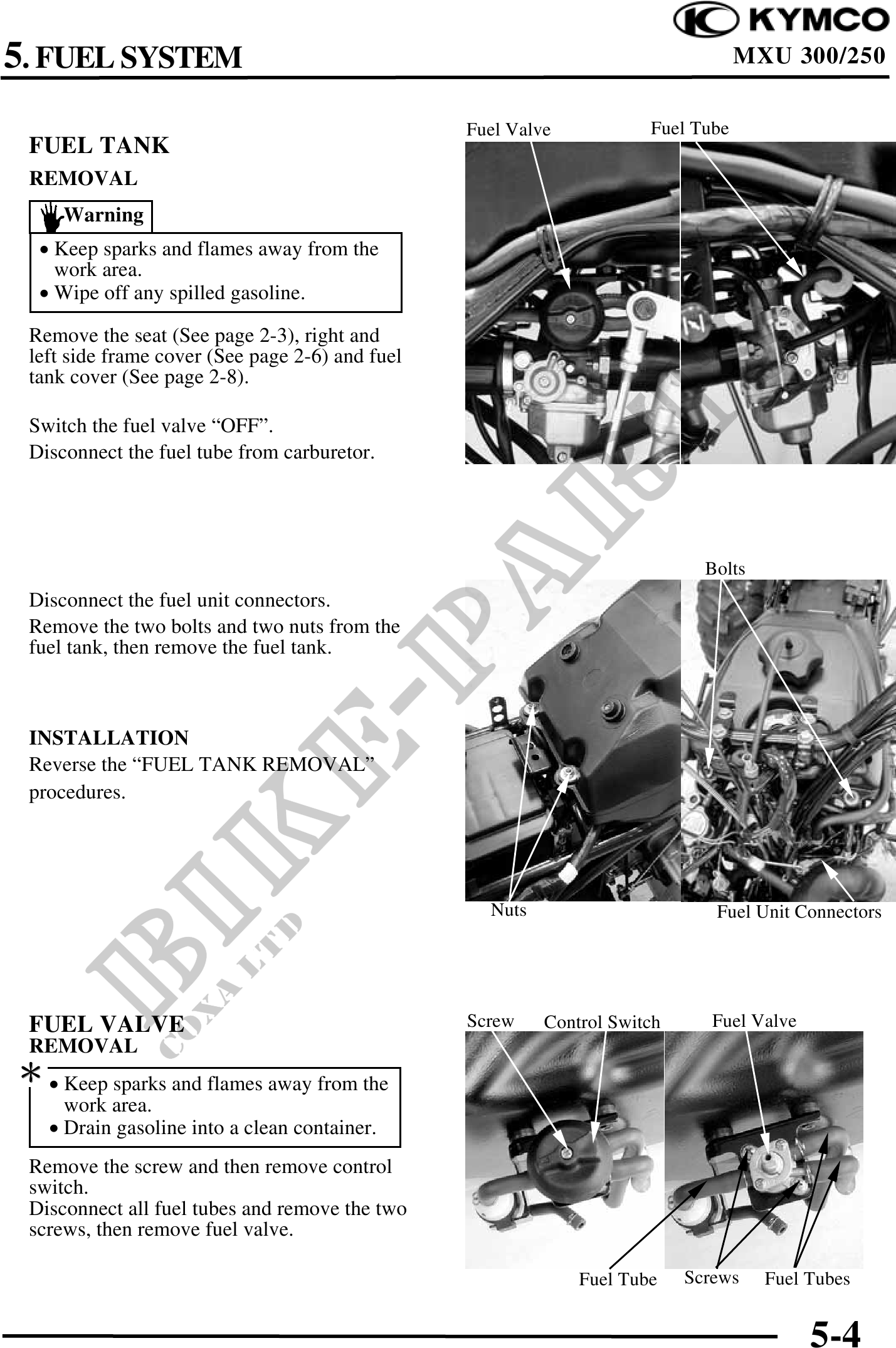

5. FUEL SYSTEM MXU 300/250
Fuel Valve Fuel Tube
FUEL TANK
REMOVAL
Warning
· Keep sparks and flames away from the
work area.
· Wipe off any spilled gasoline.
Remove the seat (See page 2-3), right and
left side frame cover (See page 2-6) and fuel
tank cover (See page 2-8).
Switch the fuel valve "OFF".
Disconnect the fuel tube from carburetor.
Bolts
Disconnect the fuel unit connectors.
Remove the two bolts and two nuts from the
fuel tank, then remove the fuel tank.
INSTALLATION
Reverse the "FUEL TANK REMOVAL"
procedures.
Nuts Fuel Unit Connectors
FUEL VALVE Screw Control Switch Fuel Valve
REMOVAL
· Keep sparks and flames away from the
work area.
· Drain gasoline into a clean container.
Remove the screw and then remove control
switch.
Disconnect all fuel tubes and remove the two
screws, then remove fuel valve.
Fuel Tube Screws Fuel Tubes
5-4
