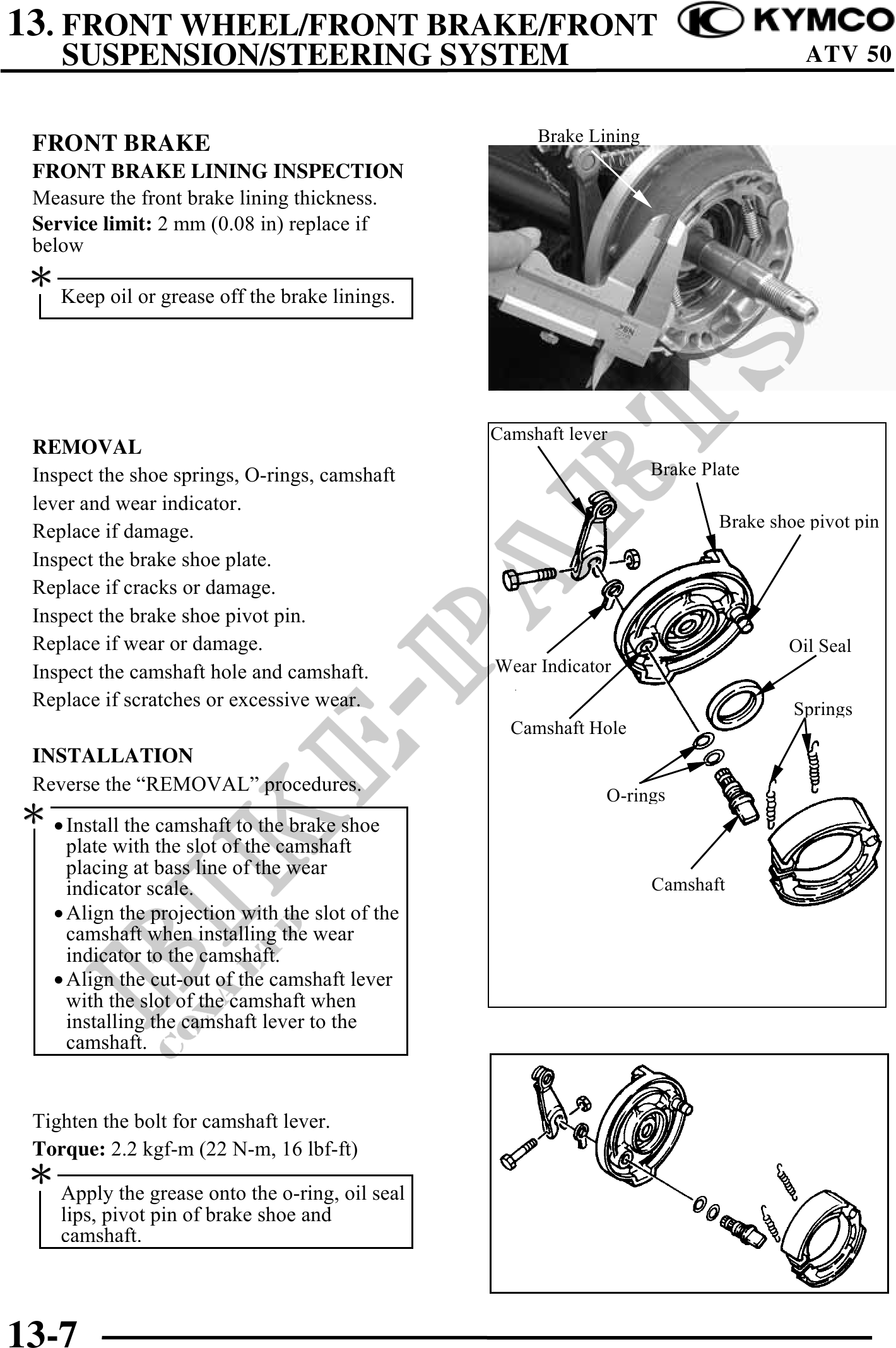

13. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM ATV 50
FRONT BRAKE Brake Lining
FRONT BRAKE LINING INSPECTION
Measure the front brake lining thickness.
Service limit: 2 mm (0.08 in) replace if
below
Keep oil or grease off the brake linings.
Camshaft lever
REMOVAL
Inspect the shoe springs, O-rings, camshaft Brake Plate
lever and wear indicator.
Brake shoe pivot pin
Replace if damage.
Inspect the brake shoe plate.
Replace if cracks or damage.
Inspect the brake shoe pivot pin.
Replace if wear or damage. Oil Seal
Inspect the camshaft hole and camshaft. Wear Indicator
Replace if scratches or excessive wear. Springs
Camshaft Hole
INSTALLATION
Reverse the "REMOVAL" procedures. O-rings
· Install the camshaft to the brake shoe
plate with the slot of the camshaft
placing at bass line of the wear
indicator scale. Camshaft
· Align the projection with the slot of the
camshaft when installing the wear
indicator to the camshaft.
· Align the cut-out of the camshaft lever
with the slot of the camshaft when
installing the camshaft lever to the
camshaft.
Tighten the bolt for camshaft lever.
Torque: 2.2 kgf-m (22 N-m, 16 lbf-ft)
Apply the grease onto the o-ring, oil seal
lips, pivot pin of brake shoe and
camshaft.
13-7
