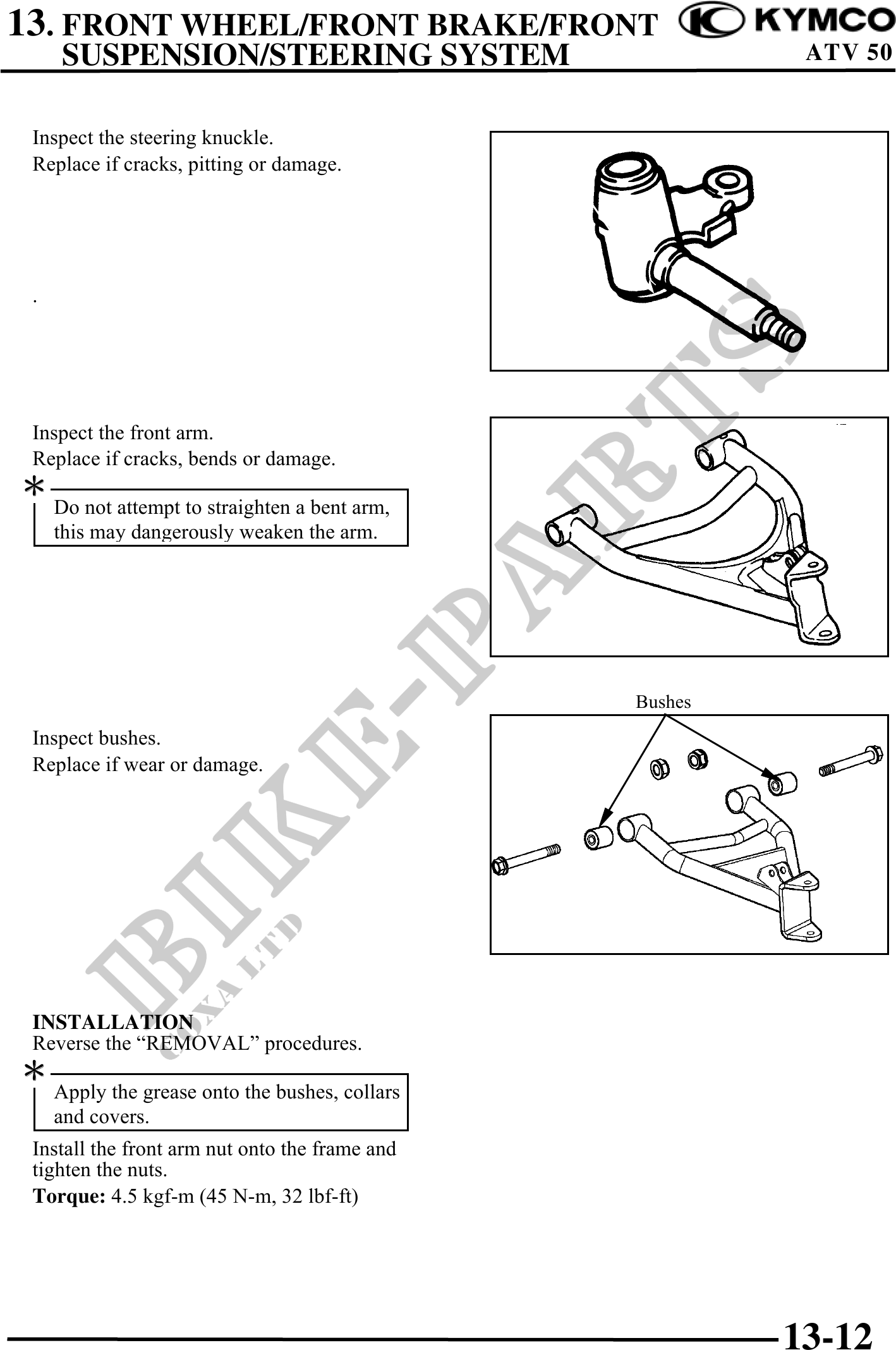

13. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM ATV 50
Inspect the steering knuckle.
Replace if cracks, pitting or damage.
.
Inspect the front arm.
Replace if cracks, bends or damage.
Do not attempt to straighten a bent arm,
this may dangerously weaken the arm.
Bushes
Inspect bushes.
Replace if wear or damage.
INSTALLATION
Reverse the "REMOVAL" procedures.
Apply the grease onto the bushes, collars
and covers.
Install the front arm nut onto the frame and
tighten the nuts.
Torque: 4.5 kgf-m (45 N-m, 32 lbf-ft)
13-12
